Description

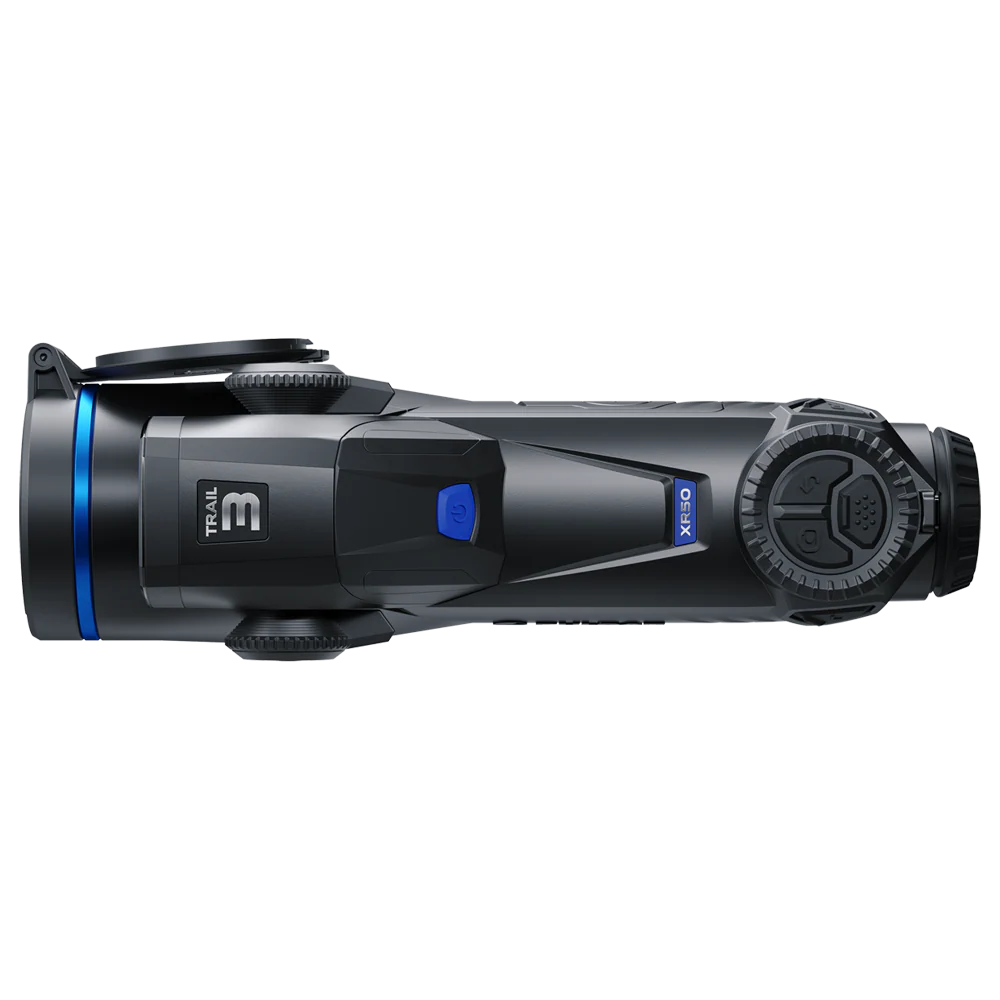

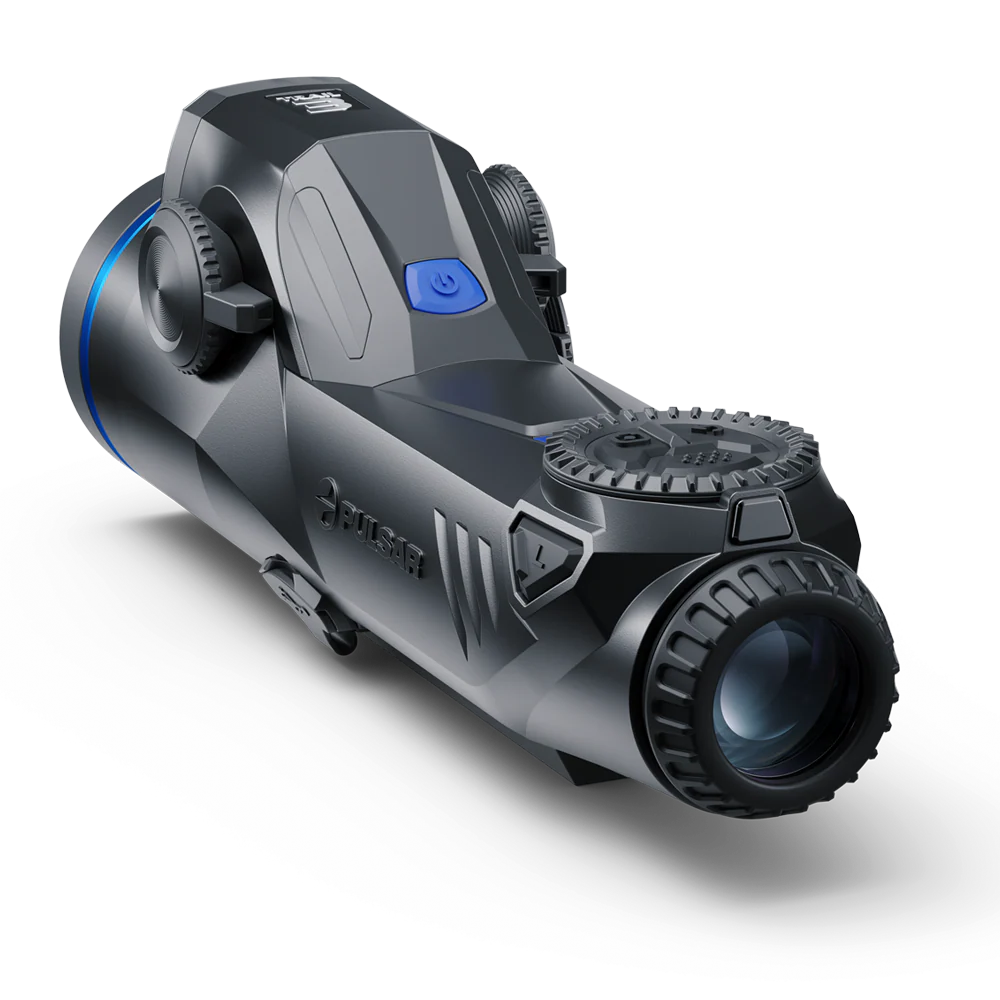

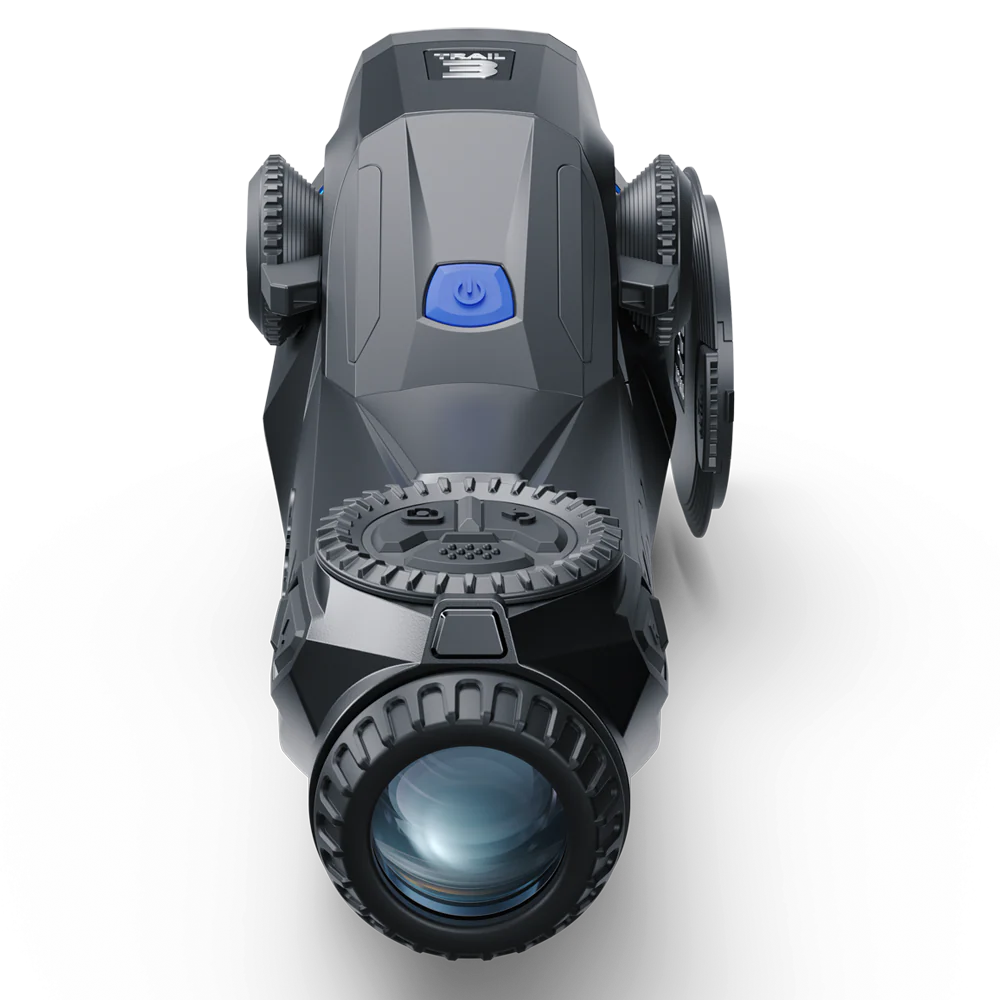

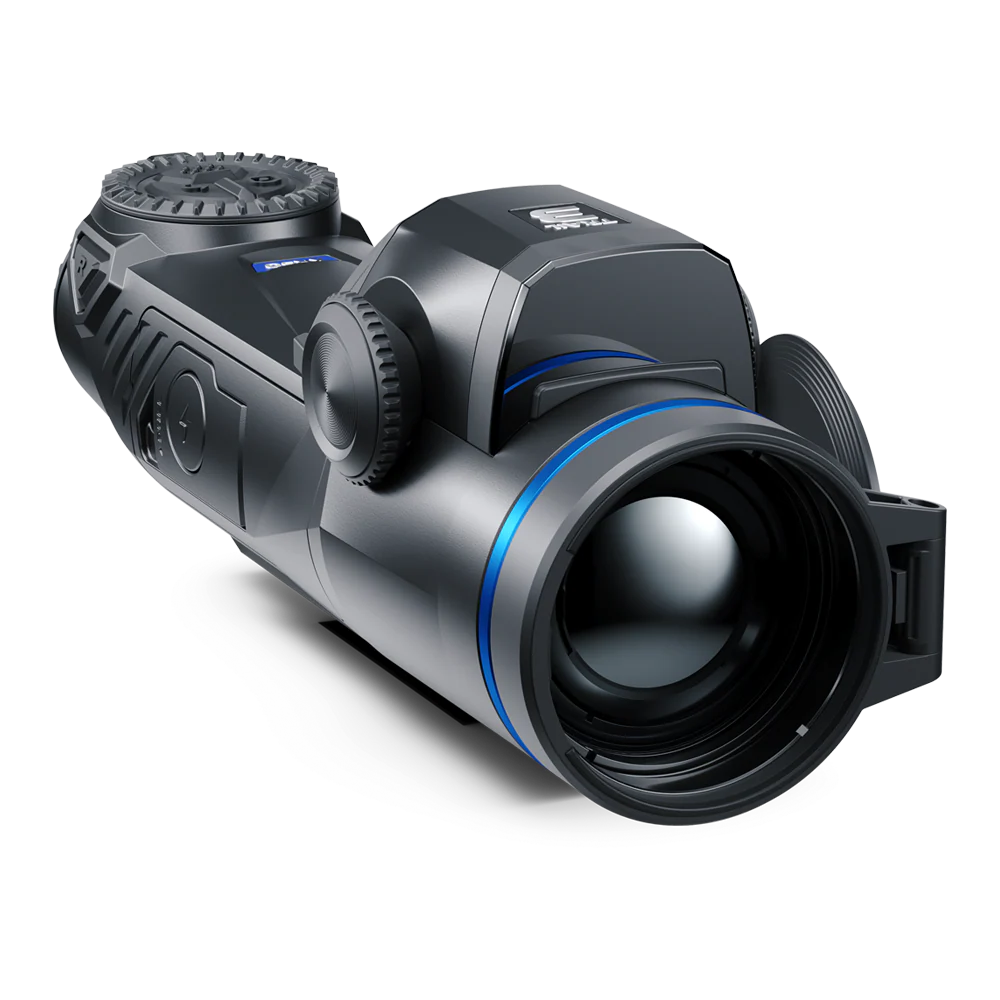

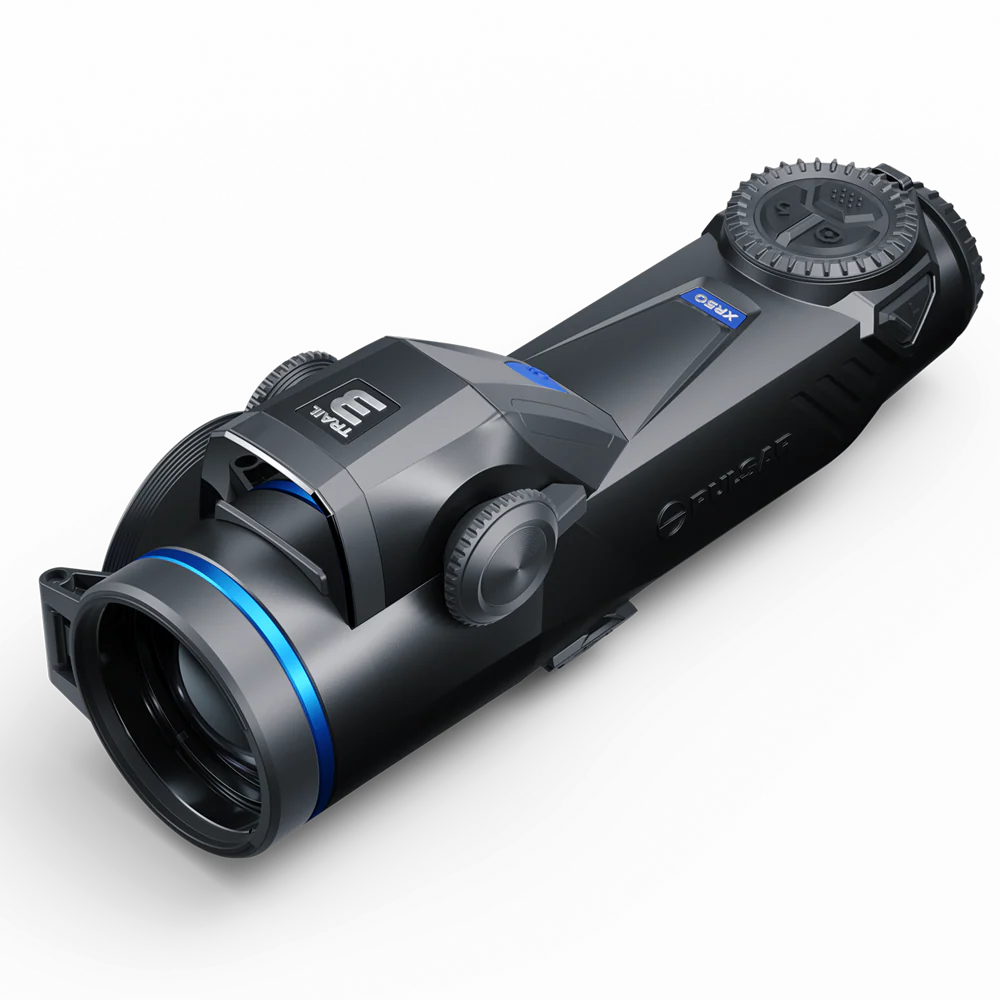

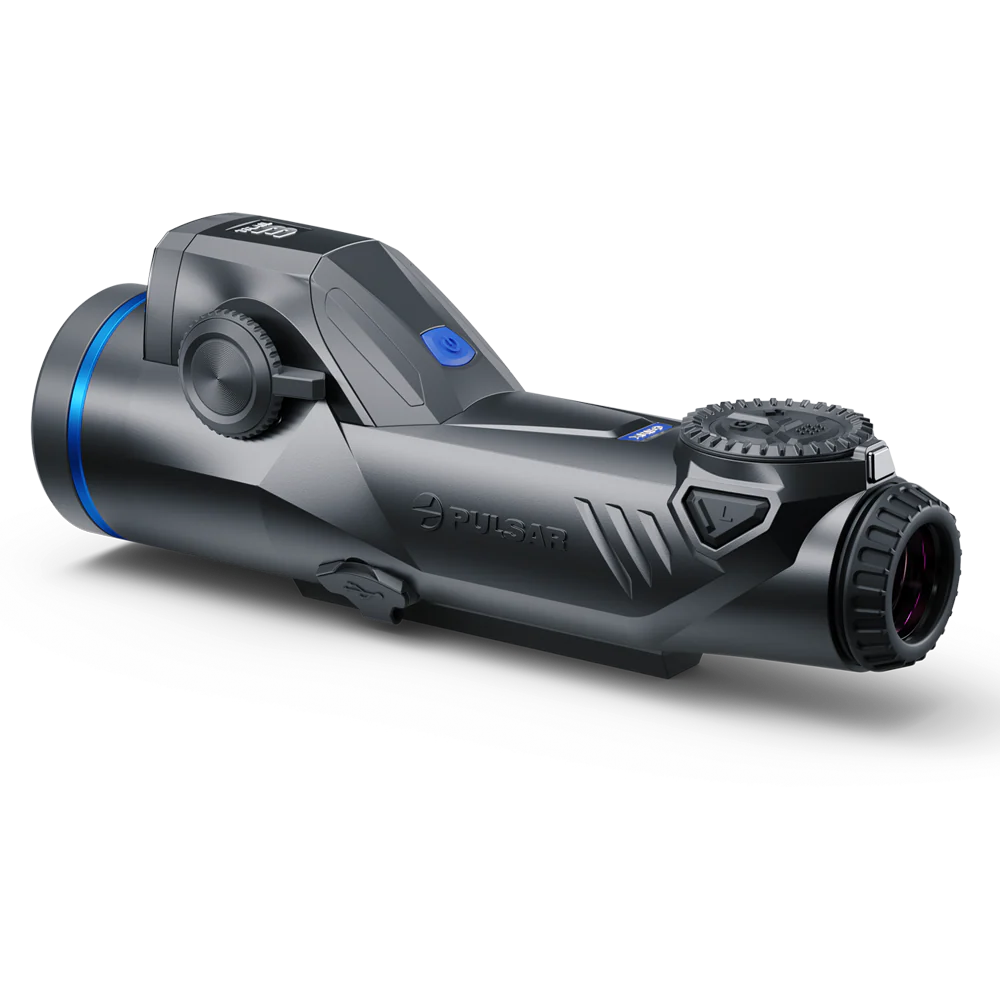

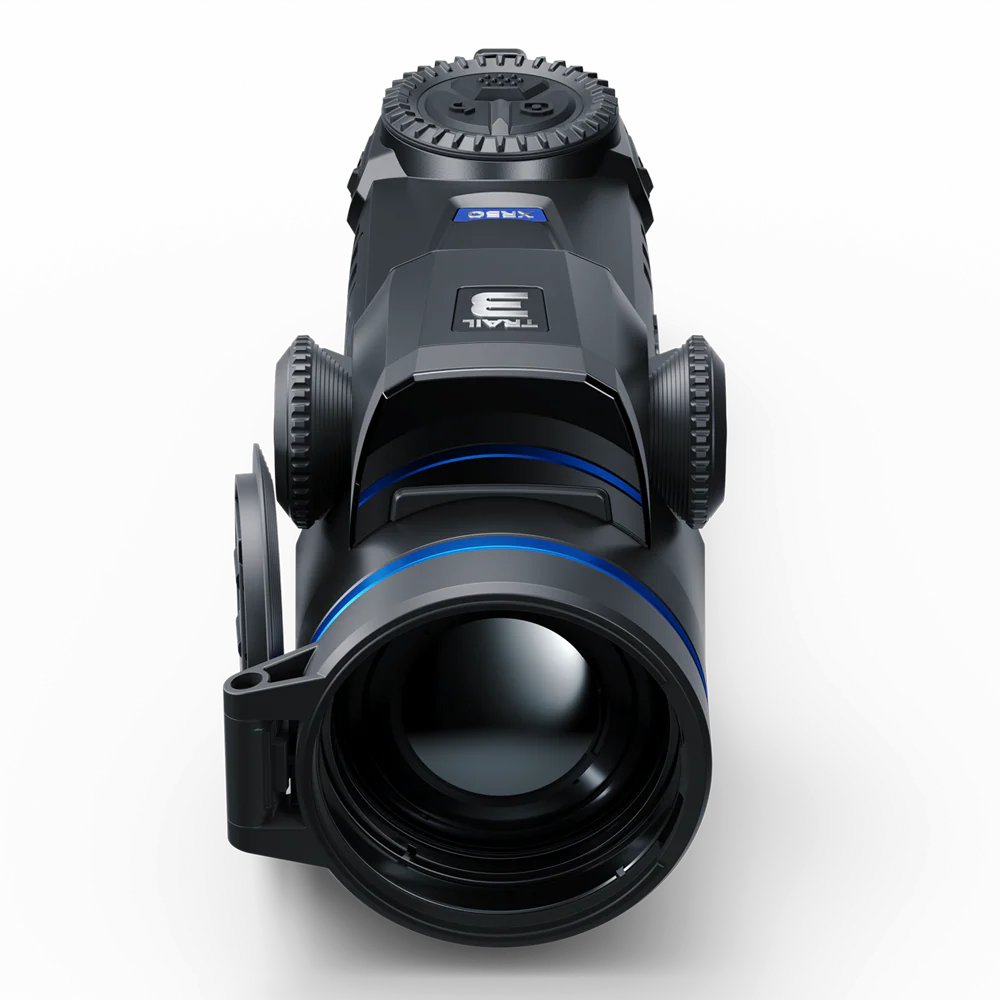

Compact and rugged Trail 3 LRF riflescopes built are for professional hunters, forestry specialists and pest control operators. Monoblock design and multi-point Pulsar prism ensure robustness and firm mounting on rail mounts. Top quality thermal imaging combined with precise laser rangefinder and ballistic calculator offers excellent image while ensuring shooting precision.
MAIN SPECIFICATIONS
Sensor
@ 12 µm 640×480
Objective lens
F50 / 1.0
Magnification, x
3 – 24
FOV (HxV)
degrees / m@100m
8.8 / 15.4
Detection range
2300 m
RETICLE
Click range, H/V, mm at 100m
2200 / 2200
Click value, H/V, mm at 100m
10.7
Number of preloaded reticles
10
SENSOR
Type
Thermal uncooled, microbolometric
Resolution, pixels
640×480
Pixel pitch, µm
12
Sensor NETD, mK
<30
System NETD, mK
<18
Frame rate, Hz
50
OPTICS
Objective lens
F50 / 1.0
Magnification, x
3 – 24
FOV (HxV)
degrees / m@100m
8.8 / 15.4
Diopter adjustment, D
-5 / +5
Eye relief, mm
50
DISPLAY
Type
AMOLED
Resolution, pixels
1920×1080
LASER RANGEFINDER
Max. measuring range, m
1200
Measurement accuracy, m
±1
Safety class for laser equipment
according to IEC 60825-1:2014 – Class 1
Wavelength, nm
905
VIDEO RECORDER
Video / photo resolution, pixels
1440×1080
Video / photo format
.mp4 / .jpg
Built-in memory, GB
64
BLUETOOTH
Wireless protocol
BLE 4.2
Wireless standard
IEEE 802.15.1
Frequency, GHz
2.4
WI-FI
Wireless protocol
Wi-Fi
Wireless standard
IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz
2.4 / 5
ENVIRONMENTAL CHARACTERISTICS
Degree of protection
IP67 (IEC60529)
Operating temperature range, °C
-25 to +50
CONNECTIONS AND COMPATIBILITIES
Compatible mounts
Multi-point prism
Supported application
Stream Vision 2, Stream Vision Ballistics
Shock resistance on smooth-bore rifles, caliber
12
Max recoil power on rifled weapon (Eo), Joules
6000
POWER SUPPLY
Output voltage, V
4.2 – 3.0
Battery type
LPS 7i
Capacity, mAh
6400
Operating time on battery pack
up to 11 hours (at 22°C)
External power supply
5V / 9V USB Type-C
WEIGHT & SIZE
Body material
Magnesium alloy
Dimensions, mm
271 × 86 × 71
Weight, kg
0.7
SKU
76588
Monoblock housing design
Robust monoblock housing keeps the riflescope rigid under recoil and rough use, delivering reliable performance and consistent accuracy in every hunting situation.
Customizable User Mode For Individual Image Adjustment
Crisp AMOLED 1920×1080 Display
Round-Shaped Picture-In- Picture Mode
Quick-Change Rechargeable Battery
High recoil resistance
Handle heavy recoil without losing performance, supporting powerful calibers up to .375 H&H while remaining fully compatible with smoothbore and pneumatic firearms.
Recoil activated video recording
Capture every shot automatically with recoil-activated video recording, adjustable across three sensitivity levels to match any caliber setup.
Full HD extra crisp AMOLED screen
Experience sharp, detailed thermal imaging on a bright Full HD 1920×1080 AMOLED microdisplay, making it easier to spot and track targets in any conditions.
New graphic interface
Navigate settings quickly with an intuitive interface that ensures clear visibility and easy access to key functions. Spend less time adjusting and more time observing, tracking, and making confident decisions in the field.
Round-shaped PiP mode
Focus on your target without losing situational awareness with the round-shaped Picture-in-Picture mode. Zoom in on the reticle area while keeping the surrounding field of view visible for confident tracking.
Built-in laser rangefinder
Measure distances quickly and accurately up to 1200 m with a powerful laser rangefinder. Switch between scanning and single-shot modes to assess range instantly and plan your next move with confidence.
Other Features
- 9 color palettes
- 3 display shapes
- 10 reticle shapes
- 10 zeroing profiles
- Side incline indication
- Elevation angle indication
- Stream Vision 2 support
- Stream Vision Ballistics support
- Multipoint Pulsar mounting prism
- Automatic display deactivation
- Quick-change rechargeable battery
- Shadow recording
