Pulsar Trail 3 LRF XR50 with QD mount- Field Test Demo

Save $499.00
PulsarSKU: PL76588K

Price:
Sale price$3,700.00 Regular price$4,199.00

Shipping calculated at checkout

Pickup available at Feral Texas Outdoors

Usually ready in 24 hours

Description

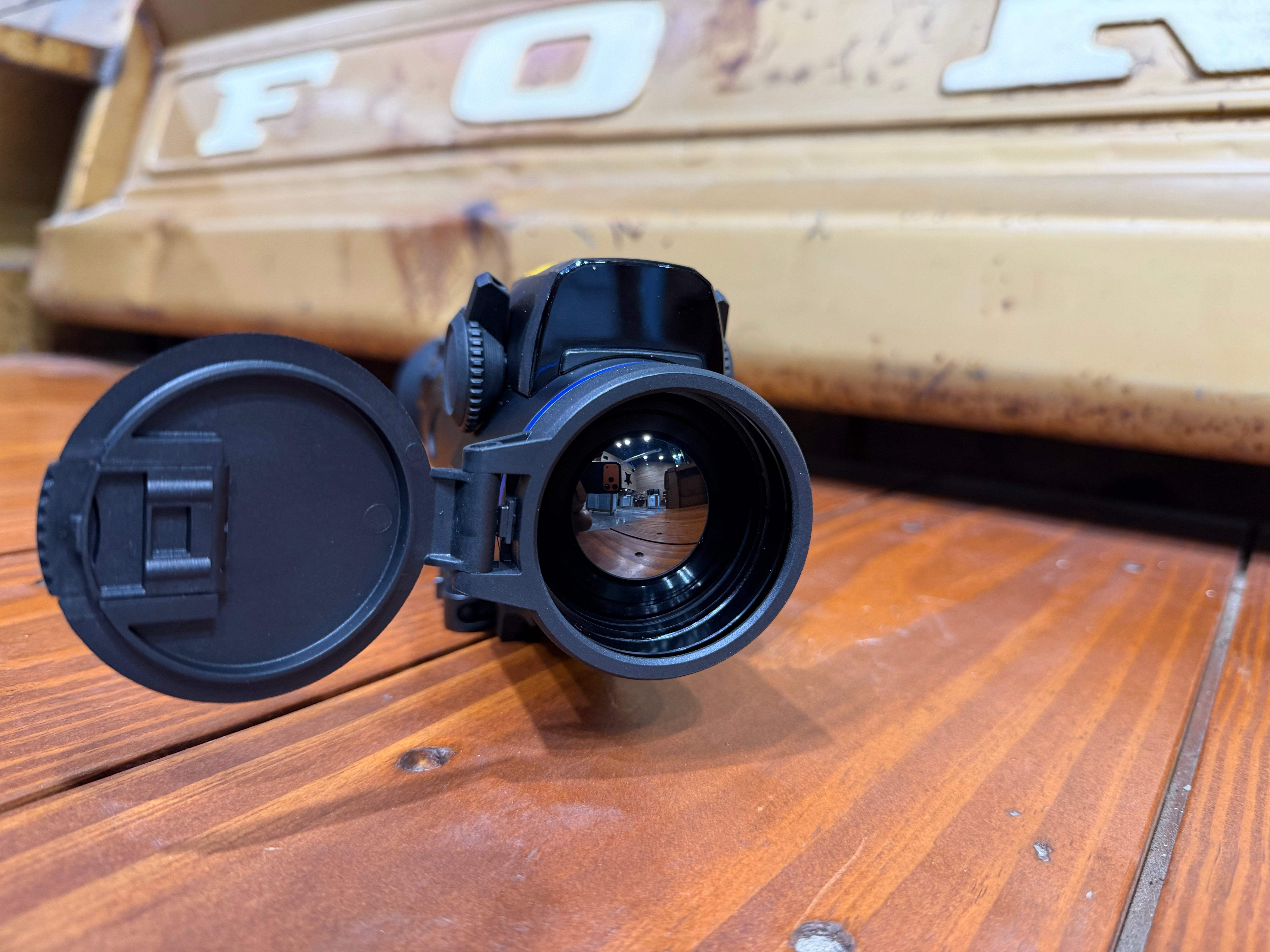

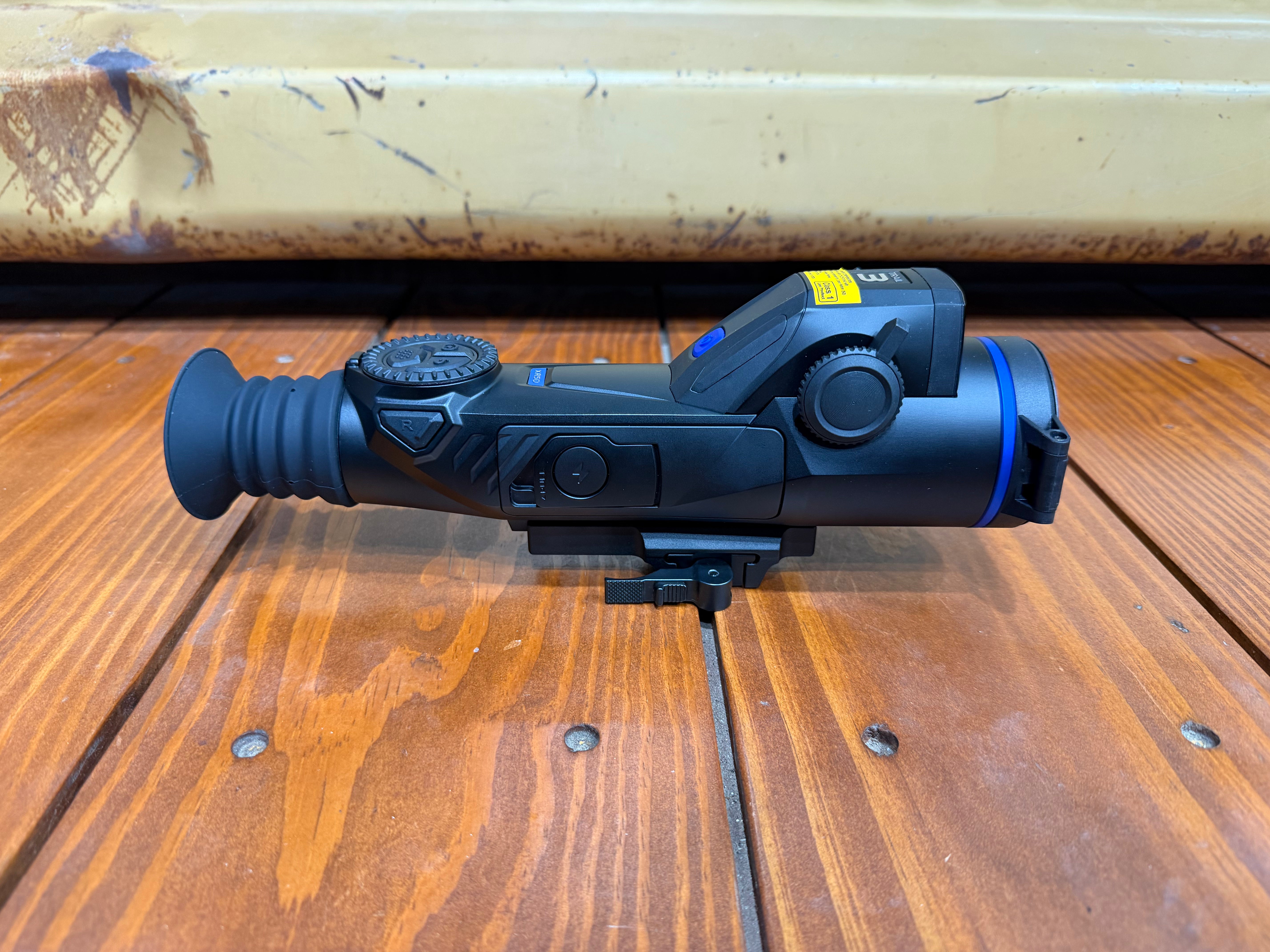

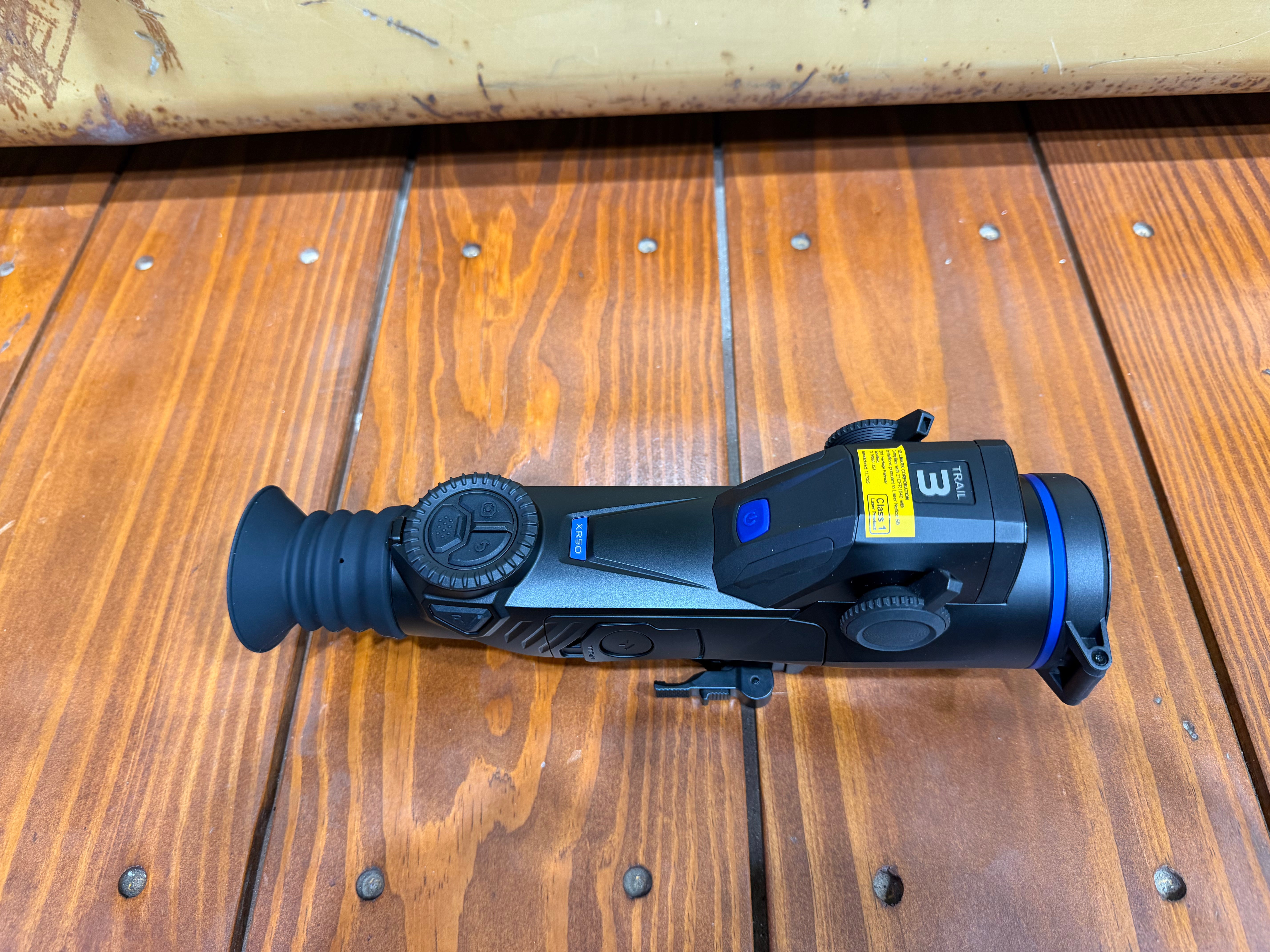

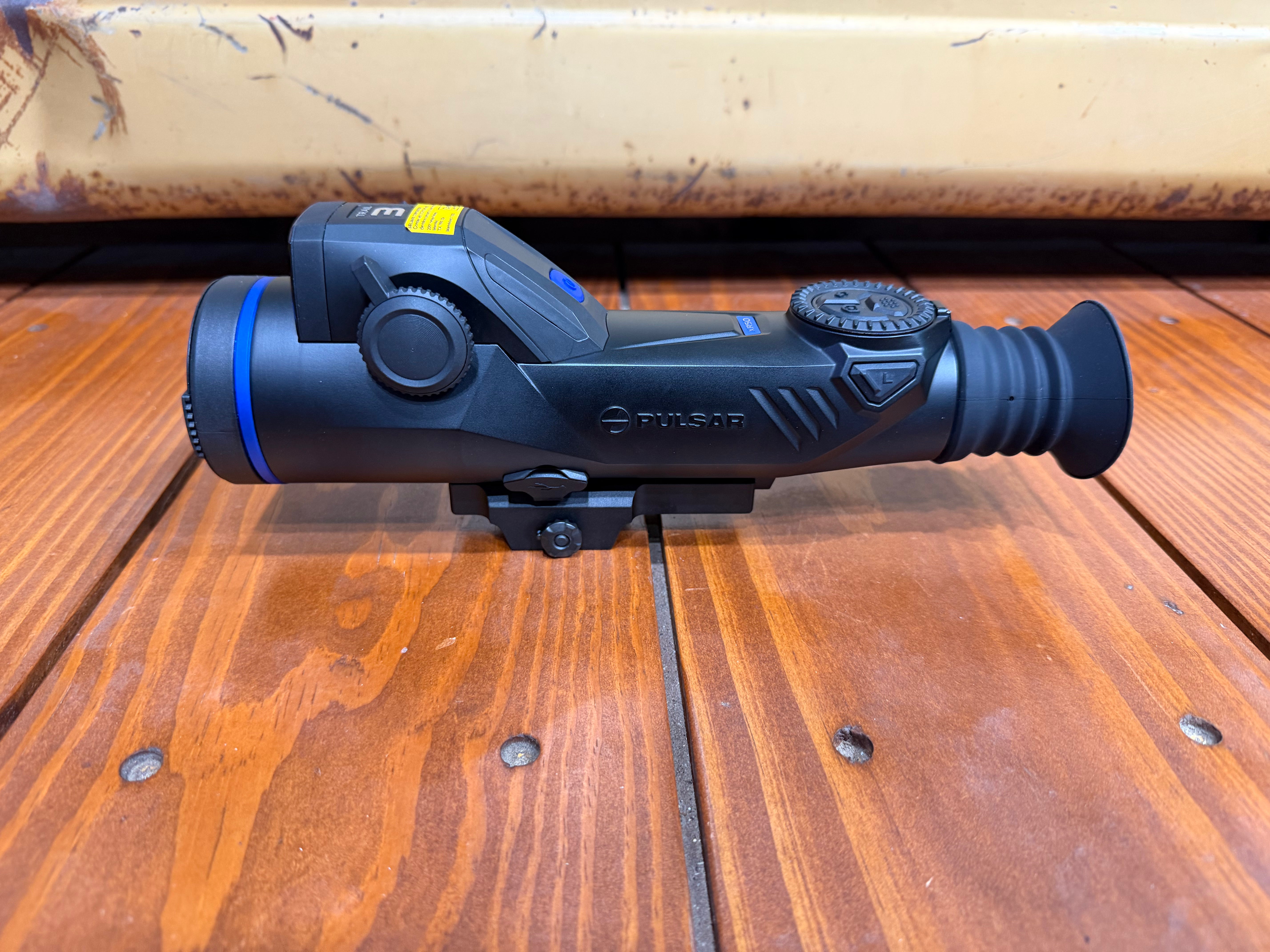

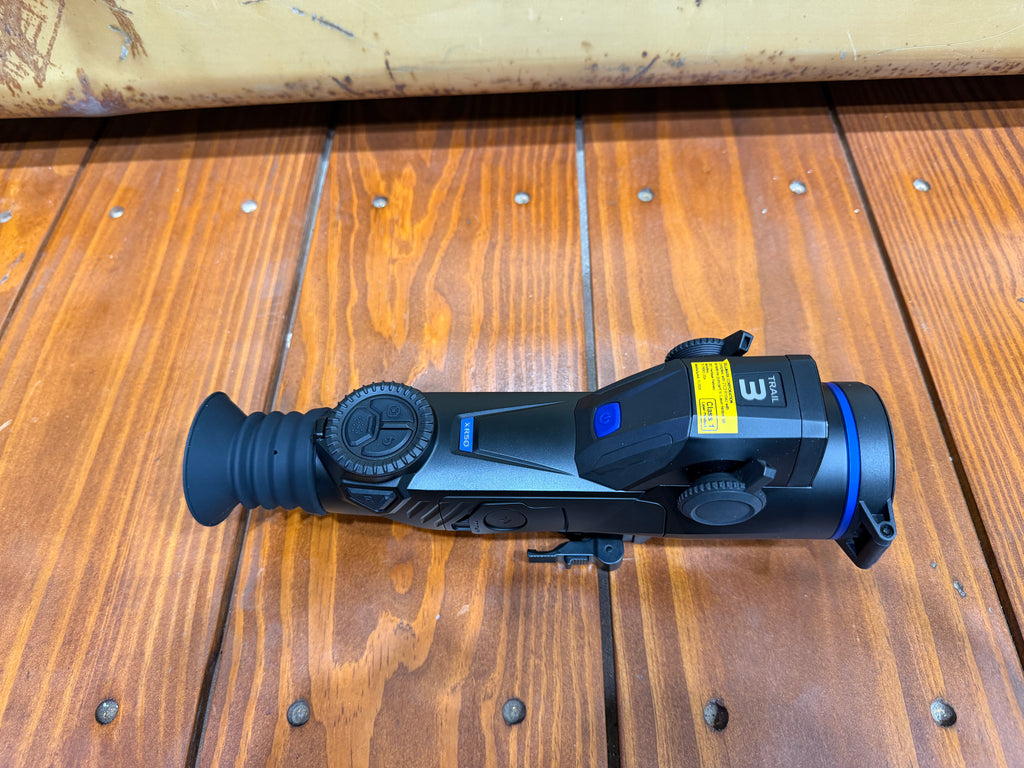

Field test unit in great condition, comes with all accessories as if buying it brand new. Full 5 year warranty.

DELIVERING PRECISION

Compact and rugged Trail 3 LRF riflescopes built are for professional hunters, forestry specialists and pest control operators. Monoblock design and multi-point Pulsar prism ensure robustness and firm mounting on rail mounts. Top quality thermal imaging combined with precise laser rangefinder and ballistic calculator offers excellent image while ensuring shooting precision.

Specifications

Sensor

Feature Details
Sensor Type Uncooled Thermal Microbolometer
Resolution 640 × 480
Pixel Size 12µm
Sensor NETD <30 mK
System NETD <18 mK
Frame Rate 50 Hz

Optics

Feature Details
Objective Lens 50mm, F1.0
Magnification 3x – 24x
Field of View 8.8° (15.4m @ 100m)
Detection Range Up to 2300m
Diopter Adjustment -5D to +5D
Eye Relief 50 mm

Display

Feature Details
Display Type AMOLED
Display Resolution 1920 × 1080

Reticle

Feature Details
Preloaded Reticles 10
Click Value 10.7 mm @ 100m
Click Range (H/V) 2200 mm / 2200 mm @ 100m

Laser Rangefinder

Feature Details
Maximum Range 1200 m
Accuracy ±1 m
Laser Class Class 1 (IEC 60825-1:2014)
Laser Wavelength 905 nm

Recording & Storage

Feature Details
Video Resolution 1440 × 1080
Photo Resolution 1440 × 1080
File Formats .MP4 / .JPG
Internal Storage 64 GB

Connectivity

Feature Details
Bluetooth BLE 4.2
Bluetooth Standard IEEE 802.15.1
Bluetooth Frequency 2.4 GHz
Wi-Fi Yes
Wi-Fi Standard IEEE 802.11 b/g/n/ac (WPA)
Wi-Fi Frequency 2.4 / 5 GHz
Mobile Apps Stream Vision 2, Stream Vision Ballistics

Durability

Feature Details
Protection Rating IP67 Waterproof
Operating Temperature -25°C to +50°C
Shotgun Rating Up to 12 Gauge
Maximum Recoil Energy 6000 Joules

Power

Feature Details
Battery Type Pulsar LPS 7i Rechargeable Battery Pack
Battery Capacity 6400 mAh
Operating Time Up to 11 Hours (22°C)
Output Voltage 4.2V – 3.0V
External Power USB Type-C (5V / 9V)

Physical Specifications

Feature Details
Body Material Magnesium Alloy
Dimensions 271 × 86 × 71 mm (10.7 × 3.4 × 2.8 in)
Weight 0.7 kg (24.7 oz)
Mount Compatibility Multi-Point Prism Mount
SKU 76588

Key Features

  • 640×480 thermal sensor with 12µm pixel pitch
  • Exceptional <18mK system NETD
  • 3x–24x magnification range
  • 2300m detection range
  • Integrated 1200m laser rangefinder
  • Crisp 1920×1080 AMOLED display
  • 64GB built-in storage
  • Video and photo recording
  • Bluetooth and dual-band Wi-Fi connectivity
  • Stream Vision 2 & Stream Vision Ballistics compatible
  • Magnesium alloy housing
  • IP67 waterproof protection
  • Up to 11 hours of runtime
  • Recoil rated up to 6000 joules
  • Compatible with Pulsar multi-point prism mounts



Monoblock housing design

Robust monoblock housing keeps the riflescope rigid under recoil and rough use, delivering reliable performance and consistent accuracy in every hunting situation.

Crisp AMOLED 1920×1080 Display

Crisp AMOLED 1920×1080 Display

Premium high-resolution screen delivers vivid thermal imagery with exceptional clarity, contrast, and color fidelity for fast target recognition.

Round-shaped Picture-in- Picture mode

Round-Shaped Picture-In- Picture Mode

Trail 3 possesses new round-shaped Picture-in-Picture mode. It displays a circle around reticle area. Digital zooming is limited to this area only, allowing to simultaneously zoom on target and seeing remaining field of view.

10 Shooting Profiles / 100 Zeroing Distances
Zeroing settings are saved in a shooting profile. The Trail 3's memory contains up to 10 shooting profiles for several types of weapons or cartridges. Each profile holds up to 10 zeroing distances input manually, but can be transformed into automatic ballistic calculations based on measured distance using the Stream Vision ballistics app.
High-Caliber Recoil Resistance
Trail 3 LRF is designed for use with high-caliber firearms generating muzzle energy of up to 6000 J. The reinforced housing and recoil-resistant internal architecture ensure reliable performance on heavy-recoiling rifles and magnum calibers. The sight maintains zero stability and internal integrity under repeated recoil, delivering consistent point-of-impact and repeatable accuracy shot after shot.
Automatic Display Deactivation
An integrated proximity sensor in the eyepiece automatically detects when the riflescope is not in use, switching off the display to prevent backlight exposure and reduce power consumption.
Bilateral Focusing Mechanism
Focusing wheels are positioned on both sides of the riflescope to provide comfortable operation for both right- and left-handed users. Each wheel is equipped with an integrated lever, ensuring improved grip and precise, effortless focusing even when wearing gloves.
Stream Vision 2. Wi-Fi Integration With IOS And Android Devices
Built-in Wi-Fi connects the Trail 3 series riflescope to Android and iOS devices through the Stream Vision 2 app, enabling wireless updates, real-time image streaming, remote control, and easy sharing of photos and videos. Registered users also get 16 GB of free cloud storage for their recordings and access to the latest Pulsar updates.
Operation In Extreme Temperatures -25 To +50°C
The housing, power unit, optics and electronic components of the Trail 3 are designed to operate in a wide range of temperatures and adverse environmental conditions. The Trail 3 ensures reliable and effective performance in freezing cold up to -25°C.

High recoil resistance

Handle heavy recoil without losing performance, supporting powerful calibers up to .375 H&H while remaining fully compatible with smoothbore and pneumatic firearms.

Recoil activated video recording

Capture every shot automatically with recoil-activated video recording, adjustable across three sensitivity levels to match any caliber setup.







Full HD extra crisp AMOLED screen

Experience sharp, detailed thermal imaging on a bright Full HD 1920×1080 AMOLED microdisplay, making it easier to spot and track targets in any conditions.







New graphic interface

Navigate settings quickly with an intuitive interface that ensures clear visibility and easy access to key functions. Spend less time adjusting and more time observing, tracking, and making confident decisions in the field.







Round-shaped PiP mode

Focus on your target without losing situational awareness with the round-shaped Picture-in-Picture mode. Zoom in on the reticle area while keeping the surrounding field of view visible for confident tracking.





Built-in laser rangefinder

Measure distances quickly and accurately up to 1200 m with a powerful laser rangefinder. Switch between scanning and single-shot modes to assess range instantly and plan your next move with confidence.



Other Features

  • 9 color palettes
  • 3 display shapes
  • 10 reticle shapes
  • 10 zeroing profiles
  • Side incline indication
  • Elevation angle indication
  • Stream Vision 2 support
  • Stream Vision Ballistics support
  • Multipoint Pulsar mounting prism
  • Automatic display deactivation
  • Quick-change rechargeable battery
  • Shadow recording
