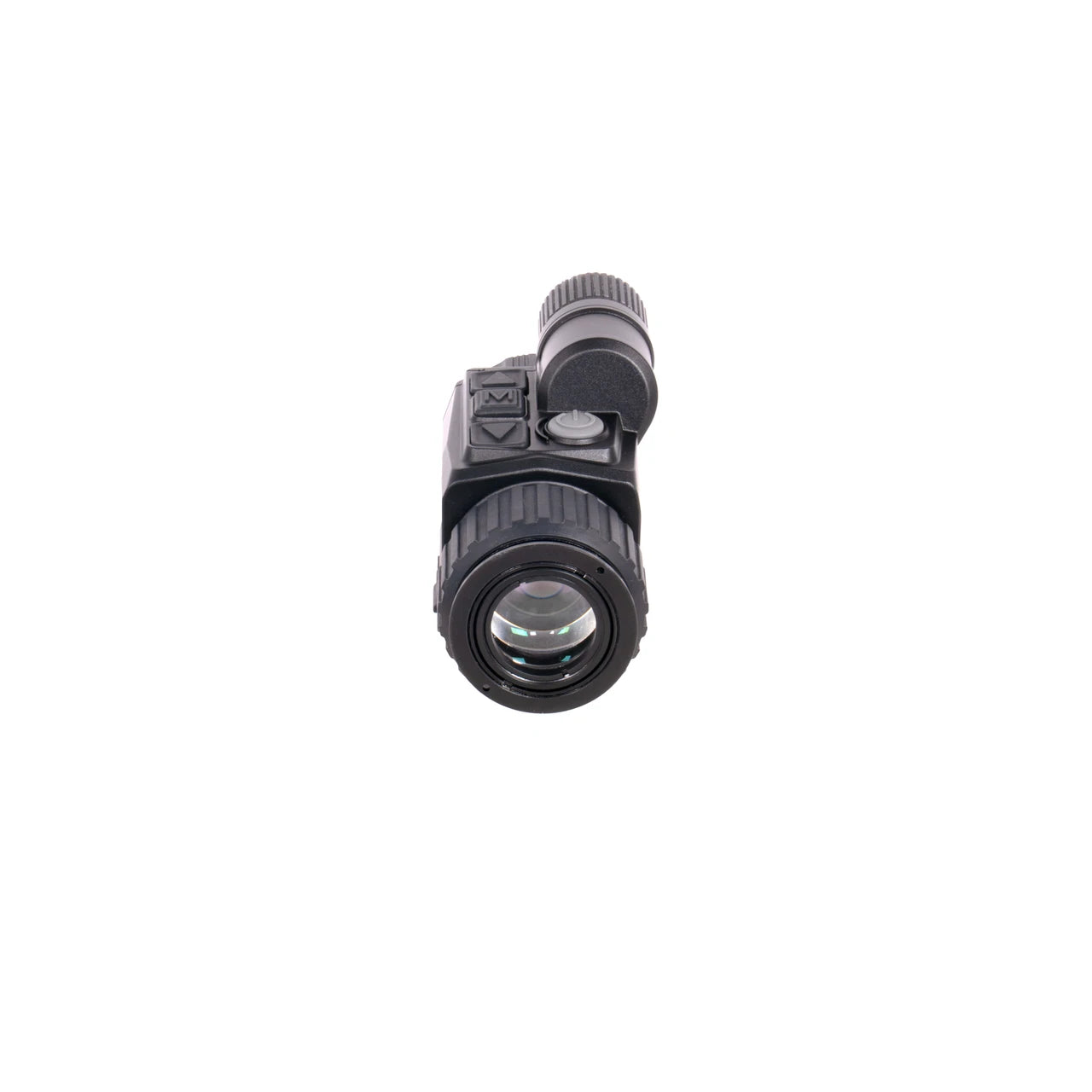

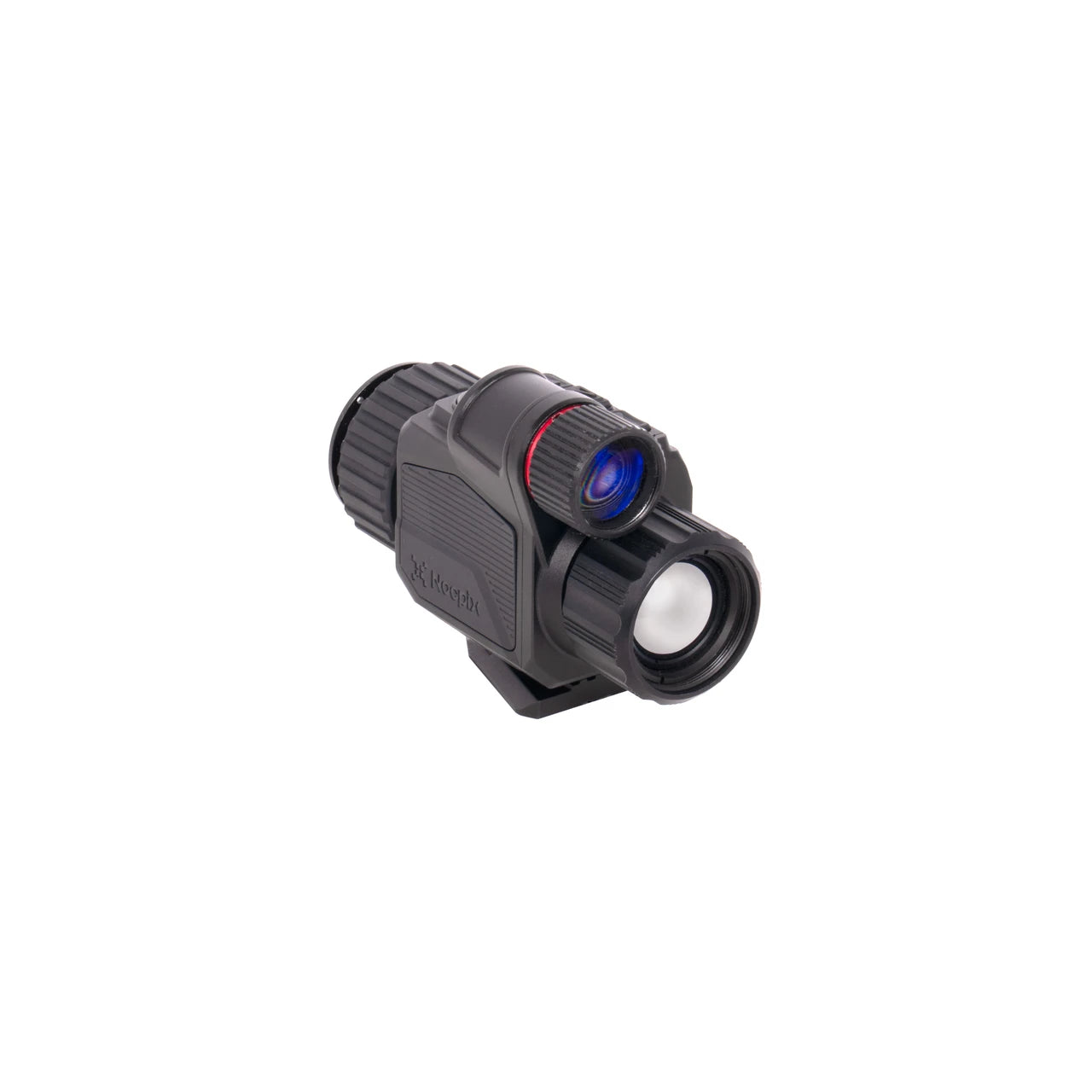

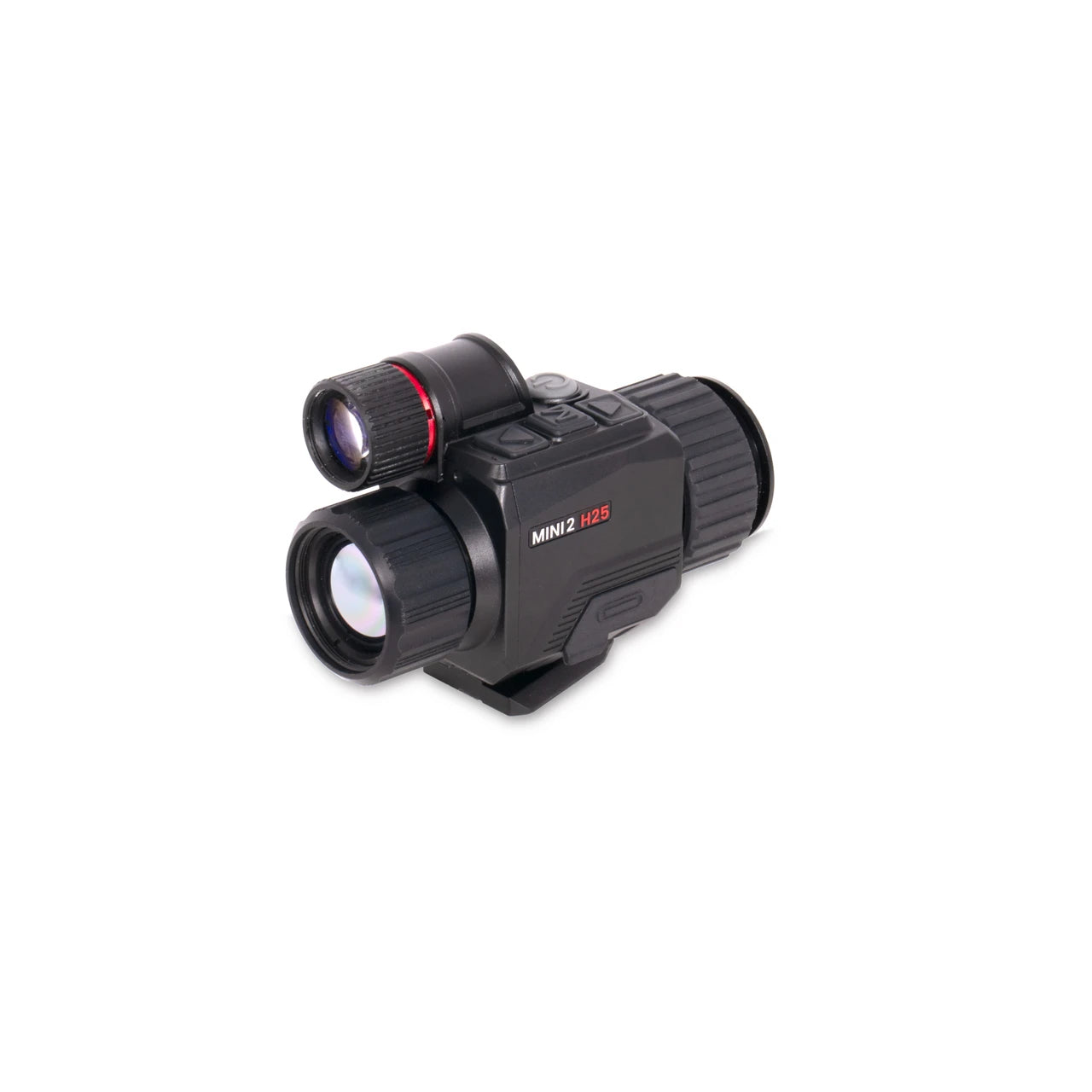

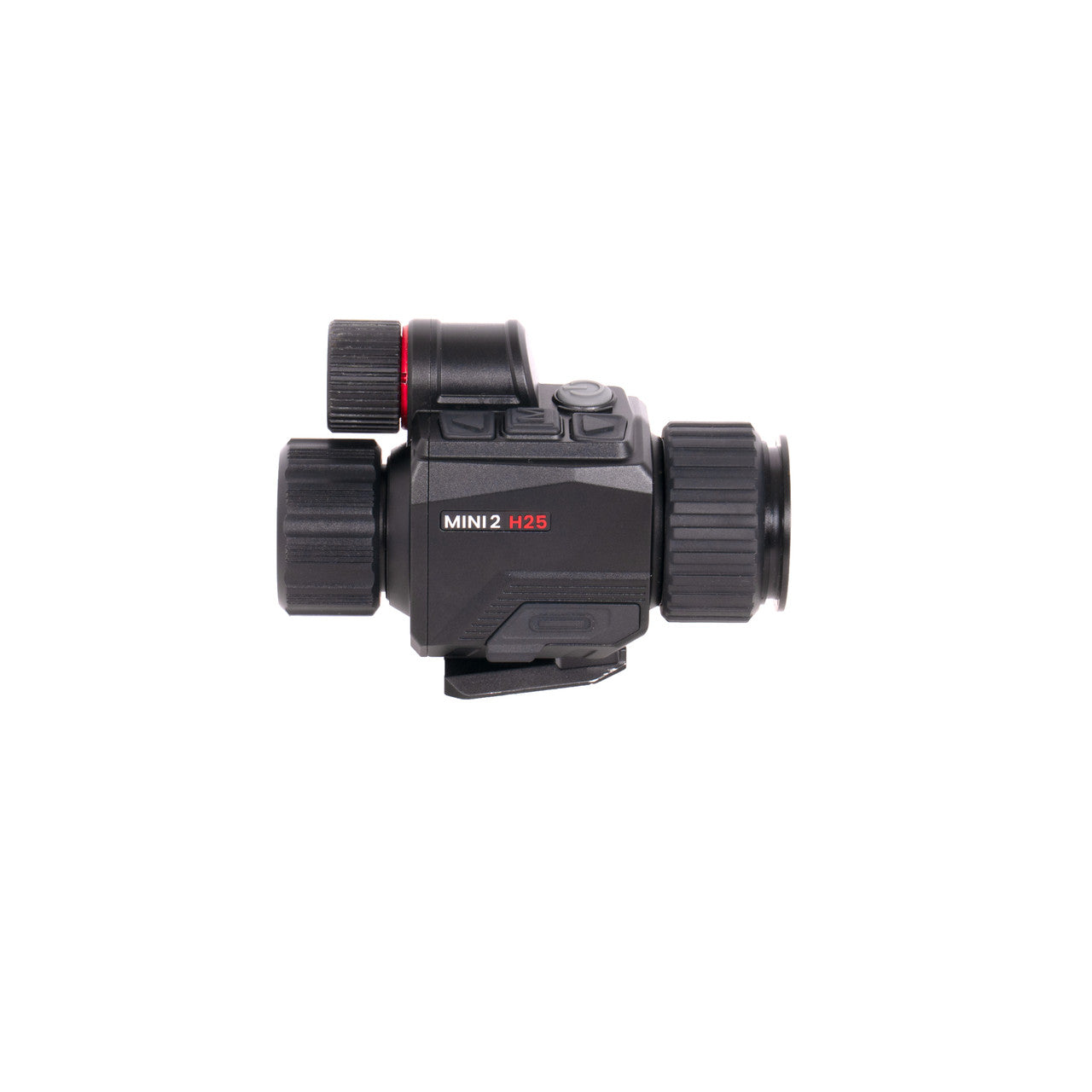

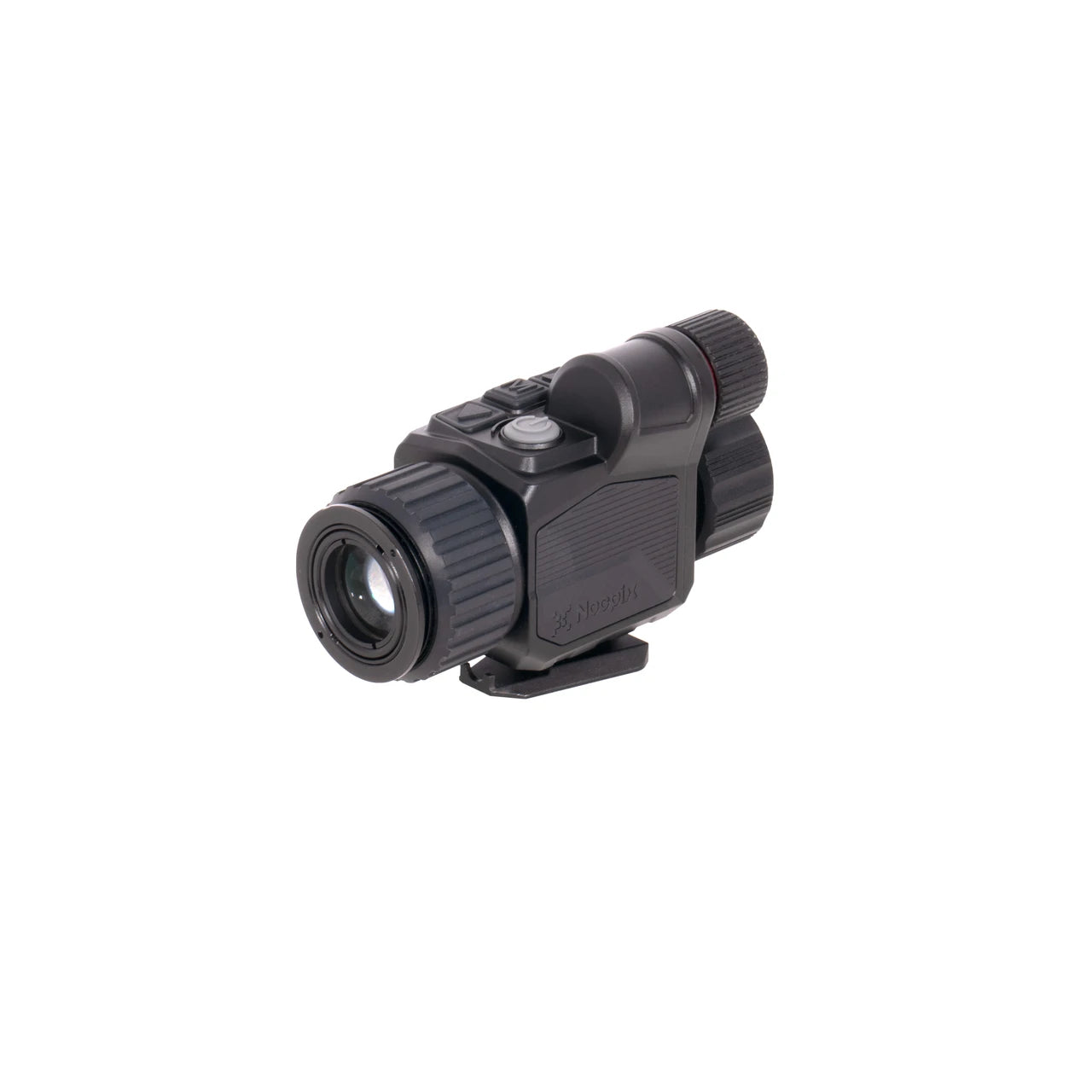

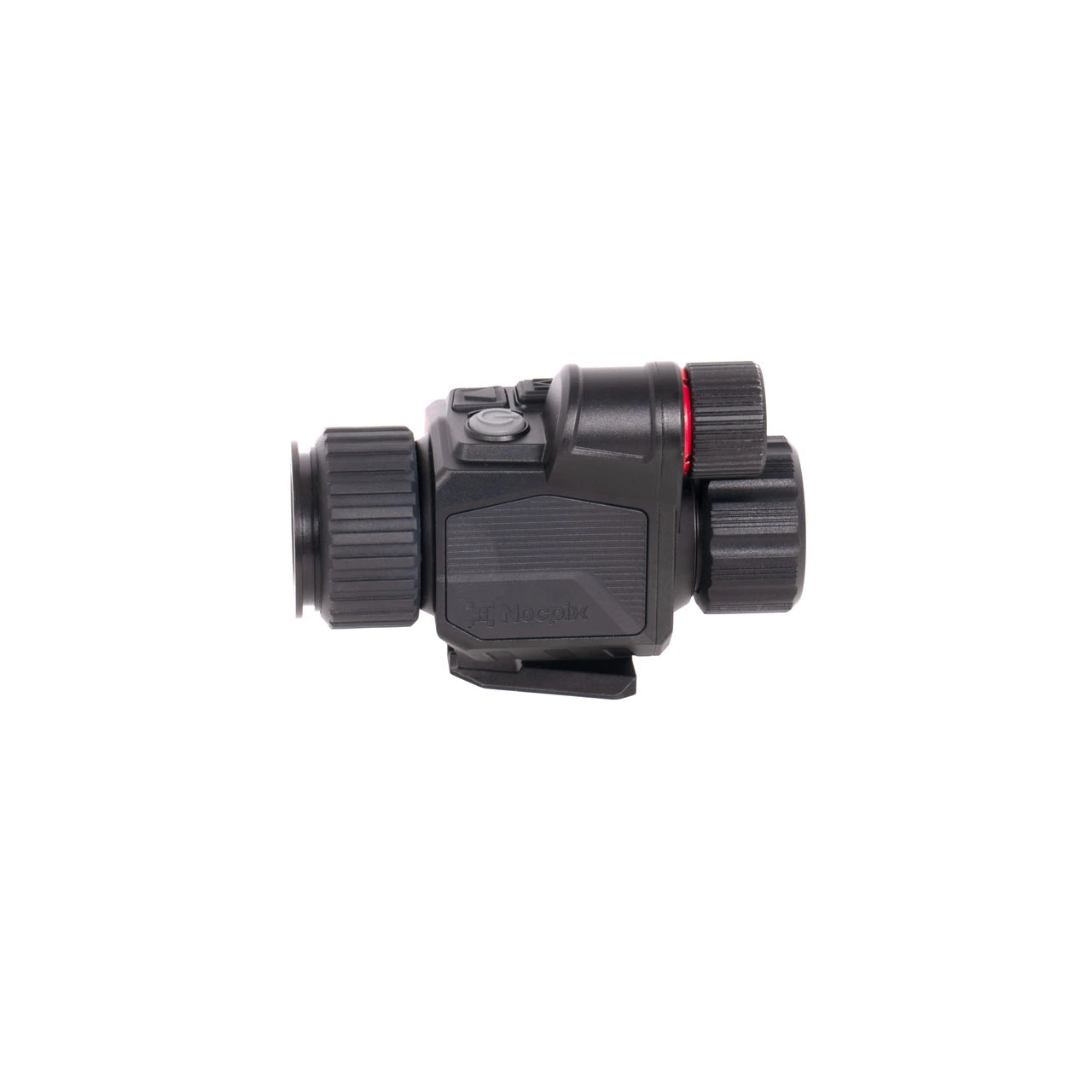

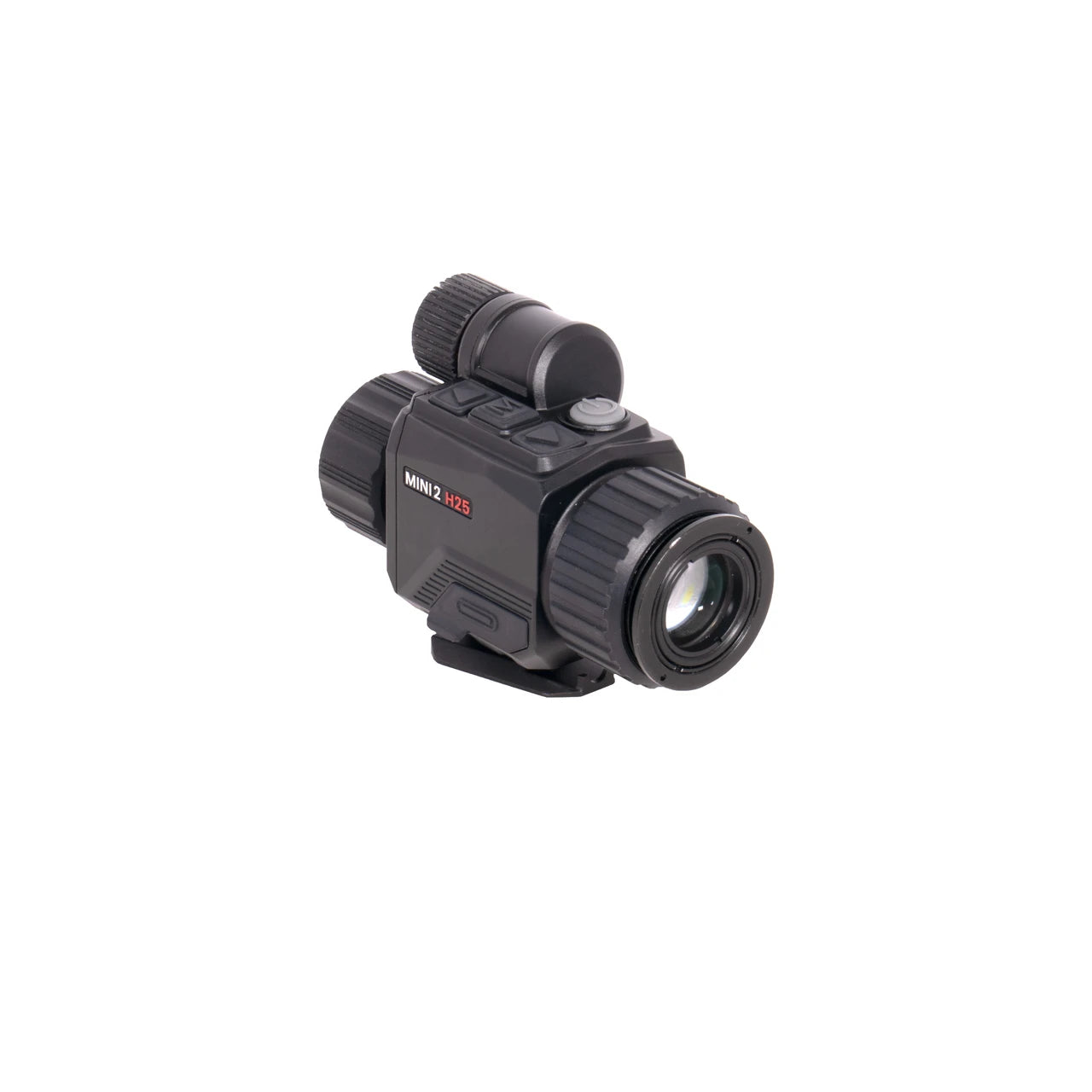

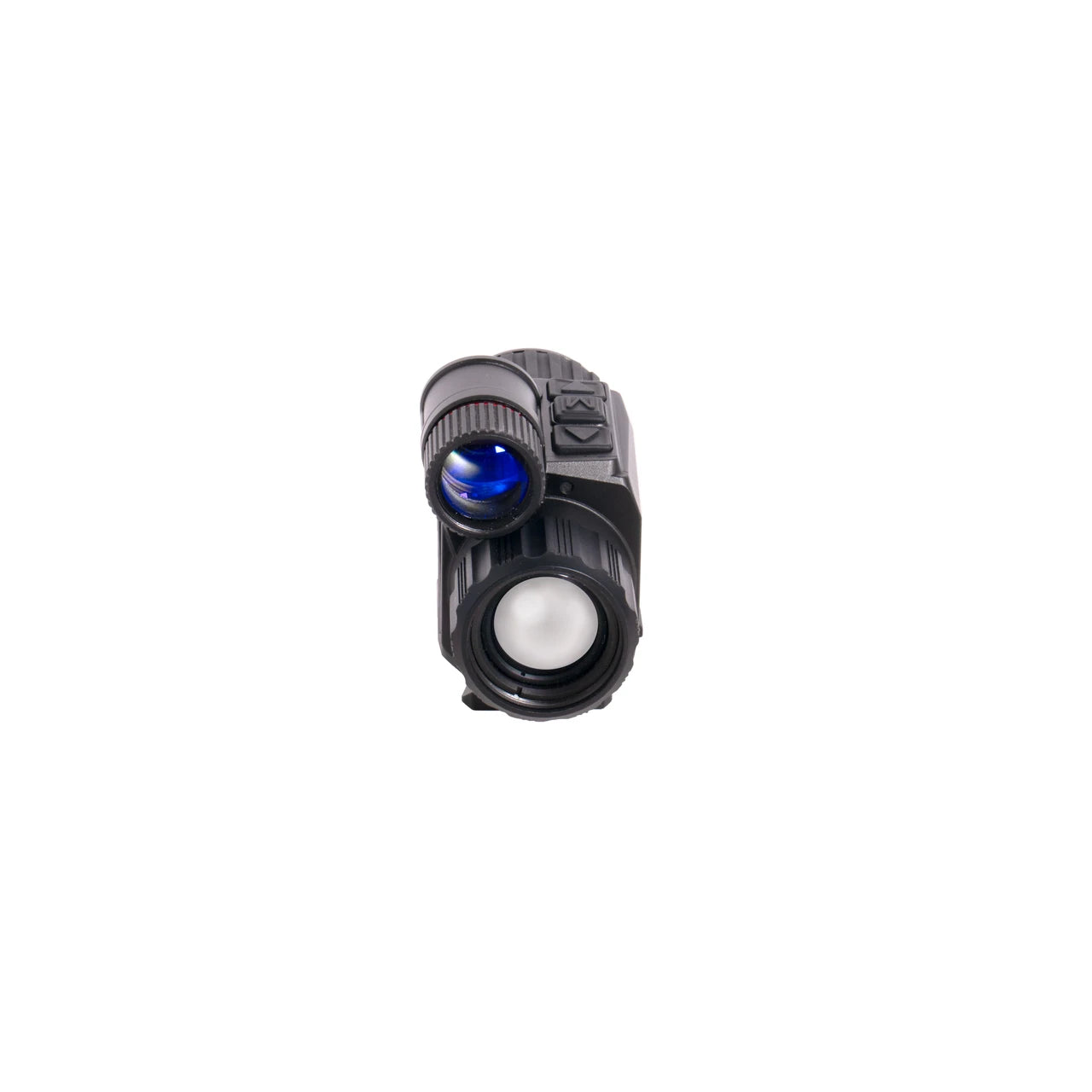

Nocpix Mini 2 H25 640 Thermal & Digital NV Helmet Mounted Monocular

NocpixSKU: MINI2-H25

Price:
Sale price$2,999.00

Shipping calculated at checkout

Pickup available at Feral Texas Outdoors

Usually ready in 24 hours

Description

The NOCPIX MINI 2 H25 packs high-performance thermal imaging, digital night vision, and fusion capability into an ultra-compact platform designed for both handheld and helmet-mounted use. Weighing just 8.47 oz, the MINI 2 H25 gives hunters and nighttime users hands-free thermal awareness without the bulk of a traditional thermal monocular.

At its core is a 640×512, 12µm thermal sensor with ≤15mK thermal sensitivity and a fast 60Hz refresh rate. Combined with NOCPIX Reality+ image processing and a 25mm F1.0 objective lens, the MINI 2 produces a sharp, detailed thermal image with a detection range of up to 1,420 yards.

The MINI 2 goes beyond traditional thermal imaging by combining thermal, digital night vision, and fusion imaging capabilities. The thermal overlay helps improve target recognition and situational awareness, while the wide 17.6° × 14.1° field of view and 1x base magnification make it especially well suited for helmet-mounted scanning and navigating after dark.

A crisp 0.6-inch 1280×1024 AMOLED display provides a high-contrast viewing experience, while the integrated dovetail mounting interface makes transitioning from handheld to helmet-mounted operation simple. The MINI 2 also features 32GB of internal storage, onboard photo and video recording, Wi-Fi and mobile app connectivity, Picture-in-Picture, multiple color palettes, and Ultra-Clear mode.

With its rugged aluminum housing, IP67 protection rating, external battery pack, and up to 7 hours of runtime, the NOCPIX MINI 2 H25 is built for hunters looking for a compact, versatile thermal solution that can go from handheld scanning to a helmet setup.

Key Features

  • 640×512, 12µm thermal sensor
  • ≤15mK thermal sensitivity
  • 60Hz refresh rate
  • Reality+ image processing
  • Thermal, digital night vision & fusion imaging
  • 25mm F1.0 objective lens
  • True 1x base magnification
  • Up to 4x digital zoom
  • Wide 17.6° × 14.1° field of view
  • Detection range up to 1,420 yards
  • 0.6” 1280×1024 AMOLED display
  • Integrated dovetail helmet mounting interface
  • Picture-in-Picture (PIP)
  • Ultra-Clear mode
  • 32GB internal storage
  • Video & image recording
  • Wi-Fi & mobile app connectivity
  • Up to 7 hours of operation
  • Lightweight 8.47 oz design
  • Aluminum housing
  • IP67 waterproof & dustproof
  • 5-Year Warranty

Specifications

Sensor

Feature

Details

Sensor

NOCPIX 640

Resolution

640 × 512

Pixel Size

12µm

Frame Rate

60 Hz

Thermal Sensitivity (NETD)

≤15mK

Image Processing

Reality+

Optics

Feature

Details

Objective Lens

25mm F1.0

Base Magnification

1x

Digital Zoom

1x – 4x

Field of View

17.6° × 14.1°

Detection Range

Up to 1,420 Yards

Eye Relief

25 mm

Diopter Adjustment

-5D to +5D

Imaging Modes

Feature

Details

Thermal Imaging

Yes

Digital Night Vision

Yes

Fusion / Thermal Overlay

Yes

Picture-in-Picture (PIP)

Yes

Ultra-Clear Mode

Yes

Color Palettes

White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian

Display

Feature

Details

Display Type

0.6” AMOLED

Display Resolution

1280 × 1024

Recording & Connectivity

Feature

Details

Onboard Recording

Video & Image Capture

Internal Storage

32 GB

Wi-Fi

Yes

Mobile App

Yes

Data / Power Connection

USB-C

Power

Feature

Details

Power Supply

External Battery Pack / USB-C

Maximum Runtime

Up to 7 Hours

Physical Specifications

Feature

Details

Dimensions

4.00 × 1.72 × 2.54 in

Weight

8.47 oz

Housing Material

Aluminum

Mounting System

Integrated Dovetail Shoe

Environmental

Feature

Details

Protection Rating

IP67 Waterproof & Dustproof

Operating Temperature

-4°F to 122°F

Warranty

5 Years

Package Contents

  • NOCPIX MINI 2 H25 Thermal Imaging Monocular
  • Objective Lens Cap
  • Standard Eyeguard
  • External Battery Pack
  • Magnetic Charging Cable
  • USB-C Cable
  • Hex Key
  • Carrying Bag
  • Lens Cloth
  • User Manual
