Description
Introducing the ACE series, the flagship thermal riflescope designed for all hunting environments. It features a self-developed high-resolution thermal sensor, integrated LRF, and advanced Reality+ and Vision+ systems. Deliver unparalleled image quality and superior performance.
-
Equipped with a Gen-2 HD thermal sensor offering a resolution of up to 1280×1024 and a frame rate of up to 60Hz, the ACE provides stable performance with an NETD≤15mK. This enables it to detect even the slightest temperature variations, delivering exceptionally detailed and smooth thermal imagery, even when tracking fast-moving prey.
The ACE has a 50mm/F0.9 lens. The larger objective lens allows 20% more light to reach the sensor. Coupled with high-transmittance lens elements, it generates brighter and clearer images.
The ACE series boasts an impressive detection range of up to 3100 meters. This capability allows clear identification of distant targets, providing a significant advantage for long-range hunting.
Our proprietary Reality+ image processing algorithm effectively eliminates environmental temperature noise, enhancing contrast and detail clarity.

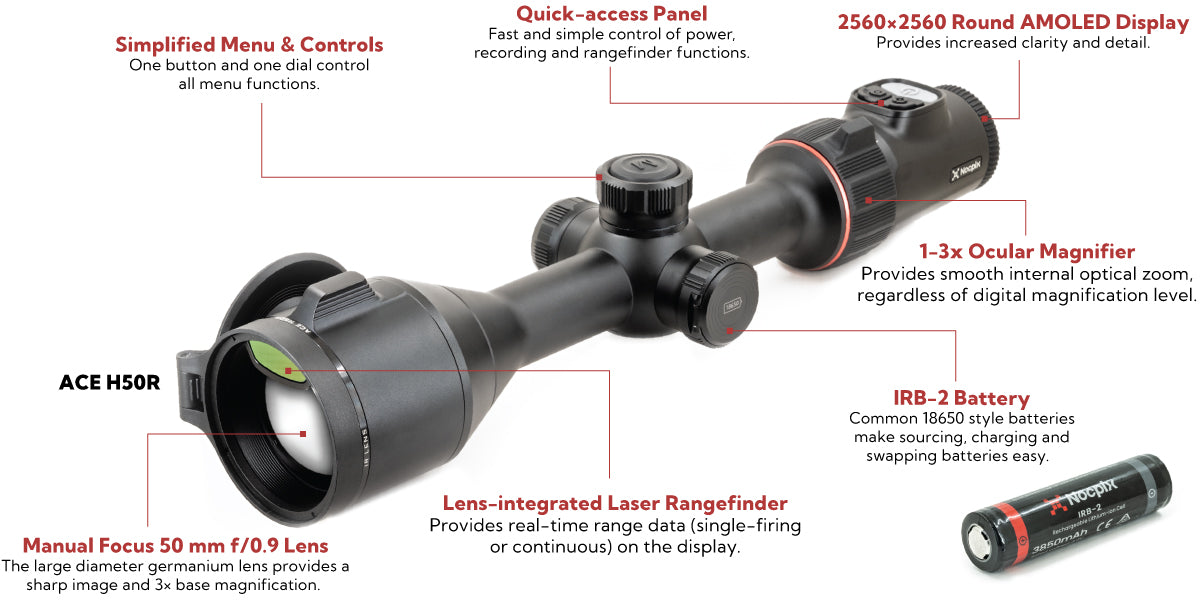

The new Vision+ system features a 1.03-inch, round, 2560×2560 AMOLED screen and industry-leading ocular zoom for direct optical magnification. Unlike traditional e-zoom, it prevents blurring and distortion in close-up views. Enjoy high-resolution images and a broader field of view for an immersive and comfortable observation experience.
The ACE is equipped with an integrated LRF, offering laser range-finding up to 1200 meters with true optical axis alignment, ensuring precise distance measurements while maintaining a sleek and elegant design.

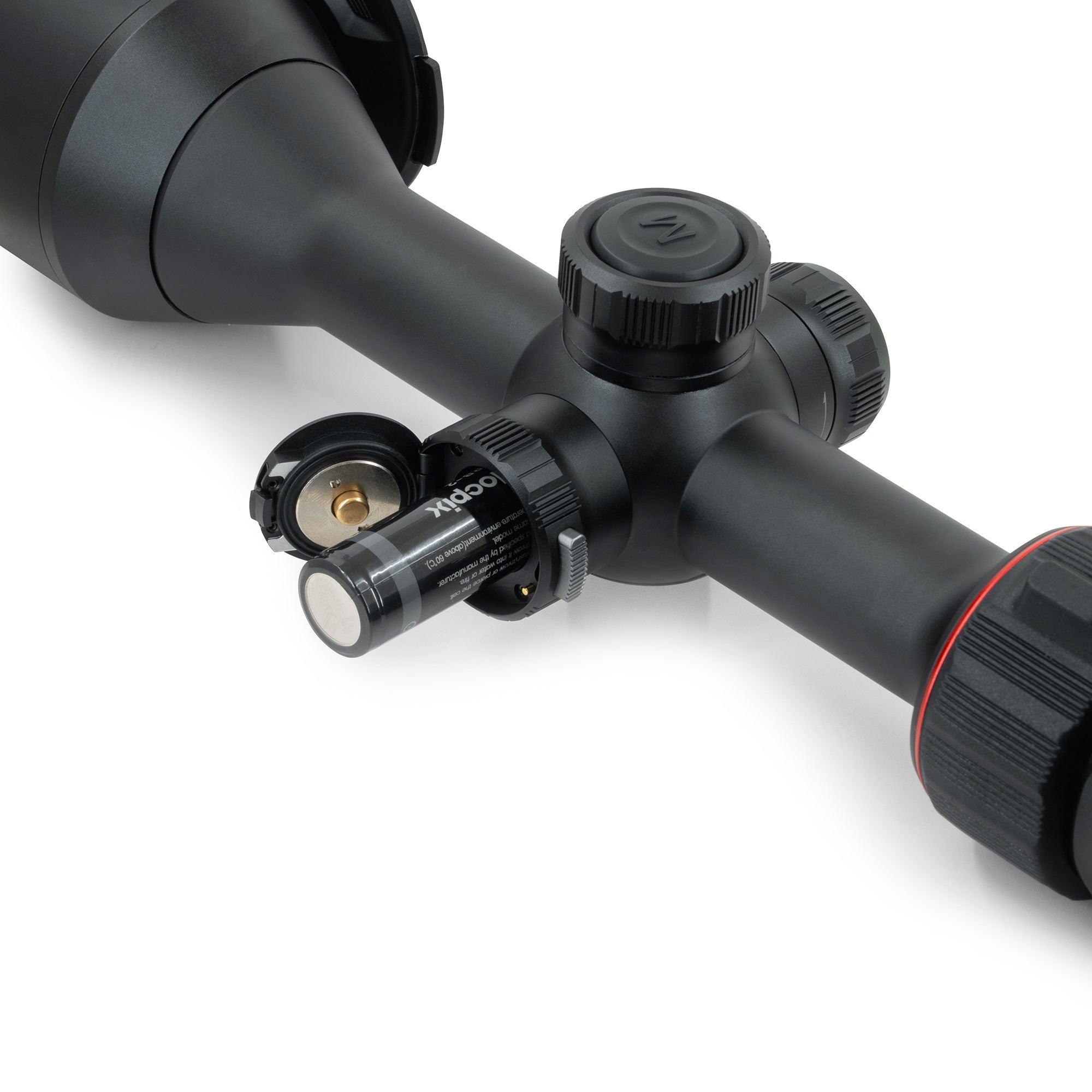

The ACE employs a dual-battery system with a 4000mAh built-in battery and an additional replaceable 18650 battery. This setup meets the demands of prolonged outdoor hunting sessions.
The ACE includes essential features for hunting scenarios such as ballistic calculations, auto screen shutdown, recoil-activated video recording, and a shutterless design, making perfect hunting achievable.
ACE H50R
Thermal sensor
640×512 & 12μm
NETD, mK
≤ 15
Frame rate, Hz
60
Objective lens, mm
50 F0.9
Field of view(H×V), °/m@100m
8.8x7.0 /15×12
Magnification, ×
3~24
Ocular zoom, ×
1~3
Detective range, m(Target size:1.7m×0.5m, P(n)=99%)
2600
Exit relief, mm
50
Exit pupil diameter, mm
8
Diopter, D
-5~5
Type
1.03inch AMOLED
Resolution
2560x2560
Battery
Built-in 4000mAh & 18650 battery
Max. operation time, (t=22℃)h
7
LRF ranging distance, m
1200
Ballistic calculation
Yes
Photo & Video & Audio recording
Yes
Memory capacity, GB
64
WIFI & APP
Yes
Weight, g(with battery)
1120
Dimension, mm
365×90×68
