infiRay Outdoor RICO MICRO Helmet Setup - Pictail with HHV Helmet and DMAX14 J-ARM

infiray OutdoorSKU: RHHelmet

Price:
Sale price$663.99

Shipping calculated at checkout

Pickup available at Feral Texas Outdoors

Usually ready in 2-4 days

Description

Set up for Feral Texas Outdoors Rico Micro Customers Only.

Helmet size leave in notes on order:

  • M/L 20 1/4" - 23 1/2"
  • L/XL 23 1/2" - 24 3/4"

Fits RH25 and RL25 only, both V1 and V2 models. UNIT NOT INCLUDED!

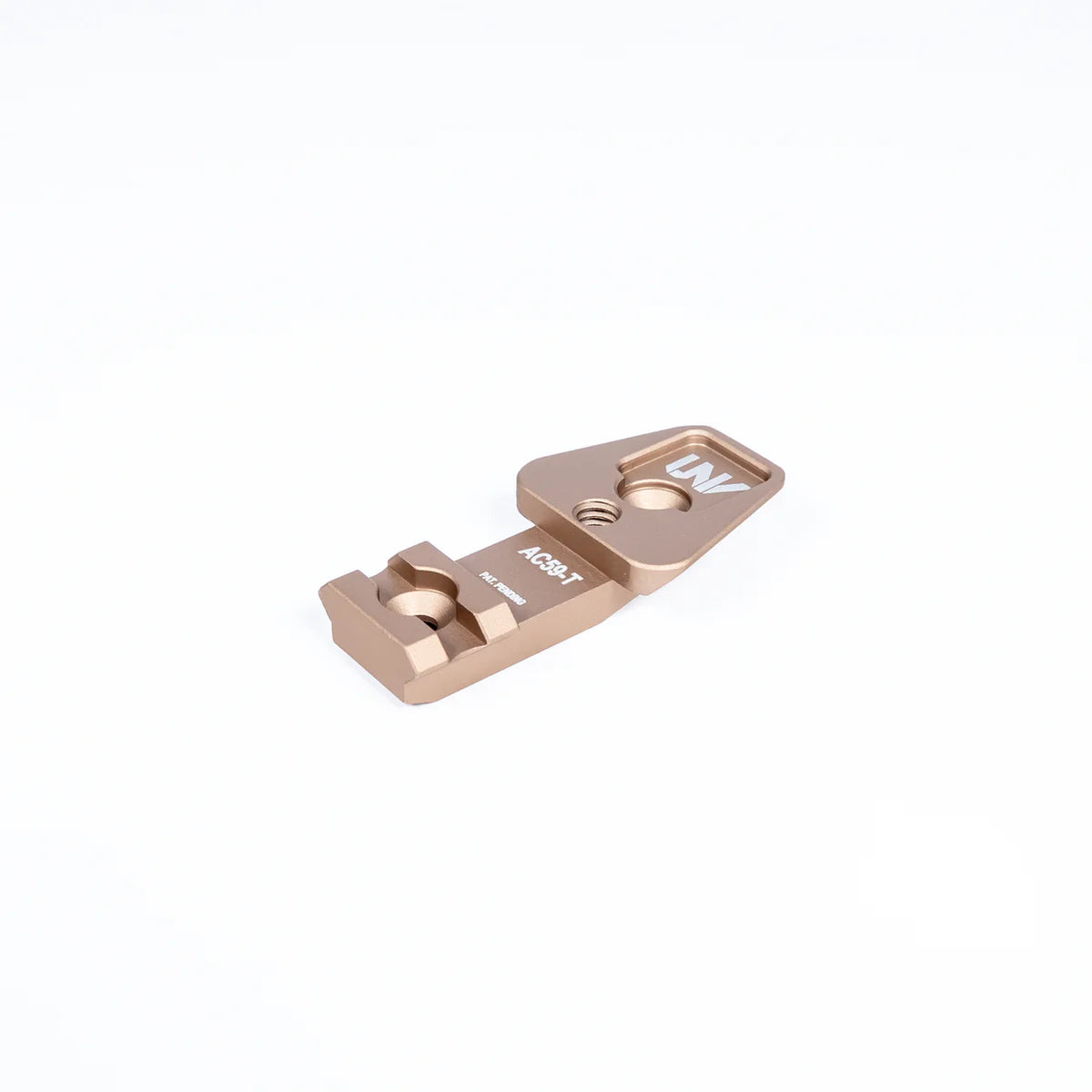

iRayUSA RICO MICRO PICTAIL Helmet/Weapon Shoe

The PICTAIL mounting system is the combination of a standard dovetail shoe commonly used on helmet mountable night vision optics and the MIL-STD-1913 picatinny rail used on weapons platforms.

The synergy of these two mounting formats creates a system that is more accurate and versatile on a rifle while maintaining all dovetail capabilities on a helmet. The PICTAIL is compatible with standard dovetail receptacles used in helmet mounting interface hardware made by Wilcox, KVC, and others.

The counterpart to the dovetail side of the PICTAIL shoe is MIL-STD-1913 picatinny rail specially designed with one slot that interfaces with the ADM MQD mount. The PICTAIL and MQD mount work in tandem to achieve an adjustable footprint on any standard picatinny rail. In standalone optic mode they produce over 4.5 inches of rear offset, and when reversed for use in clip-on mode the MQD and PICTAIL shrink the rear offset to just 1.5 inches. In clip-on mode the required forward rail space is just 4 rail slots in front of a day optic making the PICTAIL and MQD the perfect combination for shorter platforms like SBRs and pistols.

iRayUSA partnered with American Defense Manufacturing to produce the PICTAIL and MQD delivering ADM’s gold standard picatinny mounting solution with an innovative lighter and faster dovetail design for faster helmet transitions.

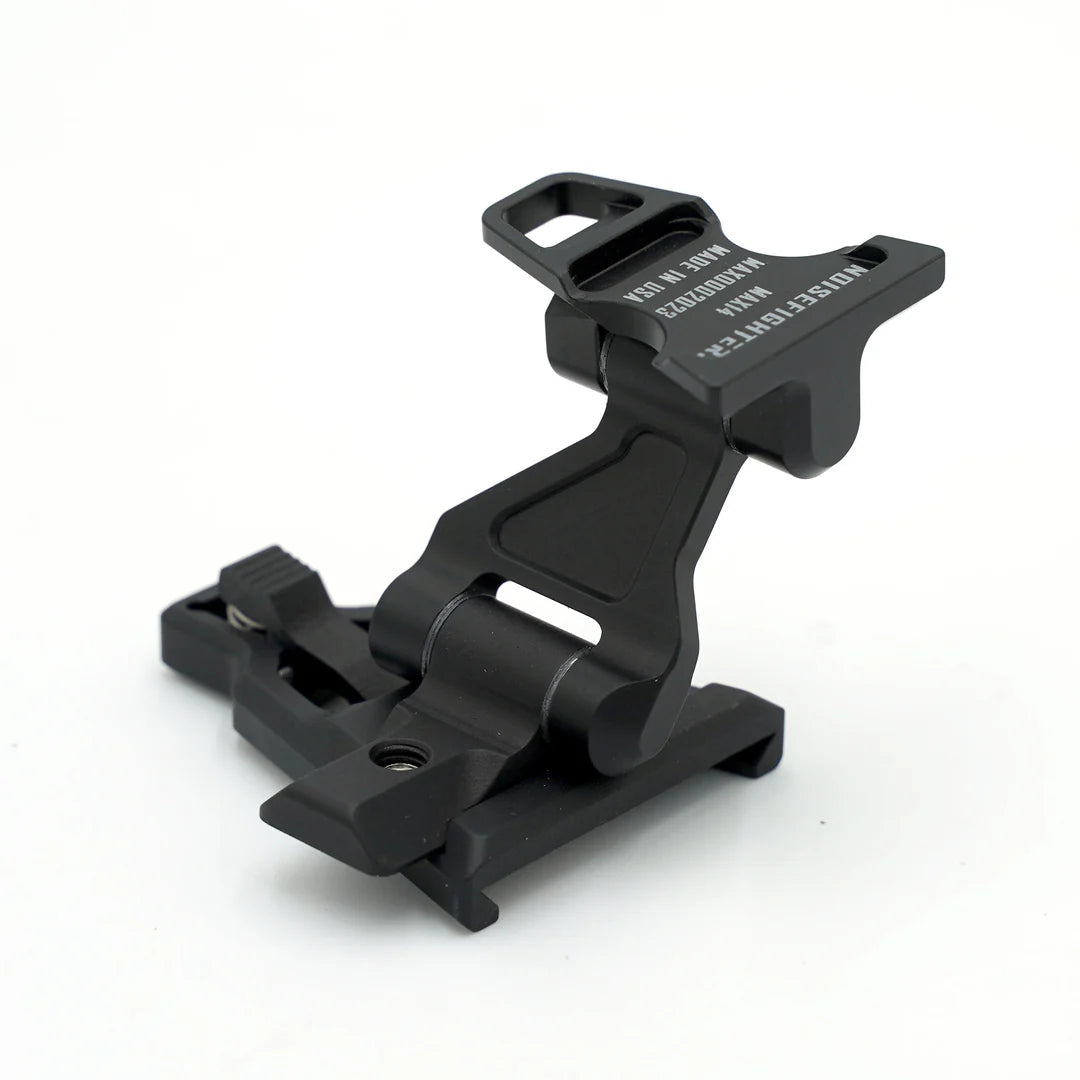

DMAX14 | Thermal J-Arm with Rotating DOVETAIL

DMAX14™ is a rigid, incredibly lightweight, and all-metal night vision J-arm for dovetail-equipped thermal monoculars such as the Infiray RH25 and Trijicon SkeetIR. It includes a rotating knuckle which provides a tight stow against the helmet and also allows the monocular to be temporarily swung away from the eye. At 1.4 oz total, it weighs less than a polymer milspec J-Arm, yet its structure is composed entirely of the highest-performing 7075-T6 aluminum alloy for industry-leading durability.

An intuitive, friction-based mechanism allows users to swing their monocular in front of either the left or right eye and perfectly adjust for interpupillary distance, while a slight rearward sweep of the inner arm helps position the monocular eyepiece closer to one's eye and provides greater compatibility for those with larger helmets. A tether point is also featured on the rear to keep the entire system secure. Attach a monocular, snap the complete assembly into a dovetail-style helmet mount like the Wilcox® G24, and enjoy. Introducing the new industry standard in night vision monocular mounting.

US-made protective vinyl camouflage wraps, made by NOCORIUM, are available for purchase as an accessory. You can buy the wraps separately right here. Be aware that the wrap was designed for the MAX14 (designed for the PVS-14 monocular), and some of the included vinyl pieces cannot be installed on DMAX14.

A no-questions-asked, transferable lifetime warranty is included. The Noisefighters DMAX14 is proudly made and assembled in the U.S.A. and was designed by a Marine Corps combat veteran of Iraq and Afghanistan.

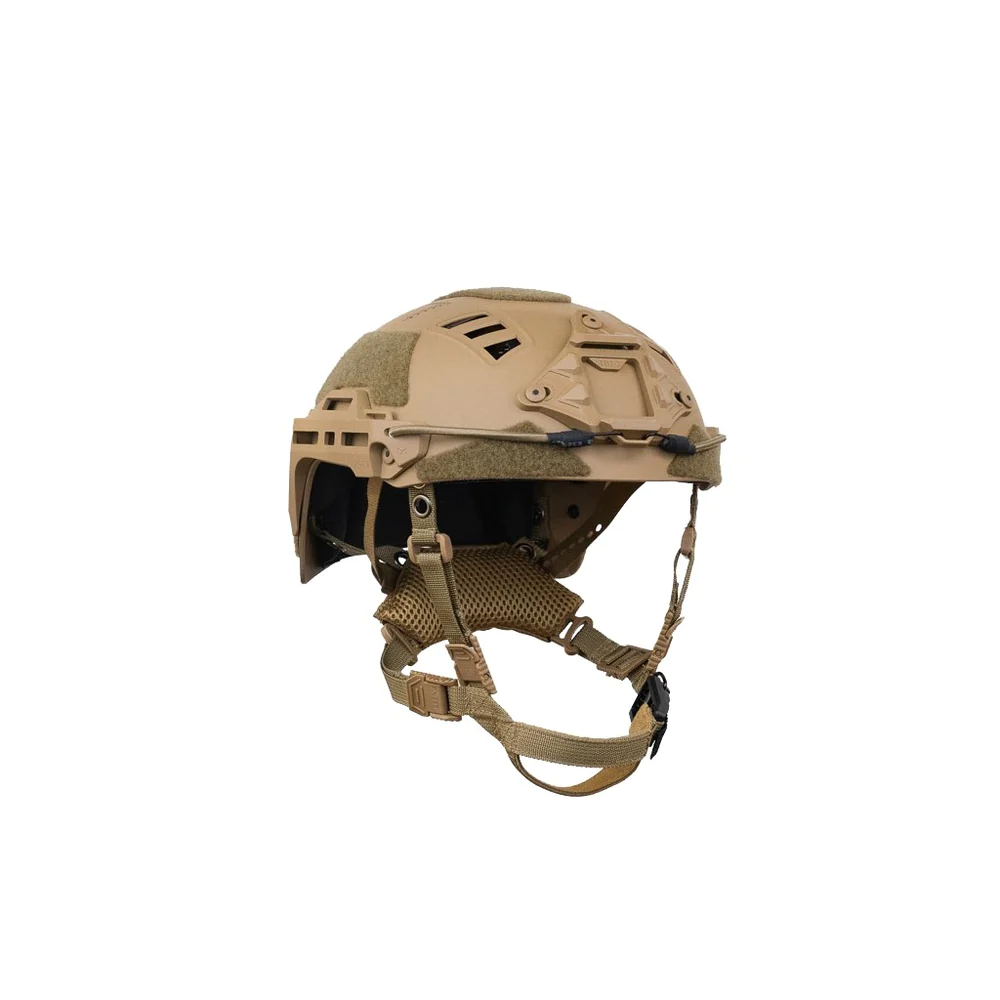

HHV Tactical Helmet ATE® Bump

The ATE Bump is the non-ballistic version of our ATE Ballistic helmets. Lightweight and modular, it provides the ideal bump helmet for various applications such as, Search and Rescue (SAR), Tactical Training, Hunting and Recreational Sports. This lightweight helmet weighs in at 1.4 lbs! Manufactured from a Polycarbonate blend the helmet offers blunt impact protection that far exceeds impact requirements not only for EN 1385: 2012, but also for AR/PD 10-02.

Our bump helmet is an essential piece of equipment for military members, law enforcement officers, EMS, and anyone else looking for a lightweight protective helmet that doesn't need the extra weight or protection from our ballistic helmets.

Easy NVG mounting to our ATE bump is accomplished with our A3S shroud that works with the majority of night vision mounts on the market. Making the ATE BUMP helmet the ideal night vision helmet platform.

WHAT'S INCLUDED

  • Above The Ear (ATE) high cut vented helmet shell made of a Polycarbonate blend.
  • Initial Impact Padding System (Base Impact layer plus 2 sizes of comfort pads to be layered as needed for a 100% custom fit) (Installation Video)
  • A3S Shroud (Adaptive 3-Hole Shroud) compatible with standardized NVG mounts from Wilcox to Norotos, M-LOK Tactical Helmet Accessory Rails utilizing the MAGPUL M-LOK® System (Rail System Video) with integrated hook bungees, and external hook and loop.
  • Quick Attach/Detach Magnetic Fidlock Suspension System. Allows for easy adjustment and single handed, gloved operation. (Strap Adjustment Video)
  • Module design for mission specific scalability with numerous HHV and 3rd party accessories. Picatinny Rails, Communications Rail Adapter Kits, Tactical and Ballistic Face Shields, Alternate padding and suspension kits. (Accessory Lineup Video)

PERFORMANCE & SPECS

Size, Coverage, System Weight (complete helmet minus pads; weight changes based on padding used):

  • M/L 163.35 in² / 1.13 lbs (516 g)
  • L/XL 170.74 in² / 1.23 lbs (560 g)

PROPER FIT

Watch Video: How to Measure Your Head

  • Start by wrapping a measuring tape around the circumference of your head, just above your ears and eyebrows. Where the tape overlaps is your measurement.
  • No measuring tape? No problem! Use a piece of string to mark the overlap, then measure the string.
  • Use the size chart to find where your optimal tactical helmet size should be.
  • Also, don't worry if you choose the wrong size. We offer an easy exchange policy!

Helmet Size (Circumference)

  • M/L 20 1/4" - 23 1/2"
  • L/XL 23 1/2" - 24 3/4"
