Description

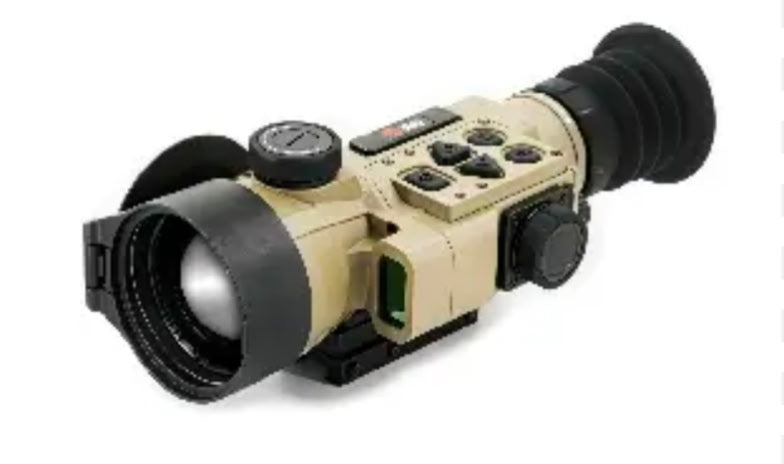

The Hybrid Compact (HCH50R) is the next evolution of the HYBRID series, combining advanced thermal performance with versatile functionality. It features a 50 mm F/0.9 lens and the industry’s first available 10 µm thermal sensor. The 640×480 InfiRay sensor with a ≤15 mK NETD rating delivers exceptional thermal sensitivity and clarity. The Hybrid Compact functions as a weapon sight, thermal clip-on, or handheld monocular. Its 3.5x native magnification and 60 mm eye relief provide a comfortable, immersive view. The “Fast Engine” low-latency architecture (15 ms) and 60 Hz refresh rate ensure a smooth, life-like image, improving target tracking and accuracy. A 1440×1080 AMOLED display provides a crisp image, while the integrated laser rangefinder and ballistic calculator adjust for drop based on target distance. Built-in photo and video recording with 64GB of internal storage lets you capture every detail.
Like other HYBRID series models, the HCH50R can be used as a clip-on thermal (with day scope magnification up to 10×) or as a dedicated thermal weapon sight. The industry’s first available 10 µm sensor increases pixel density by 44%, providing high resolution while reducing the overall size of the unit. Powered by a 18650 cell rechargeable battery , the HCH50R includes a Bluetooth remote for seamless clip-on control and a secure DLOC Picatinny rail mount for quick, repeatable attachment. The HCH50R comes with a durable hard case for reliable protection in the field.
FEATURES
- 10 µm high-performance thermal detector
- ≤15 mK sensitivity
- Magnesium housing
- Maximum detection range 3408 yards
- HD 1440×1080 AMOLED display
- High frame frequency: 60Hz or 30Hz
- Integrated 1,200yd laser rangefinder
- Multiple reticle types and color options
- Onboard ballistic solver
- Recoil activated video
- Standalone, handheld, and clip-on optic modes
- Multiple zero profiles and ranges
- Digital Zoom: ×1/×2/×4/×8
- Built-in 64 GB storage to support image capture and video recording
- Built-in Wi-Fi module
- Mobile device App compatible
- Built-in digital compass and gravity sensor
- Picture in Picture (PIP)
- Pixel calibration functions
TECH SPECS
| SENSOR | HYBRID COMPACT | HCH50R |
| Resolution | 640×480 | |
| Pixel Size | 10 μm | |
| Frame Rate | 30hz/60hz | |
| Sensor Sensitivity | ≤15 mK | |
| Image Processing | MATRIX III | |
| Core | Micro II 640 | |
| OPTICS | ||
| Objective Lens | 50 mm f/0.9 | |
| Magnification | 3.5× | |
| Digital Zoom | 8× | |
| Field of View | 7.3° × 5.5° | |
| Detection Range | 3408 Yards | |
| Display Type | 0.71-inch Large-format AMOLED | |
| Display Resolution | 1440×1080 | |
| Color Palettes | White Hot, Black Hot, Red Hot, Iron Red, Violet, Crimson, Viridian, Rainbow | |
| Reticle Types | 8 (7 Static, 1 DIY) | |
| Reticle Colors | Black, White, Red, Green, Blue | |
| Mounting System | Picatinny MIL-STD 1913 Rail | |
| Working Modes | Standalone, Handheld, Clip-on | |
| P.I.P. | Yes | |
| Rangefinder | Integrated 1,200yd LRF | |
| Eye Relief | 60 mm | |
| Diopter Range | -5 to +2 | |
| ELECTRONICS | ||
| Onboard Recording | Video, Recoil-Activated Video, and Image | |
| Onboard Storage | 64 GB | |
| Wireless Connectivity | Image and Video via App. | |
| Data/Power Connector | USB-C | |
| Power Supply | USB-C External, 18650 Batteries x2 (7+ Hours Each) | |
| Start Up Time | <10 Seconds, Instant from Standby | |
| PHYSICAL | ||
| Size | 9.87" × 4.05" × 3.07" | |
| Weight | 25.56 Oz | |
| ENVIRONMENTAL/WARRANTY | ||
| Warranty | 5 Years | |
| Housing Color | Cerakote TAN H-235 | |
| Housing Material | Magnesium | |
| Ingress Protection | IP67 | |
| Operation Temperature | -4°F~122°F | |
| Max. Recoil | 1000 g/s² (300 Win./7mm Mag) |
ACCESSORIES
The HYBRID COMPACT rifle scope ships with everything you need to get out and hunt.
- 50mm Objective Lens Cap
- Standard Rubber Eyeguard
- DLOC QD Mount for HYBRID COMPACT
- Adapter Bracket
- Screws for the Mount and Adapter
- Hex Keys and Spanner Tool
- Bluetooth Remote Control
- USB-C Cable
- 18650 Battery ×2
- USB-C Power Adapter
- Hard Case
- Lens Cloth
- User Manual
