Description

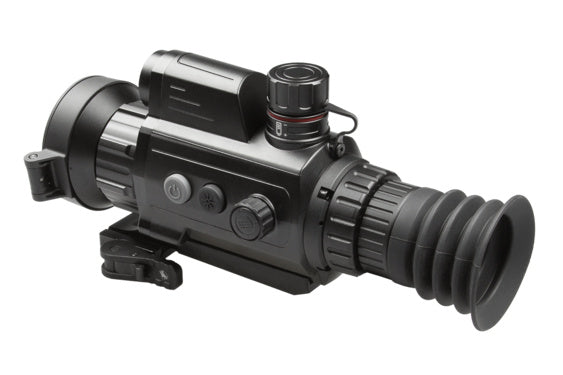

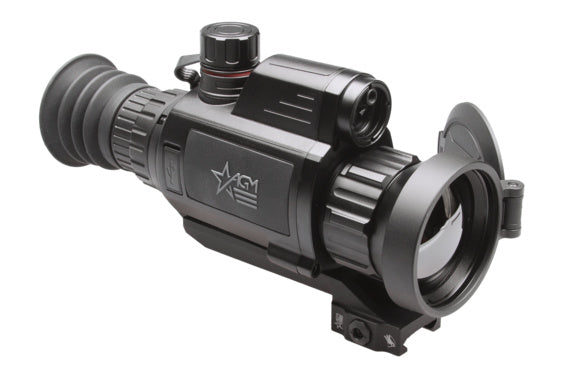

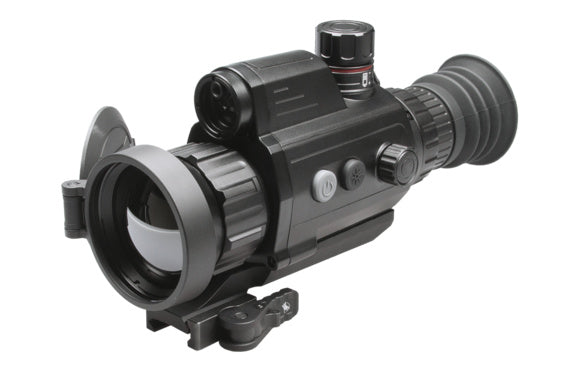

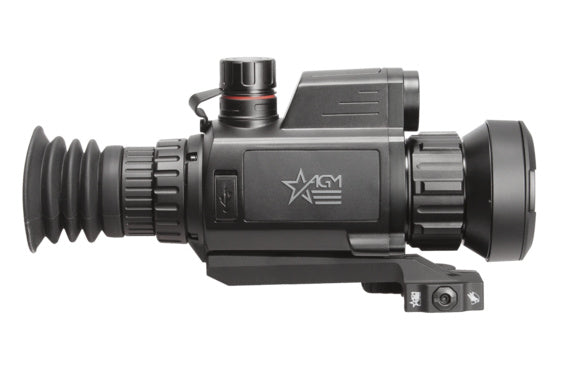

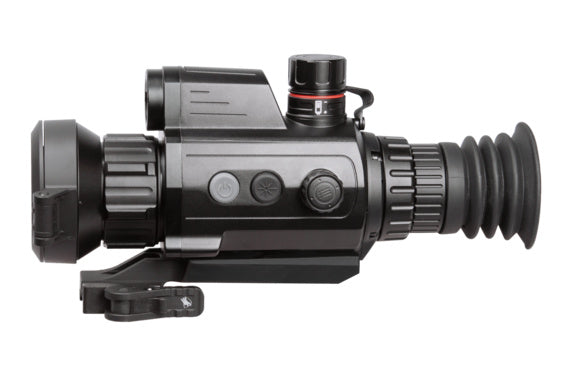

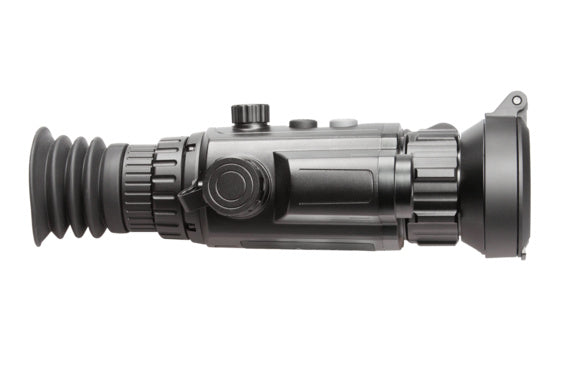

The Varmint V2 LRF series of thermal riflescopes from AGM utilize many of the features that shooters have come to know and love in the ever popular Rattler product family, but with one big addition: a 600-meter integrated laser rangefinder. This feature helps alleviate a common issue many shooters find themselves experiencing when hunting with any sort of digital optic, and that is the lack of depth perception that is inherent in optics utilizing a digital screen. The VarmintV2 pairs that LRF functionality with a 12 micron sub-20 milikelvin thermal detector, which works in conjunction with a high quality 1024x768 OLED display. The VarmintV2 LRF scopes are powered by a single, non-proprietary, 18650 rechargeable battery, which provides users with 5 - 6 hours of continuous use in the field.
The compact design of the VarmintV2 LRF even allows some dual-use functionality as a handheld monocular as well, which helps in surveying your surroundings. This transition is made extremely easy because every VarmintV2 LRF comes equipped with a high-quality American made American Defense Manufacturing quick detach mount. Pairing all these physical aspects with built-in recording, Wi-Fi compatibility through the AGM Connect app, external power options through the mini USB port, multiple reticle options, various color palettes, and 16GB of internal storage capacity, make the VarmintV2 LRF one of the most functionally diverse products in the AGM family.
- 12μm high-sensitivity thermal detector, NETD < 20mK
- Fast 50 Hz imaging
- 1x, 2x, 4x, 8x Digital zoom
- Adjustable color palettes
- Built-in precision eye-safe laser rangefinder
- High resolution OLED display
- Ballistic Calculator
- Various reticle types and colors
- Picture-in-Picture mode
- On-board video recording and image capture
- Built-in EMMC storage (16 GB)
- Wi-Fi data transmission
- Standby mode
- 5- 6 hours battery life (depending on model)
- External power supply compatibility
- Waterproof & shockproof
- AGM/ADM QRM included
- 5-year warranty
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
PACKAGE INCLUDES:
- AGM/ADM 2118 QRM
- 18650 Rechargeable Battery
- USB Cable
- Power Adapter
- Battery Charger
- User Manual
- Lens Cloth
- Carrying Case
SPECIFICATIONS
Detector Type | 12μm VOx Uncooled Focal Plane Array |
Resolution | 640 × 512 |
Refresh Rate | 50 Hz |
Response Waveband | 8 μm to 14 μm |
NETD | Less than 20 mk (@25°C, F#=1.0) |
Lens System | 50 mm; F1.0 |
Field of View (H×V) | 8.78° × 7.03° |
Magnification | 2.5× – 20× |
Digital Zoom | Miltiple 1×, 2×, 4×, 8× or Continuous |
Detection Range (6’ object) | 2,600 m/yd |
Eye Relief | 45 mm |
Monitor | 1024x768, 0.39 inch, OLED |
FFC (Flat Field Correction) | Auto, Manual, External Correction |
Palettes | Black Hot, White Hot, Red Hot, Fusion |
Highest Temperature Spot Tracking | Yes |
Scene Mode | Jungle, Recognition |
Reticle | 10 types, 4 colors, on/off |
Laser Range Finder | Up to 600 m, ±1 m accuracy |
Laser Wavelength | 905 nm |
Laser Safety Class | Class 1 |
Boresight Adjustment | Digital Controlled |
Boresight Increment | 0.15 mil / 0.51 MOA |
Ballistic Calculator | Yes |
WiFi Hotspot | Yes |
Sleep Mode | Yes |
Picture-In-Picture Mode | Yes |
Burn Prevention | Yes |
Built-in Storage | 16 GB EMMC |
Video Recording | On-board video recording |
Image Capture | Yes |
CVBS Output | Yes (via USB) |
Battery Type | One 18650 (3.7V) Lithium Rechargeable Batteries |
Battery Operating Time (WiFi off) | Over 6 hours |
Battery Capacity Display | Yes |
External Power | 5 VDC/2 A, USB Type-C |
Working Temperature | -20°C to 55°C (-4°F to 131°F) |
Protection Level | IP67 |
Drop Test Height | 1.5 m (4.9 ft) |
Dimensions (w/o mount) | 227 × 74 × 87 mm (8.9 × 2.9 × 3.4 in) |
Weight (w/o batteries) | 722 g (1.59 lb) |
