Description

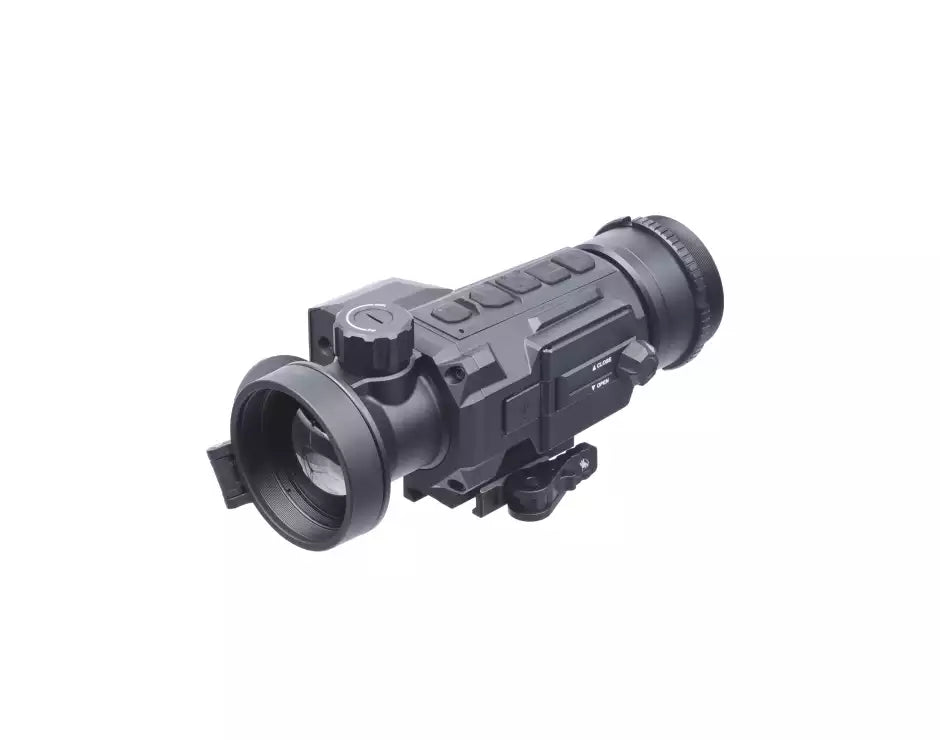

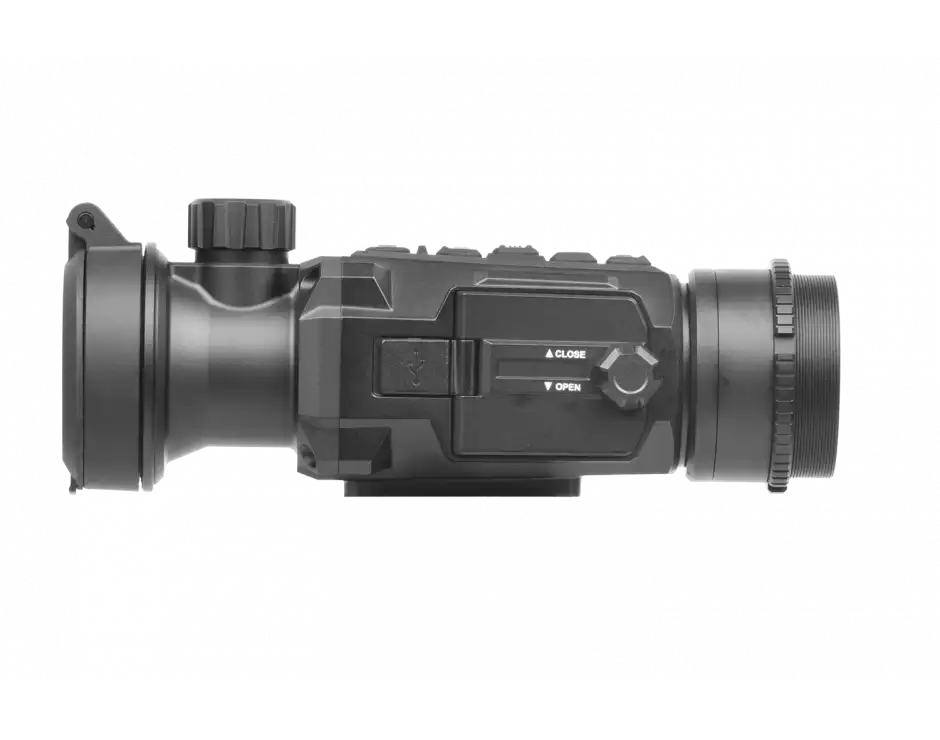

The Secutor LRF-C is a compact thermal imaging clip-on system with built-in precision laser rangefinder that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Equipped with a highly sensitive, 12μm thermal detector and 1024×768 OLED monitor, the AGM Secutor LRF-C provides a clear image under harsh environmental conditions including darkness, fog, smoke, dust, rain, snow, brush, camouflage, etc. The user-friendly interface, comfortable and ergonomic operating controls makes Secutor LRF-C use incredibly easy. The Secutor LRF-C can easily be attached in front of rifle scopes with magnification up to 10x for medium range use.
The built-in laser range finder of the AGM Secutor LRF-C is designed to determine the exact distance between the observer and the target. Measurement results are displayed in the scopes monitor. Four replaceable Li-Ion battery gives the device more than 6 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB to USB-C connector for a significant increase of operating time. The device is equipped with fast EMMC storage for on-board video/audio recording and image capture. Onboard Wi-Fi module allows live video streaming and video/image recording via mobile applications.
Warning: California's Proposition 65
- Quick conversion of daytime optics into thermal imaging scope
- 12μm thermal detector
- High sensitivity (NETD less than 20 mK)
- Fast 50Hz imaging
- Built-in laser rangefinder
- Adjustable color palettes
- High resolution OLED display
- On-board video/audio recording and image capture
- Built-in EMMC storage (16 GB)
- Wi-Fi data transmission
- Standby mode
- More than 6 hours battery life
- External power supply compatibility
- Waterproof & shockproof
- 5-year warranty
- Mount
- Four CR123A Battery
- USB Cable
- Lens Cloth
- Manual
- Carrying Case
SPECIFICATIONS
- Palettes - Black Hot, White Hot, Red Hot, Fusion
- Dimensions - 193 × 1104 × 74 mm (7.6 × 4.1 × 2.9 in) (w/o mount)
- Exit Pupil Diameter - 22 mm
- Video Recording
- Audio Recording
- Magnification - 1x
- Detector type - 12μm VOx Uncooled Focal Plane Array
- Response Waveband - 8 μm to 14 μm
- FFC (Flat Field Correction) - Auto, Manual, External Correction
- Highest Temperature Spot Tracking
- Standby Mode
- Refresh rate - 50 Hz
- Resolution - 640 × 512
- Laser Rangefinder - Up to 1000 m, ±4 m accuracy
- Laser Wavelength - 905 nm
- Detection Range (6' object) - 2,600 m
- Lens system - 50 mm; F1.2
- NETD - Less than 20 mk (@25°C), F#=1.0
- Field of view (H × X) - 8.8° × 7.0°
- Monitor - 1024x768, 0.39 inch, OLED
- Storage - 16 GB EMMC
- Capture Snapshot
- Battery Type - Four CR123A Lithium Battery
- Wi-Fi
- Battery Operating Time - Мore than 6 hours
- External power supply - 5 VDC/2 A, USB Type-C
- Operating Temperature Range - -30°C to 55°C (-22°F to 131°F)
- Weight - 0..63 kg (1.38 lb)
- Protection Level - IP67
