Description

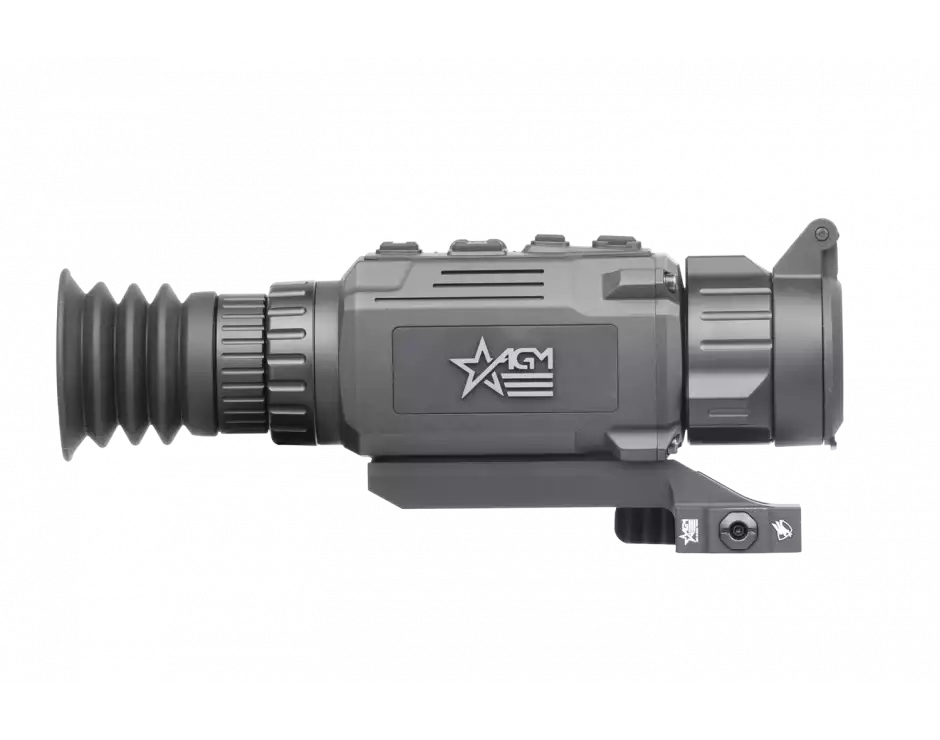

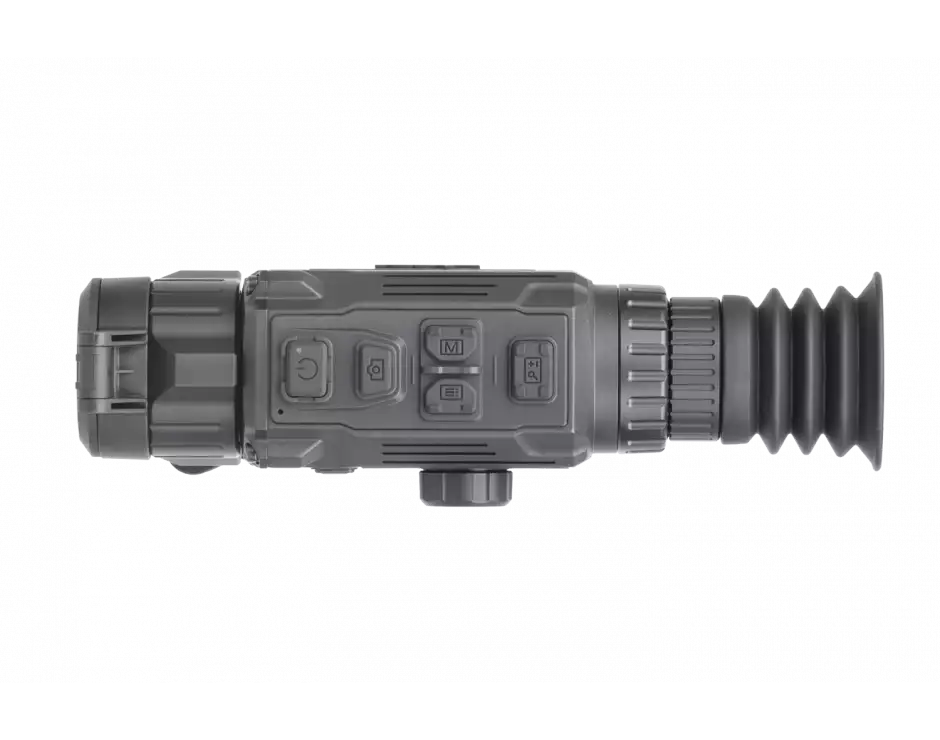

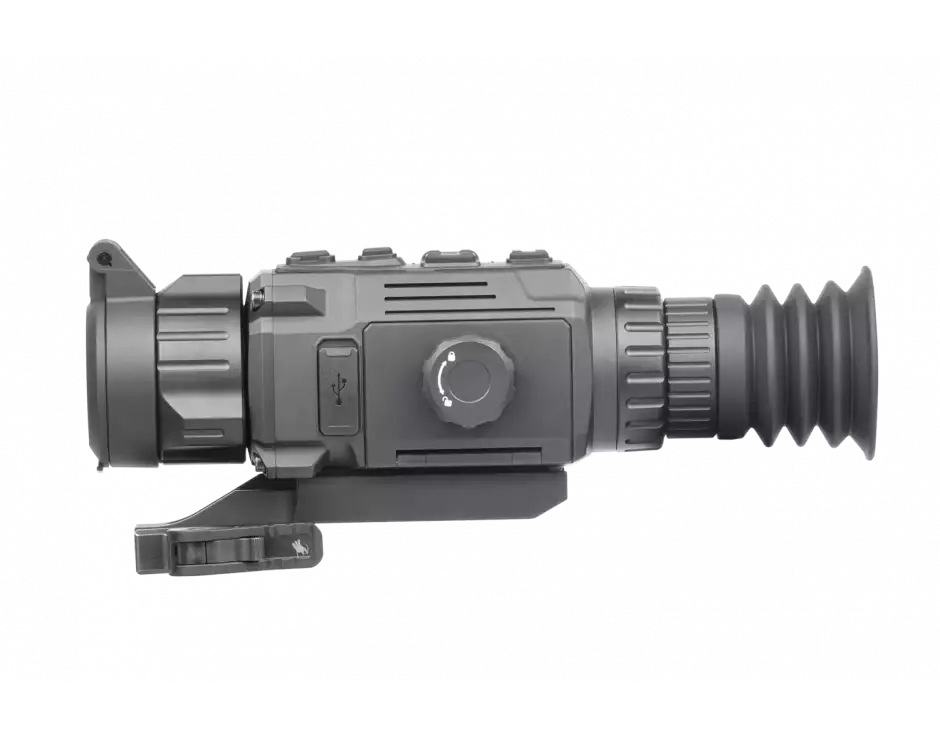

Rattler V2 25-320 is one of the junior models of the new line of second-generation thermal imaging sights from the American company AGM Global Vision. The budget segment device is built on a modern element base and has a full set of functions for shooting at short and medium distances. The declared detection range is up to 1200 meters. Thermal imaging technology is based on an advanced 320 × 256px IR sensor with an extremely high thermal sensitivity index for the industry NETD ≤20 mK. This sight is equipped with a long-focus germanium lens with an impressive multiplicity range (3.5-28x), which allows not only to quickly detect and accurately identify heat-contrast objects, but also to accurately aim weapons into the killing zone. To improve the accuracy of shooting, shooters are offered a large set of sighting nets with tactical options, a stadiometric rangefiner and PiP mode (picture-in-picture). A full set of multimedia functions will allow you to capture all the key moments on the video, there is also an option to automatically start recording. The Wi-Fi module supports the "Access Point" mode, providing instant video transmission to several gadgets. AGM Rattler V2 25-320 owner reviews are extremely positive. The compact sight is completely sealed, has a wide range of operating temperatures and confidently holds the recoil of even powerful sniper weapons.
Thermal imaging sight AGM Rattler V2 25-320 characteristics:
- The detection range of the growth figure (1.8x0.5 m) is 1200 m;
- IR sensor - FPA (Uncooled Focal Plane Array) 320 × 256px, 12 μm, NETD ≤20 mK, 50 Hz;
- Spectral sensitivity range - 8 - 14 μm;
- Germanium lens F25 / f1.0 with manual focusing from 7m;
- Optical magnification 3.5-28x, digital zoom 1x/2x/4x/8x;
- Spatial angle of the field of view FOV (Field of view) 7.0° x 5.3° or 12.2 x 9.3 m/100m;
- The diameter of the exit pupil is 6 mm, the output is 45 mm;
- Diopter correction function from -5 to +5 dptr;
- HD display 0.39-inch, OLED with a resolution of 1024 × 768 pixels;
- Display color palettes (White Hot, Black Hot, Red Hot, Fusion);
- Ten types of sighting grids, 4 backlight colors;
- Stadiometric rangefinder for 3 values;
- Wi-Fi module, video recording with sound, built-in memory card Built-in EMMC (16 GB);
- Branded mobile application AGM Connect;
- Automatic start of recording after the shot (SAR);
- PiP function (picture-in-picture) for precise aiming;
- Five user profiles of the shooting;
- One-shot shooting, the classic method according to the STP of the group of shots;
- Durable waterproof housing, moisture protection (class IP67);
- Power supply - modular replacement battery, external power supply (USB Type-C) 5 V DC/2 A;
- Battery life up to 11 hours;
- Impact resistance up to 6000 J (12 cal., 9.3x64, .375H&H):
- Operating temperature range -30°C... +55°C;
- Dimensions 219 × 68 × 67 mm, Weight 0.49 kg.
