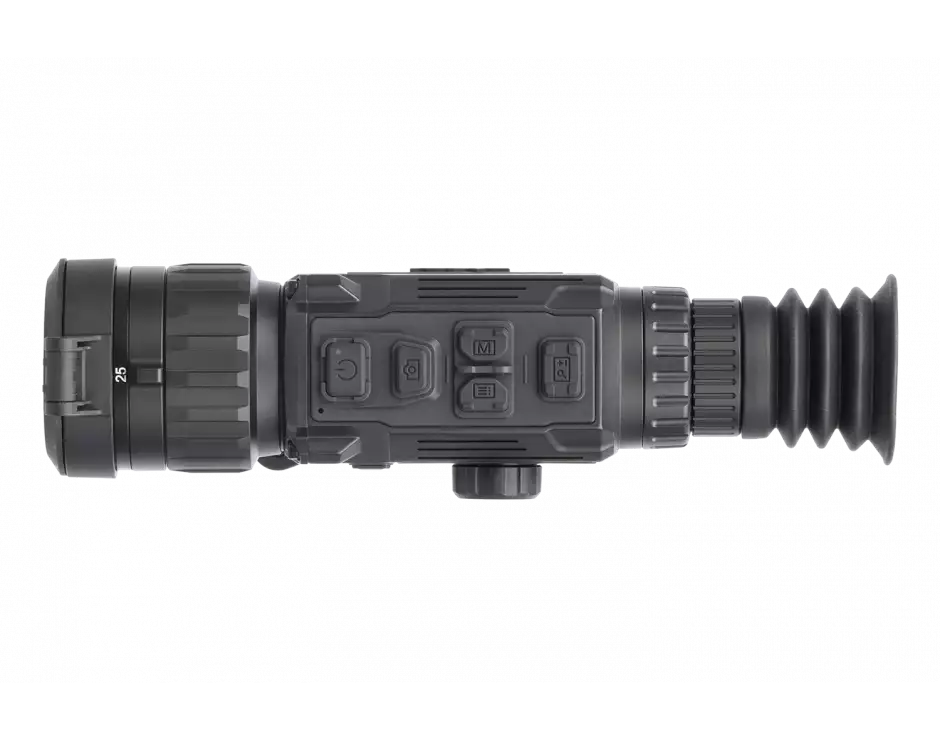

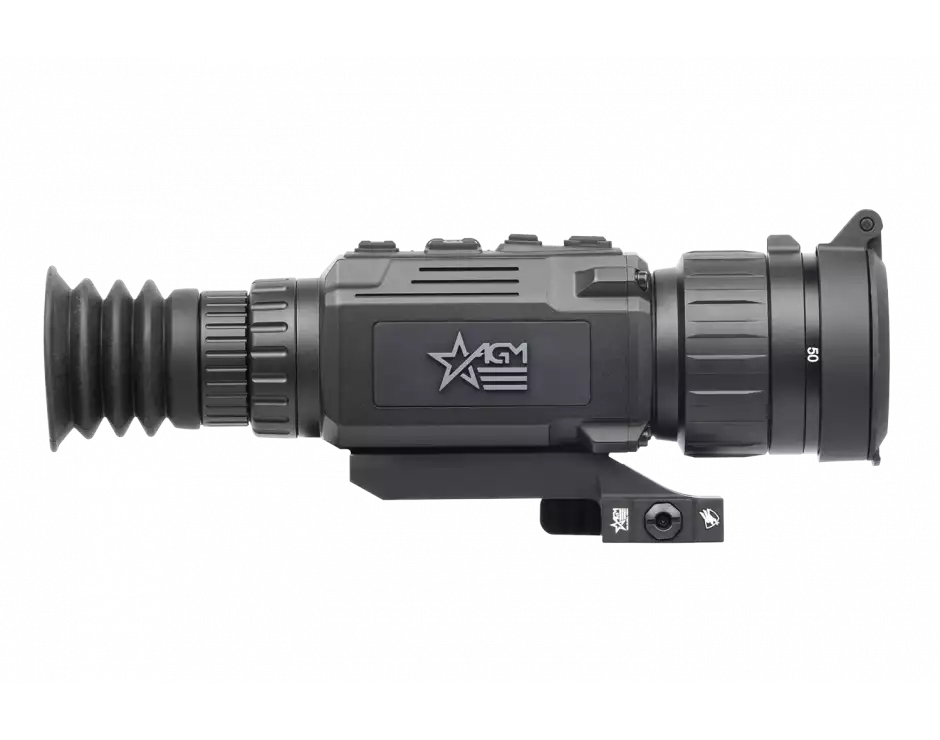

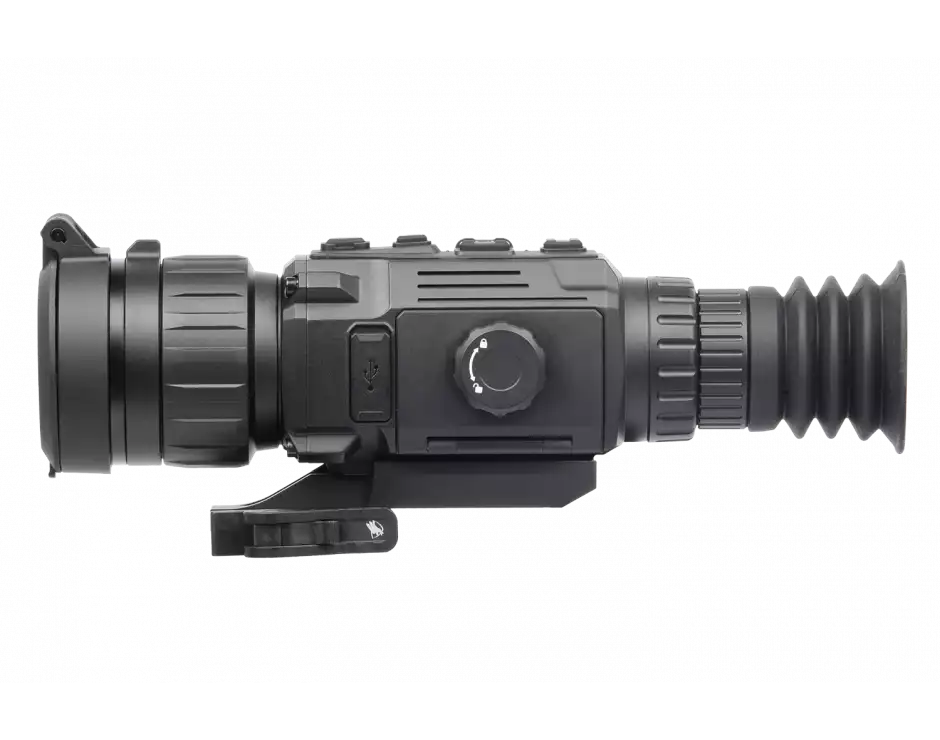

AGM CLARION 640

AGMSKU: CLAR35-640
No reviews

Write a review
| Ask a question
Price:
Sale price$5,495.00

Shipping calculated at checkout

Pickup available at Feral Texas Outdoors

Usually ready in 4 hours

Description

The NEW Clarion dual base magnification thermal scope is one of the most technologically advanced thermal scopes in the world. The new Clarion scopes were meticulously designed to solve one of the biggest problems many night hunters face, which is selecting which lens size/sensor configuration will provide the optical base magnification and field of view for each hunter’s primary application. The Clarion alleviates this concern by incorporating a dual-lens optical system that has the ability to mechanically alternate between a 35mm lens or a 60mm lens. This feature alters the base magnification and field of view with no degradation of the image resolution!

With the Clarion 640, Night Hunters can now use the benefits of a 35mm lens with a base magnification of 2x and a wider FOV (12.5° × 10.0° or 65 ft @ 100 yards) then quickly switch to a 60mm lens with a base magnification of 3x and a narrower FOV (7.3° × 5.9° or 38 ft @ 100 yards) to really make sure your positive identification and shot placement is on point!

This dual base magnification flexibility is a new evolution in electro-optics and it will provide hunters with the versatility to optimize their optic for the specific geography and animals which they are hunting whether it be hogs in the eastern fields, or coyotes in the western deserts!

This new design is also paired with the most sensitive thermal sensor temperature rating in its class, coming it at a mind-bending sub-20 milikelvin.

Although the Clarion implements an advanced new optical system, they didn’t cut any corners with any of the design elements that hunters have come to expect from the AGM brand, including: high-quality 640x512 12-micron thermal sensor, removable rechargeable battery, up to 8.5 hours of continuous battery life on a single charge (2 batteries included), 10 internal reticle options, 5 different customizable zeroing profiles, 10 different brightness and contrast settings, wifi hotspot capability, built-in recording w/sound and image capture storage, AGM Connect app compatibility, 4 different reticle colors, 4 color palettes, 5 image sharpness settings and a high-quality American Defense mount which work well with both AR and bolt-action shooting platforms.



Warning: California's Proposition 65


  • Dual focus objective lens - 35mm/60mm
  • 12μm thermal detector
  • Superior sub-20 milikelvin thermal sensitivity
  • Fast 50Hz imaging
  • High resolution OLED display
  • Adjustable color palettes
  • Various reticle types and colors
  • 1x, 2x, 4x, 8x digital zoom
  • On-board video/audio recording and image capture
  • Built-in EMMC storage (16 GB)
  • Shot Activated Recording (SAR)
  • Wi-Fi data transmission
  • Stadiametric rangefinder
  • Standby mode
  • 8.5 hours battery life (depending on model)
  • External power supply compatibility
  • Waterproof & shockproof
  • 5-year warranty

SPECIFICATIONS


Flat Field Correction (FFC)
Auto, Manual, External Correction
Palettes
Black hot, White hot, Red hot, Fusion
Dimensions
254 × 80 × 68 mm (10.0 × 3.1 × 2.7 in)
Exit Pupil Diameter
6 mm
Reticle
10 types, 4 colors, on/off
Boresight Adjustment
Digital Controlled
Distance Measurement
Yes (Stadiametric)
Scene Mode
Cold, Warm
Picture In Picture Mode (PIP)
Yes
Hotspot
Yes
Video Recording
Yes
Audio Recording
Yes
Magnification
2× - 16× / 3× - 24×
Detector type
12μm VOx Uncooled Focal Plane Array
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
640 × 512
Detection Range (6' object)
1800 m/yd / 3000 m/yd
Lens system
35 mm; F0.9 / 60 mm; F1.1
NETD
Less than 20 mK (25°C, F# = 1.0)
Field of view (H × X)
12.5° × 10.0° / 7.3° × 5.9°
Digital zoom
1×, 2×, 4×, 8×
Diopter adjustment range
-5 to +5 diopters
Focusing range
7 m to infinity / 10 m to infinity
Hot Track
Yes
Eye relief
45 mm
Display
0.39-inch, OLED, 1024×768
Storage
Built-in EMMC (16 GB)
Capture Snapshot
Yes
Battery Type
Replaceable and Rechargeable Li-ion Battery
Battery Life (Operating)
≥ 8.5 h (25°C, hotspot off)
External power supply
5 VDC, 2 A, USB Type-C
Operating Temperature Range
-30°C to +55°C (-22°F to 131°F)
Weight
0.84 kg (1.85 lb)
Protection Level
IP67
PACKAGE INCLUDES
  • Mount
  • Two Rechargeable Batteries
  • Battery Charger
  • USB Cable
  • Lens Cloth
  • Owners Manual
  • Carrying Case
EXPORT RESTRICTIONS:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
