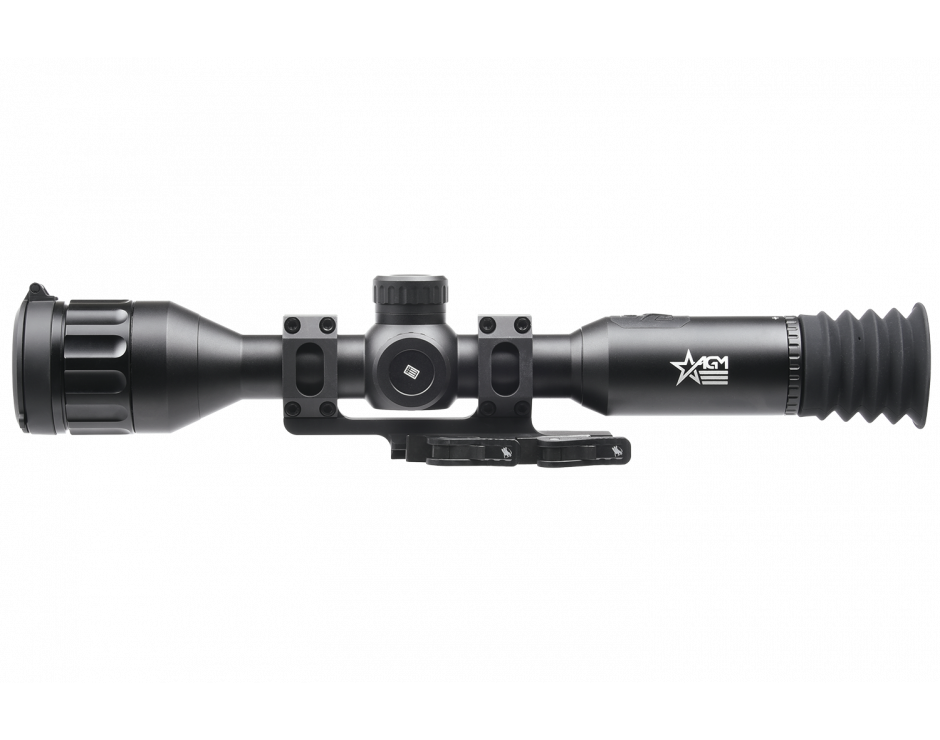

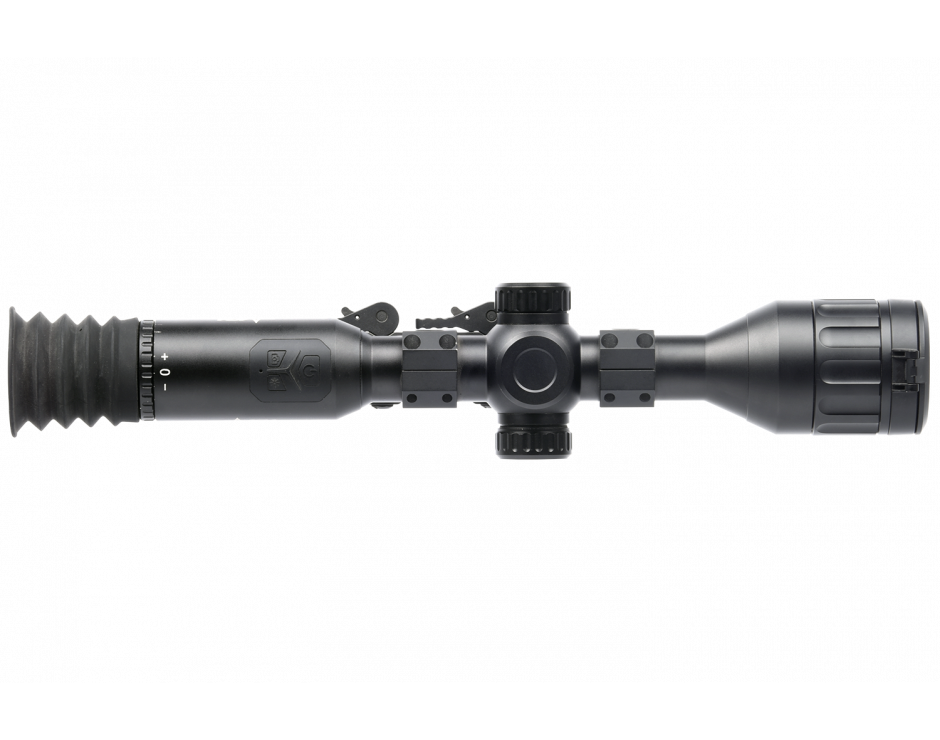

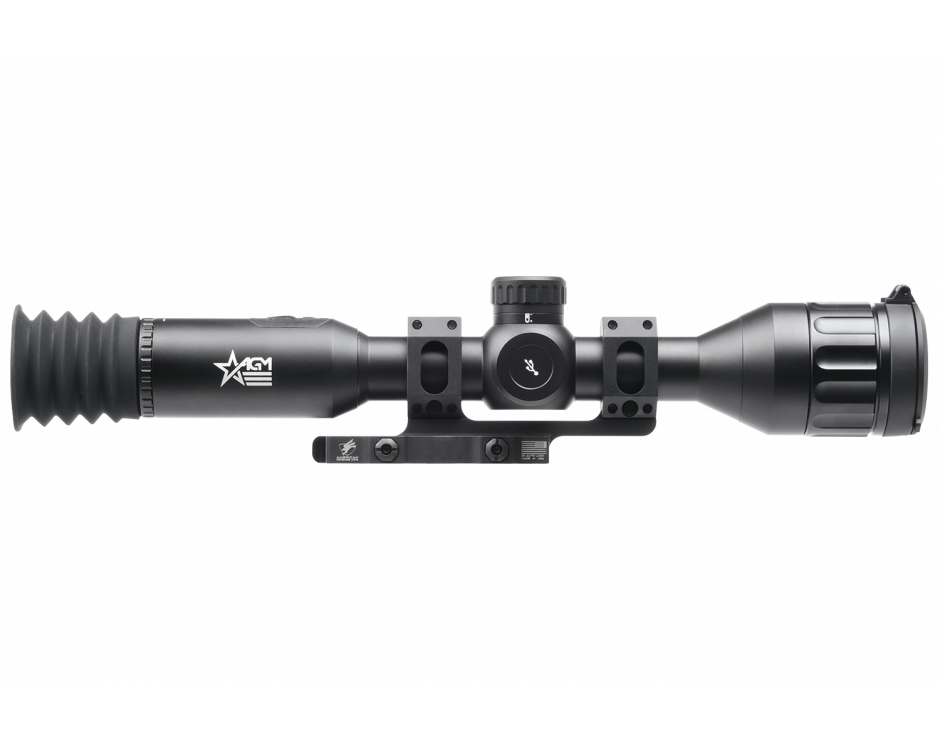

AGM Adder is the thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for your needs where 35mm lens designed for medium range shooting, while the 50mm lens model will be great for long range missions.



Riflescope has 384×288 high-sensitivity thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.



The scope is equipped with unique dual power system. Two builtin 18650 rechargeable batteries with one CR123A replaceable Lithium battery provide up to 15 hours of continuous operation. The device has fast 64GB EMMC storage for on-board video recording and image capturing. Shot Activated Recording (SAR) function allows you not to worry about having to start recording manually each time. Wi-Fi module for live video streaming and video/images recording via application are also available.

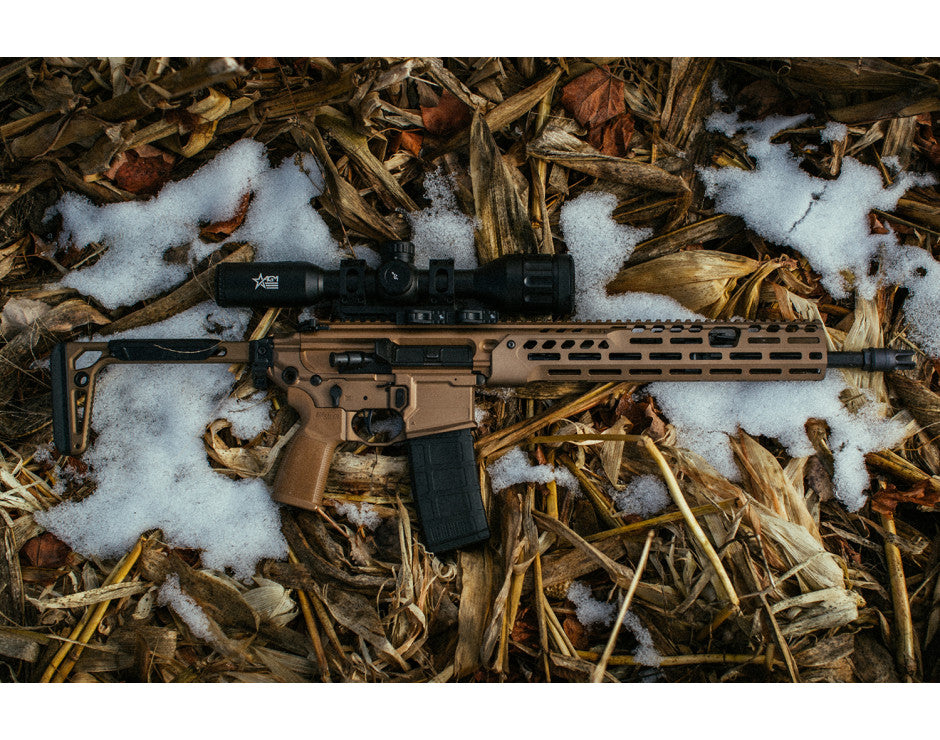

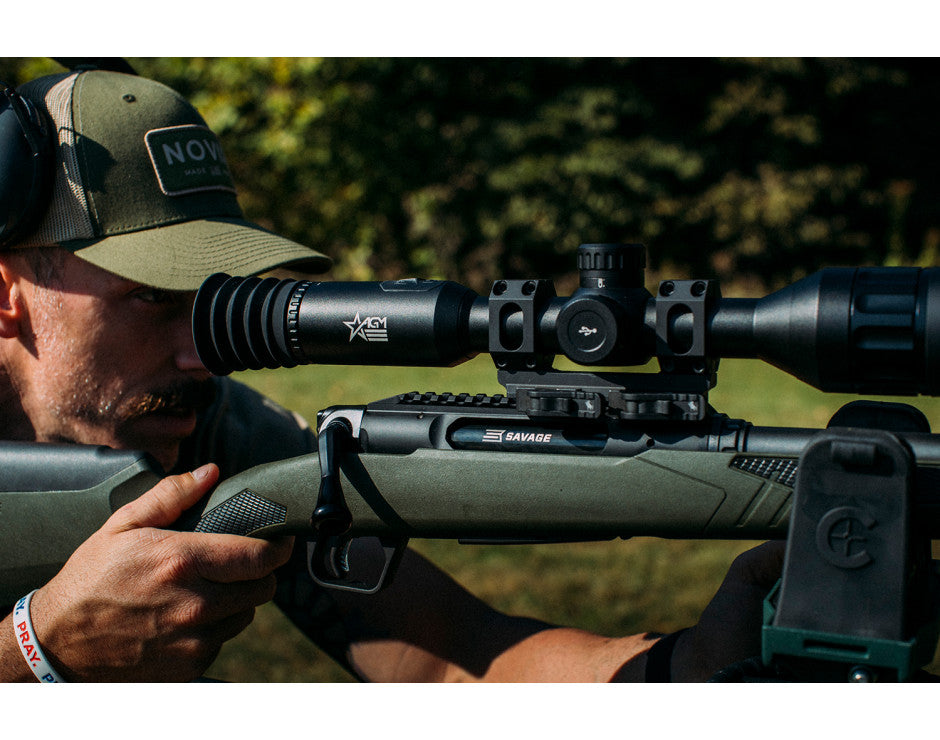

The Adder can be mounted to the weapon using standard scope mounts for 30mm tubes. The traditional-style 30mm tube meets the needs of professional hunters who value traditions and seek technological superiority, ensure an extreme detection range of up to 2600 meters.



Warning: California's Proposition 65



DATA SHEET



384×288 thermal resolution

12μm high-sensitivity detector

Fast 50 Hz imaging

High-resolution OLED display

1x, 2x, 4x, 8x digital zoom

On-board video and audio recording

Shot Activated Recording (SAR)

Wi-Fi data transmission

Fast 64GB EMMC built-in storage

Various reticle types and colors

Adjustable color palettes

Standby mode

Waterproof & Shockproof

Dual power system

Up to 15 hours continuous working

External power supply capability

Limited 3-year warranty

SPECIFICATIONS

Palettes



Black Hot, White Hot, Red Hot, Fusion



Reticle



5 types, 4 colors, on/off



Boresight Adjustment



Digital Controlled



Boresight Increment



0.09 mil / 0.31 MOA



Distance Measurement



Yes (Stadiametric)



Scene Mode



Jungle, Recognition



Picture In Picture Mode (PIP)



Yes



Video Recording



Yes



Defective Pixels Correction (DPC)



Yes



Uniformity Correction



Auto, Manual, External Correction



Detector type



12μm, Uncooled, 50 Hz, < 35 mK (25°C, F# = 1.0)



Standby Mode



Yes



Resolution



384 × 288



Detection Range



2600 m/yd



Snapshot



Yes



Lens system



50 mm; F/1.0



Optical magnification



4× - 32×



Field of view (H × X)



5.4° × 4.0°



Digital zoom



1×, 2×, 4×, 8×



Diopter adjustment range



-5 to +5 dpt



Eye relief



≥ 60 mm



Display



1024×768, 50 Hz, OLED



Battery Type



Two 18650 Rechargeable Batteries (built-in) and one CR123 Battery



Wi-Fi



Yes



CVBS Output



Yes (via USB)



Battery Life (Operating)



Up to 15 hr



Power supply



5 VDC/2 A, USB Type-C Supports QC3.0



Degree of Protection



IP67



Weight



970 g ( 2.14 lb)



Overall Dimensions



420 × 78 × 82 mm (16.5 × 3.1 × 3.2 in)



EXPORT RESTRICTIONS:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
