COMES WITH QD MOUNT
The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a ≤15 mK NETD sensor for an incredibly detailed and precise image. The 1,300-yard capable laser rangefinder on the ACE is integrated directly into the 50 mm germanium objective lens. In addition to streamlining the body design and reducing bulk, this allows for improved horizontal alignment of the infrared laser with the viewing system.

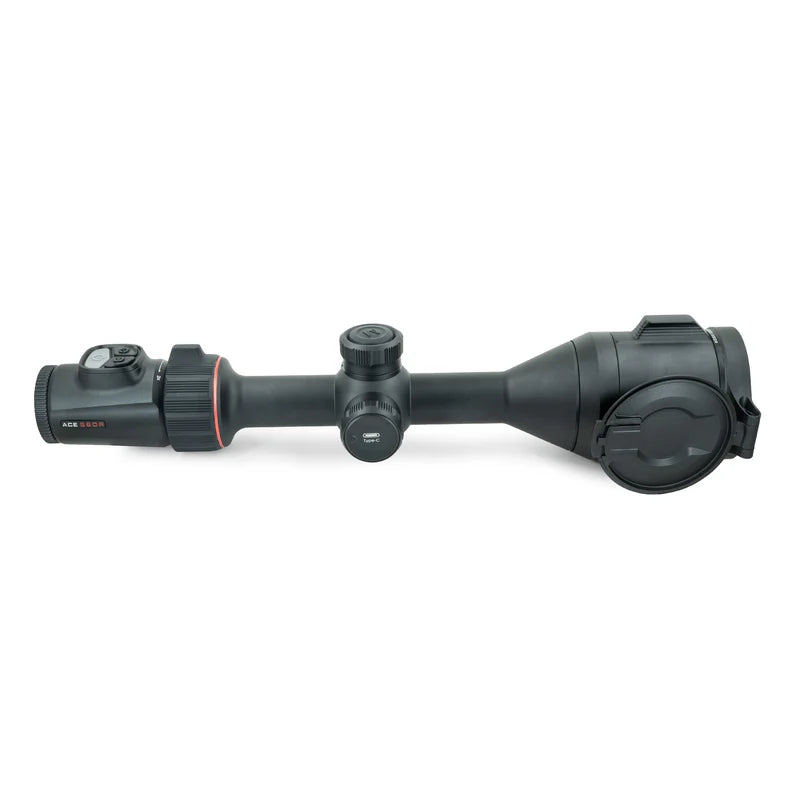

New for 2025, the ACE S60R brings the best-available thermal sensor resolution (1280x1024) to the most versatile thermal weapon sight platform on the market. With a 2x native (base) magnification, a12x digital zoom and a 1-3x Optical Magnifier, the magnification range delivers fantastic image quality at all ranges.

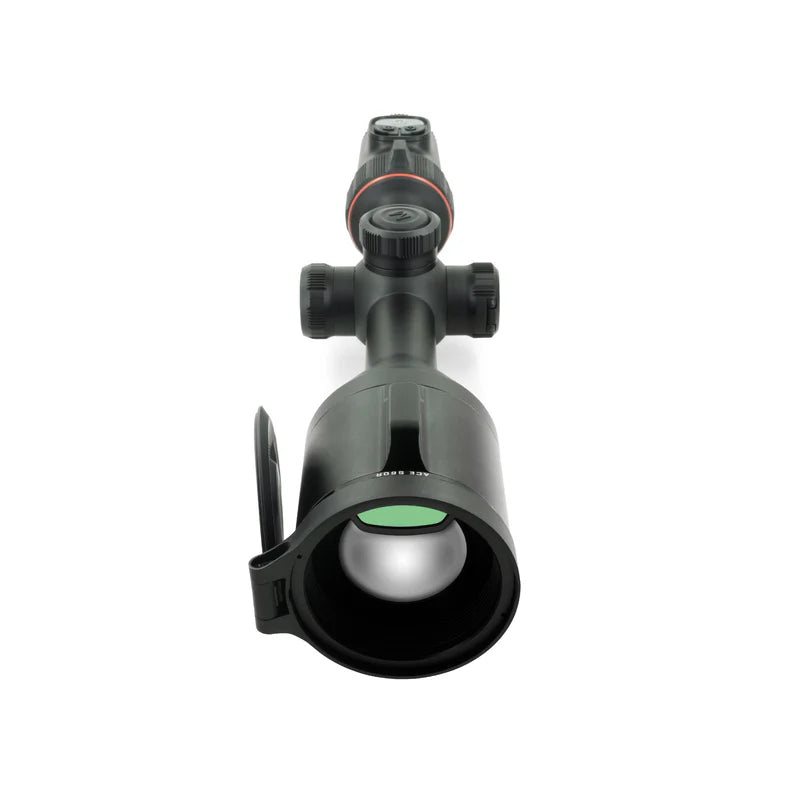

- Lens-integrated laser rangefinder adds rangefinding capability to the optic and better laser alignment without adding bulk.
- A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
-
High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
-
Simplified controls offer improved ergonomics and a better user experience in the field.

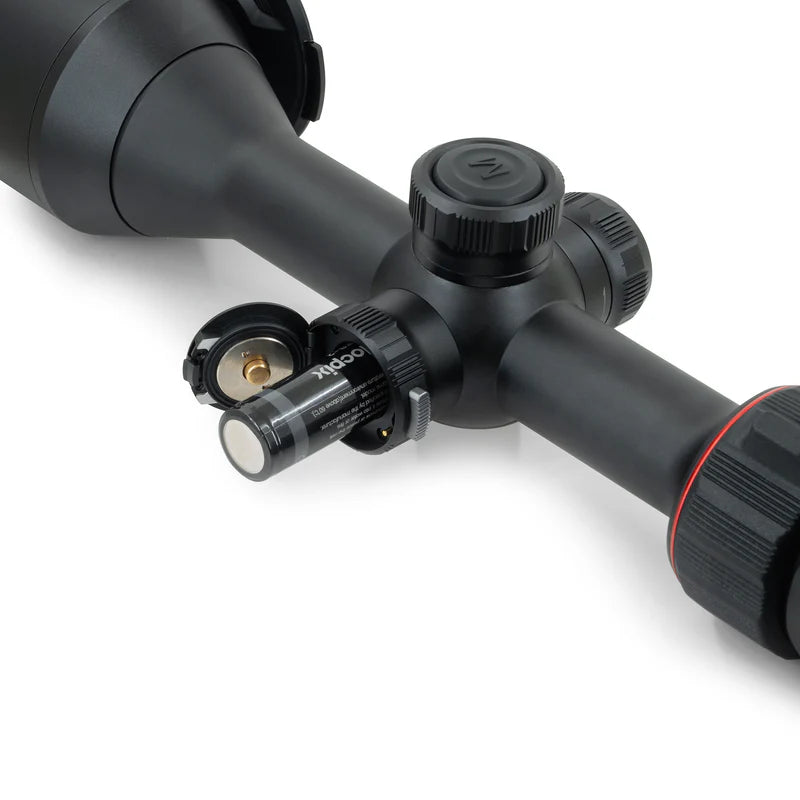

- Uses common 18650 style rechargeable batteries.
- A ballistic calculator function displays bullet drop values based on the laser rangefinder input data and a user-customized cartridge profile.
- Charge through the unit with a unique lock-out USB-C port design.
Specifications
Sensor
| Feature |
Details |
| Sensor Type |
Nocpix 1280 Thermal Sensor |
| Resolution |
1280 × 1024 |
| Pixel Size |
12µm |
| Thermal Sensitivity (NETD) |
<15 mK |
| Frame Rate |
50 Hz |
| NUC Modes |
Manual, Automatic, Semi-Automatic |
| Technology |
Thermal Imaging |
Optics
| Feature |
Details |
| Objective Lens |
60mm Germanium Lens |
| Objective F-Number |
F1.0 |
| Optical Magnification |
2x |
| Digital Magnification |
Up to 12x |
| Field of View (H × V) |
14.7° × 11.7° |
| Eye Relief |
50 mm |
| Diopter Adjustment |
-5D to +5D |
| Focus System |
Manual Focus |
| Detection Range |
Up to 3,400 Yards |
Display
| Feature |
Details |
| Display Type |
AMOLED |
| Display Resolution |
2560 × 2560 |
Laser Rangefinder
| Feature |
Details |
| Rangefinder |
Integrated Laser Rangefinder |
| Max Range |
1,300 Yards |
Recording & Storage
| Feature |
Details |
| Onboard Recording |
Yes |
| Image Capture |
Yes |
| Video Output |
Yes |
| Storage Capacity |
64 GB Built-in |
Features
| Feature |
Details |
| Ballistic Functions |
One-Shot Zero |
| Picture-in-Picture (PIP) |
Yes |
| Color Palettes |
White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian |
| Wi-Fi |
Yes |
| Mobile App Support |
Yes |
| User-Updatable Firmware |
Yes |
| Standby Mode |
Yes |
| Startup Time |
Less than 10 Seconds (Instant from Standby) |
Power
| Feature |
Details |
| Power Sources |
Built-In Battery Pack, Replaceable 18650 Battery, USB-C External Power |
| Battery Life |
6+ Hours |
| Connector Type |
USB-C |
| Power/Data Port |
USB-C |
Durability
| Feature |
Details |
| Protection Rating |
IP67 Waterproof |
| Recoil Rating |
1000 g/s² (.300 Win Mag / 7mm Mag Rated) |
| Operating Temperature |
-4°F to 122°F |
Physical Specifications
| Feature |
Details |
| Housing Material |
Aluminum Alloy |
| Mounting Interface |
QD Picatinny |
| Weight |
45.9 oz |
| Length |
15.35 in |
| Width |
3.54 in |
| Height |
2.76 in |
| Country of Manufacture |
China |
Key Features
- 1280×1024 / 12µm thermal sensor
- Industry-leading <15mK thermal sensitivity
- Massive 3,400-yard detection range
- 2560×2560 AMOLED display
- Integrated 1,300-yard laser rangefinder
- Built-in recording and image capture
- 64GB internal storage
- Multiple color palettes
- Wi-Fi and mobile app connectivity
- QD Picatinny mount
- Dual battery system with USB-C external power support
- IP67 waterproof rating
- 5-Year Warranty
