Description

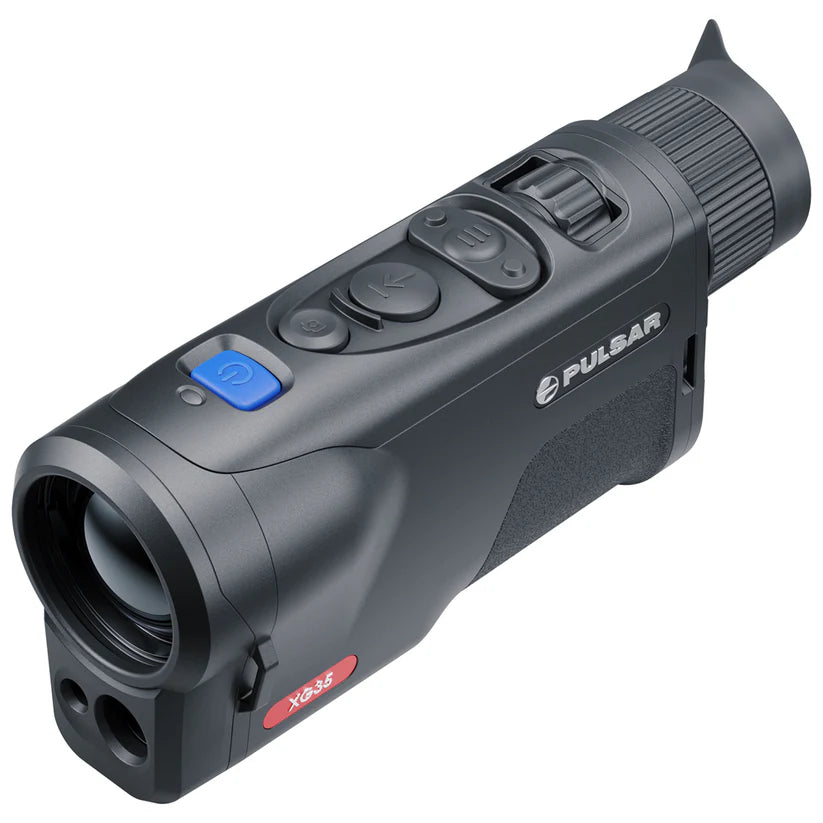

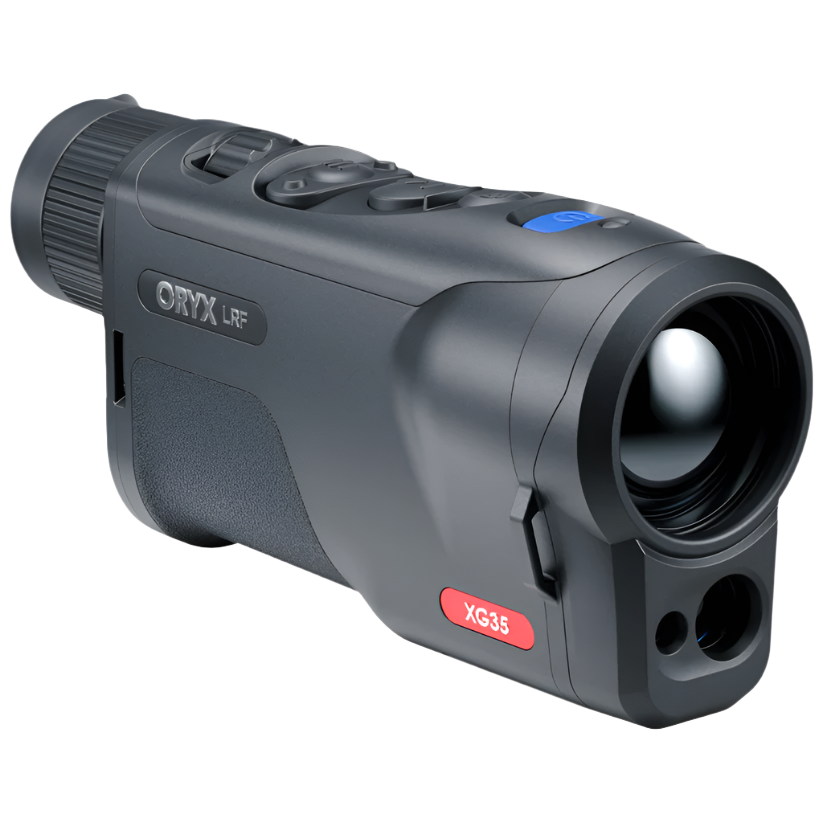

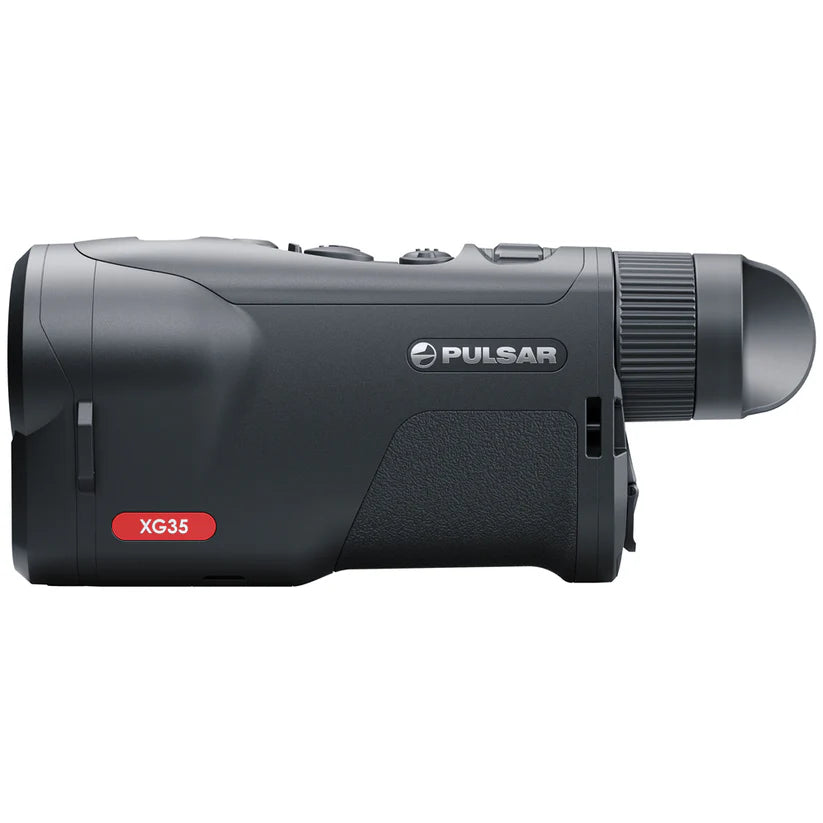

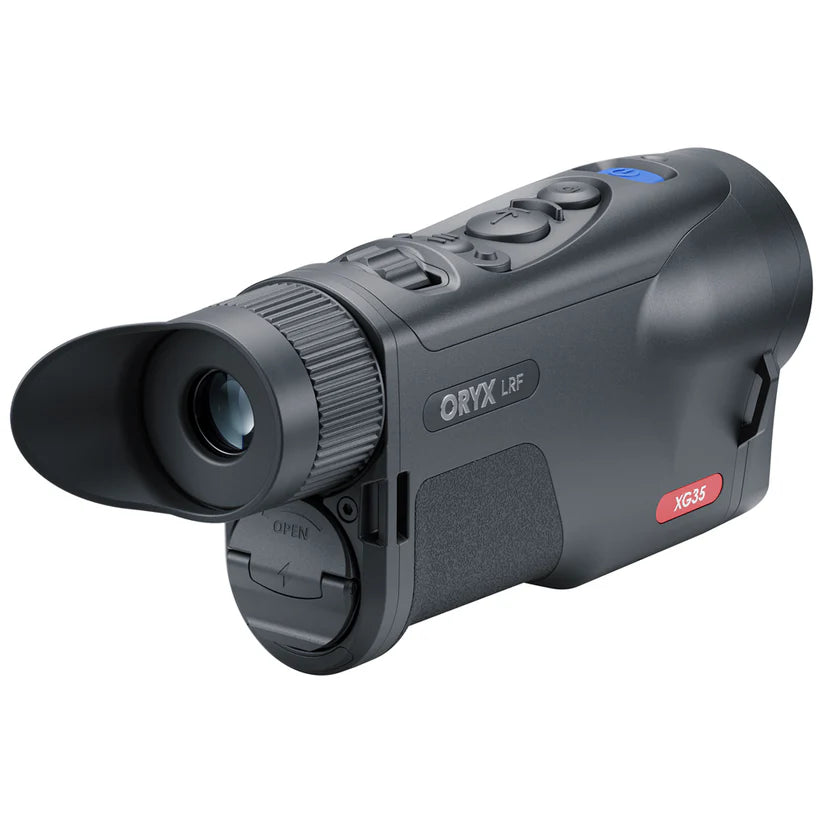

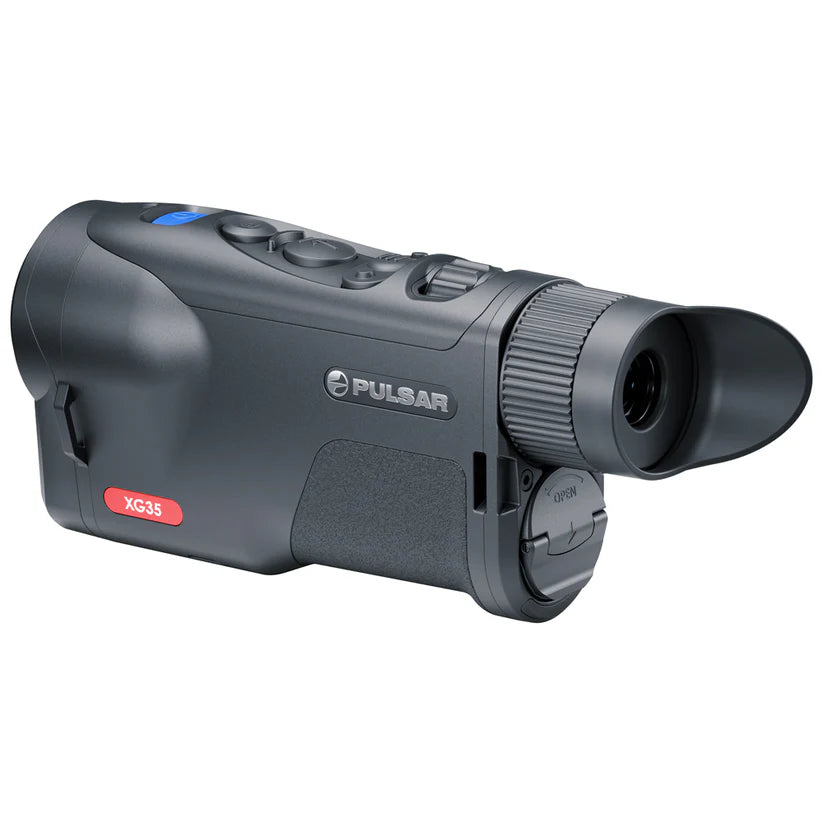

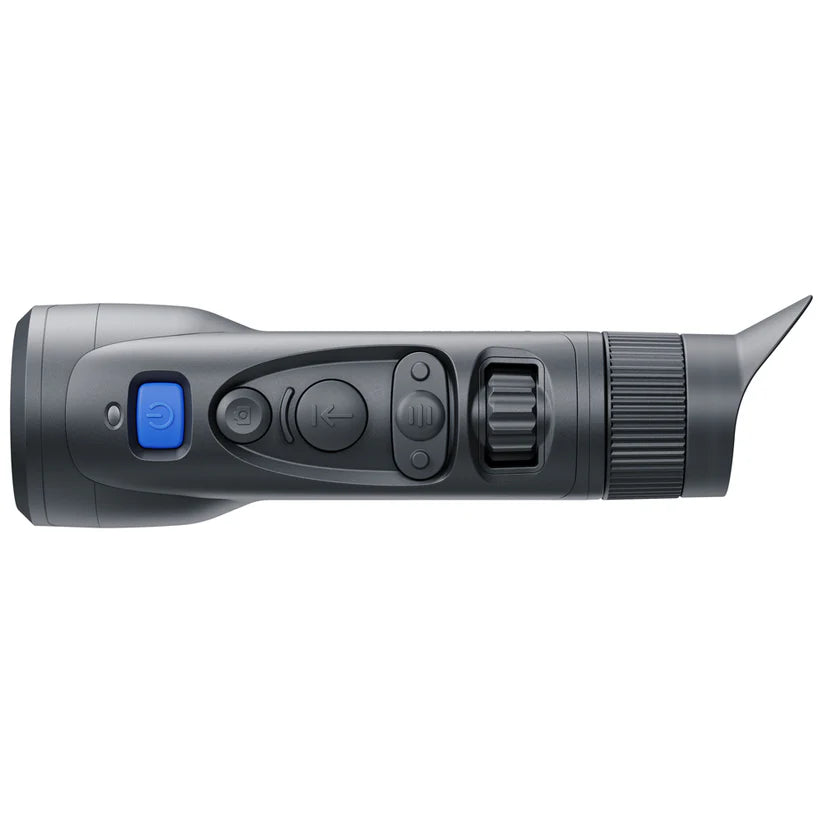

The Oryx is designed for constant, often hard use. Its magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, its metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.
Customization & Display Settings
Color Palettes and Image Enhancement
Variable Magnification
Featuring a powerful 2.5x to 20x digital zoom, the Oryx LRF XG35 delivers exceptional clarity for both short- and long-range observations. The 35mm F1.0 lens provides a broad field of view (12.5°), enhancing target acquisition and situational awareness. Its high-resolution 1024x768 AMOLED display ensures crisp thermal imaging, even in extreme conditions.
A selection of 8 color palettes
A choice of 8 color palettes allows the user to optimize the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification, while Red Monochrome, Sepia and Violet are most suitable for long observation in the night.
Long Range Laser Rangefinder (LRF)

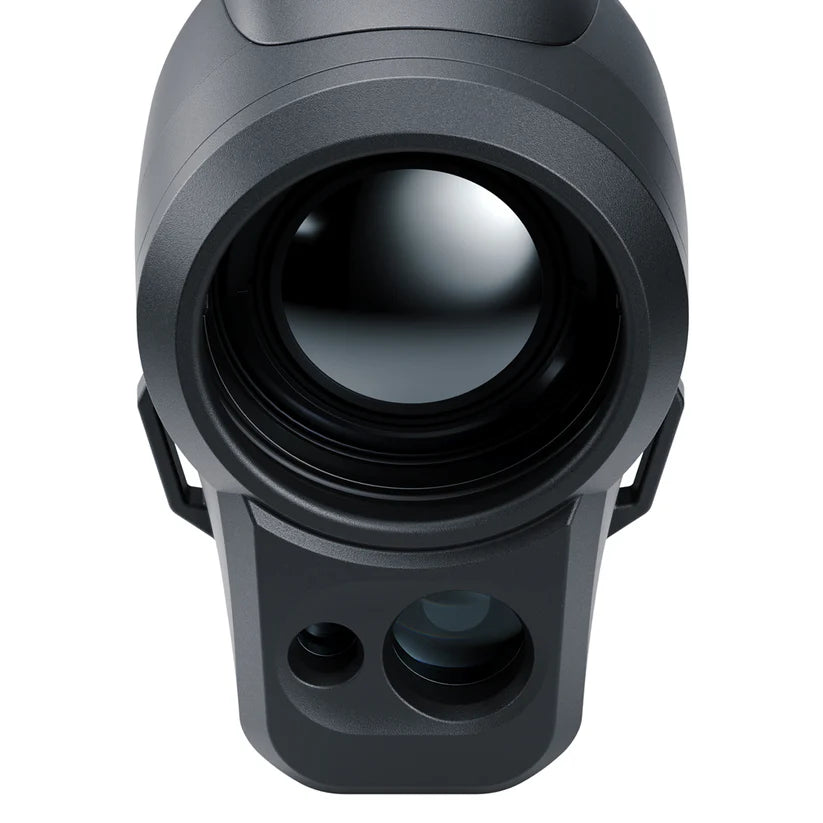

The Oryx LRF XG35 is equipped with an integrated laser rangefinder that provides precise distance measurements up to 1640 yards (1500 meters). This feature is ideal for hunters, law enforcement, and search and rescue teams who need reliable ranging in low-visibility environments. The SCAN mode allows continuous distance tracking, ensuring accurate measurements for moving targets.
Stream Vision 2 App Support for iOS and Android
The built-in Wi-Fi module connects the device with either Android or iOS smartphones using the Stream Vision 2 mobile application. This combination opens up a wide range of options: wireless device software updates, real-time image transmission to the mobile device screen, remote control digital functions and much more. Users registered in the application are provided with cloud storage space for photos and videos taken with the device.
High-contrast AMOLED Display
A high-contrast AMOLED display has an improved colour rendering, power saving and quick-response, providing sharp and smooth images observing even under frosty conditions.
Weather Resistance & Durability
Built to withstand the elements, the Oryx LRF XG35 is IP67 rated, making it completely dustproof and capable of withstanding water immersion up to 3 feet for 30 minutes. Designed for rugged environments, it functions reliably in temperatures ranging from -25°C to +40°C (-13°F to +104°F), ensuring peak performance in all conditions.
Main
- Sensor640x480 pix. @ 12 µm (sNETD <20 mK)
- Objective lensF35/1.0
- Magnification, x2.5 - 20
- Field of view (HxV), degrees12.5
- Detection range, yds1950+
Sensor
- Type uncooled
- Resolution, pixels 640x480
- Pixel pitch, µm12
- NETD, mK<40
- Frame rate, Hz50
- sNETD, mK<20
Optics
- Objective lens F35/1.0
- Magnification, x 2.5-20x
- Field of view (HxV), degrees 12.5
- Eye relief, mm N/A
Display
- Type A MOLED
- Resolution, pixels 1024x768
Range Performance
- Detection range, yds 1950+
Video Recorder
- Video / photo resolution, pixel960x600
- Video / photo format .mp4 / .jpg
- Built-in memory, GB 64
Wi-Fi
- Wireless Protocol Wi-Fi
- Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
- Frequency, GHz 2.4 / 5
Environmental Characteristics
- Degree of protection, IP code (IEC60529) IP67 (fully waterproof, shockproof, dustproof)
- Operating temperature range, °F-13 - +104
Connections and Compatibilities
- Mount, type 1/4"
- Supported Application Stream Vision 2
Power Supply
- Output voltage, V3.0 – 4.2

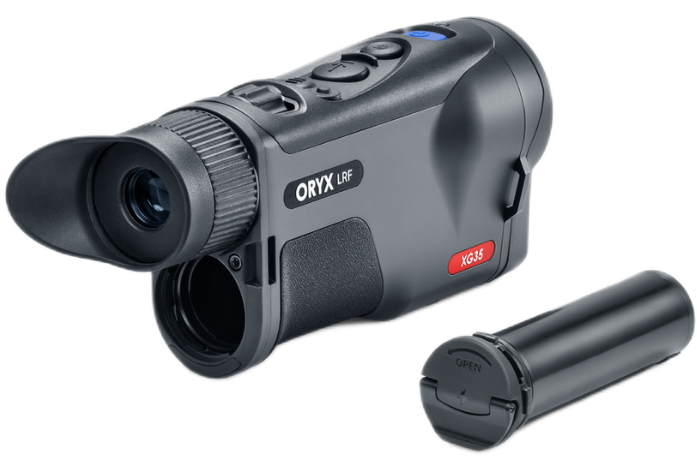

- Battery type Li-Ion Battery APS5 (Internal & External)
- Capacity, mAh 4900 mAh
- Operating time on battery pack (at t=22°C), h *12
- External power supply, VUSB-C
Weight & Size
- Body material Magnesium alloy
- Dimensions, in 7x2x3
- Weight, oz 17.64 (with battery)
