Description

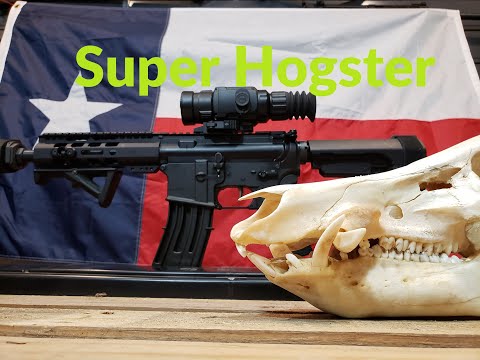

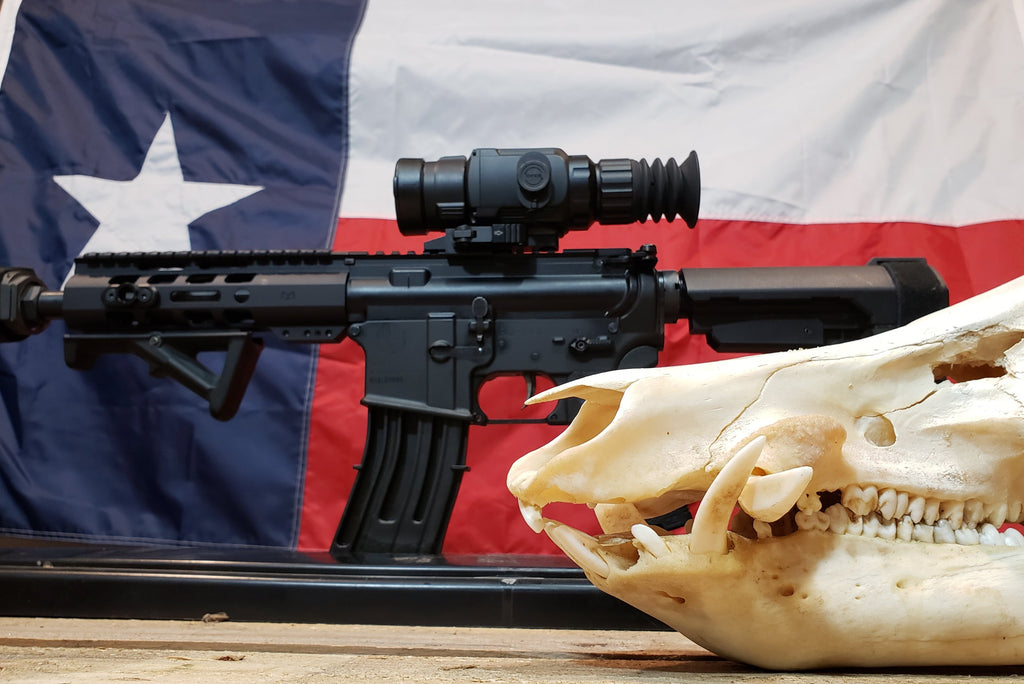

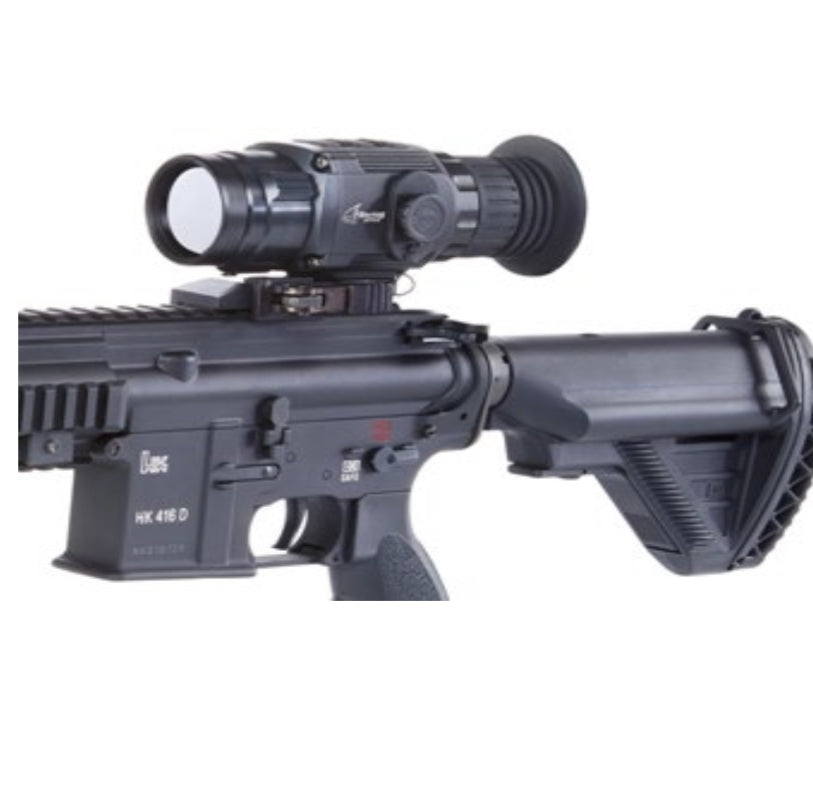

Bering Optics SUPER HOGSTER A3 with Standard QD mount or LaRue Tactical QD mount
FEATURES:
· Superior for medium and Long Range engagements
· Simulates 640x512 resolution with native 2.9x magnification
· Picture-in-Picture function- 2X multiplied image on a top of the display with ability to save PIP after scope shut off
· Automatic shutter based thermal VOx core with Auto or Manual calibration
· Switchable image polarity: White Hot / Black Hot / Red Hot / Colored Hot
· 32GB internal memory
· 8 reticle patterns including with 4 color options for each reticle pattern
· Manual control of the image sharpness and screen brightness
· Ability to save 4 profiles of zeroing calibration data
· Wifi capability
· Selectable Auto NUC or Manual NUC
· 5V DC external power supply via Type C USB port or rechargeable cr123 3.7v
· Blind Pixel Repairing
· Standby mode
· Compass
· Inclinometer
· Battery status indicator
· USB C-type port
· Manual focus front lens
· 4 years warranty on parts and labor
· Nitrogen purged
|
SUPER HOGSTER-R 35mm |
|
|
Optical Magnification, x |
2.9 |
|
Digital Multiplication |
2X, 3X, 4X |
|
Objective Lens system |
35mmF/1.1 |
|
Angular FOV at above Optical Magnification (horizontal x vertical), degrees |
7.5° x 5.7° |
|
Eye relief, mm |
40mm |
|
Focus range, yard |
1 to infinity |
|
Diopter Adjustment, D |
-5 ; +5 |
|
Reticle W/E adjustment value at a distance of 100m, cm |
0.67”/1.71 cm increment per pxl |
|
Core resolution, pxl |
384x288 |
|
Pixel pitch, µm |
12 |
|
Start-up time, min., sec. |
8 |
|
Thermal Sensitivity (NETD), mK |
<40 |
|
Display type and resolution, pxl |
1024x768 OLED |
|
Detection Range, yard (Target size: Running Hog L16 & H19), yard |
1100 |
|
Dimensions, in / mm |
7.7”x2.83”x2.36” / 195x72x60 |
|
Weight without mount and batteries, but with eye piece and lens cap, oz / g |
17.14 / 486 |
|
Power supply |
3V CR123 (two) or 3.7V rechargeable (two) or 5V DC |
|
Estimated battery life, hours |
4 for two 3V CR123 |
|
Operating temperature, typical, °F |
-14°F to +122°F |
|
Water intrusion |
IP67 |
|
Humidity, % |
up to 96% |
