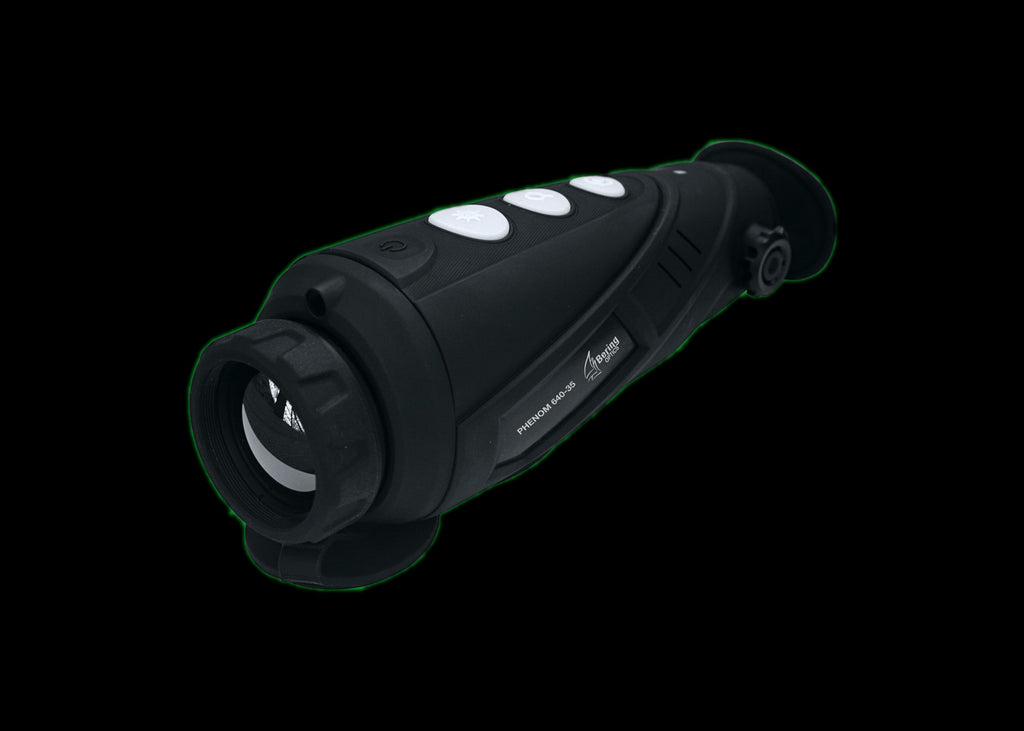

The Bering Optics PHENOM 640-35 handheld Thermal imager features premium, high sensitive Vanadium Oxide (VOx) 640x480pxl 12µm pixel pitch LWIR core with automatic shutter, HD OLED 1280x980pxl display and a 35mm Germanium Lens.
PHENOM 640-35 is capable detecting heat from generated by a vehicle at a distance of up to 2 miles away in any terrain, twilight or night time conditions. The device exceptional and unmatched performance makes it suitable for many tasks by demanding users in any field including hunting, patrolling, law enforcement, navigation, rescuing operations.
Specifications
| Product Modification |
PHENOM 640-35
|
| Product SKU# |
BE46236
|
| Optical Magnification, x |
2.0x
|
| Digital Magnification, x |
4.0x, 8.0x
|
| Objective lens system |
35mmF/1.0
|
| Angular FOV at 2.0x, degree |
17° x 13°
|
|
Eye relief, mm
|
14
|
|
|
Focus range, yds / m
|
2 / 0.6 to infinity
|
| Diopter setting, dpt |
-3 to +4
|
|
Core resolution, pxl
|
640 x 480
|
| Pixel pitch, µm |
12
|
|
Image refresh rate, Hz
|
50
|
|
Thermal Sensitivity (NETD), mK
|
< 50
|
| Display type and resolution, pxl |
OLED SXGA 1280x980
|
| Start-up time, max., sec. |
5
|
|
Object type and size, approx., ft² / m²
|
 8 / 0.75
|
 25.8 / 2.4
|
| Detection, approx., yds/m |
1475 / 1350
|
3500 / 3200
|
|
Recognition, approx., yds/m
|
385 / 350
|
875 / 800
|
|
Dimensions, in/ mm
|
7.32" x 2.6" x 2.6" / 186 x 65 x 65
|
| Weight, approx., oz/g |
14.1 / 400
|
| Power supply standard |
Li-on cell rechargeable battery
|
| External DC Input |
5V DC/2A (Micro USB)
|
| Est. battery operation on single charge, hour |
Up to 5
|
| Operating temperature, °F/°С |
-4 to +122 / -20 to +50
|
| Water intrusion |
IP67
|
| Humidity, % |
Up tо 93%
|
|
In Box
IN THE BOX
- PHENOM 640-35 Thermal Monocular
- Front lens protective cap
- Soft carrying pouch
- Rubber eyecup
- Battery recharge cable with Mini USB port connector
- Video cable
- Lens cleaning cloth
- Instruction manual
