Save $404.00
Bering OpticsSKU: BE46150
No reviews
Price:
$4,895.00 $5,299.00

Shipping calculated at checkout

Pickup available at Feral Texas Outdoors

Usually ready in 4 hours

Description

UPER YOTER C Long-Range Thermal Clip-On, 50mm Ge Lens, VOx 640x480 core resolution, 50Hz refresh rate; converts to 4.0x handheld thermal scanner; compatible with the Throw Level snap-on adaptors (see ACCESSORIES FOR CLIP-ON ATTACHMENTS) and QR mount.

Superior for hogs, coyote and predator control at medium- and long-range distances
Rugged, compact and lightweight
Excellent performer in high humidity conditions
Mountable in front of scopes with lens diameters ranging from 24mm to 64mm
Optimal with 2.0x to 16.0x day time scopes
Can be used with heavy recoil weapons, including 30-06 Spring Mag., .300 H&H, .375 H&H
Convertible to the 4.0x - 16.0x hand held Thermal Scanner when coupled with a detachable eye piece
12µm Vanadium Oxide (VOx) 640x480 core with Manual calibration
Switchable image polarity: White Hot / Black Hot / Red Hot / Colored Hot
Manual control of the image sharpness and screen brightness
Ability to center the screen with respect to the viewed reticle
Ability to save zeroing data of 4 gun profiles
Automatically switches menu functions and native magnification when changing an eyepieces.
Precise internal lens focusing mechanism
High resolution 1024x768 OLED Display

Standby mode
5V DC external power supply option via a Type-C USB port
Blind Pixel repair tool
Standby mode
Digital Compass
Inclinometer
Battery status indicator
Nitrogen purged
Video out
4 years warranty

The Bering Optics SUPER YOTER C™ Universal Thermal Clip-on is built with the advanced 12µm Vanadium Oxide (VOx) 640x480 core and a superb 50mm Germanium Lens. This unit is superior for predator control at medium- and long-range distances. Aimed at the growing coyote and predator hunting market, the product is exceptionally lightweight and compact.

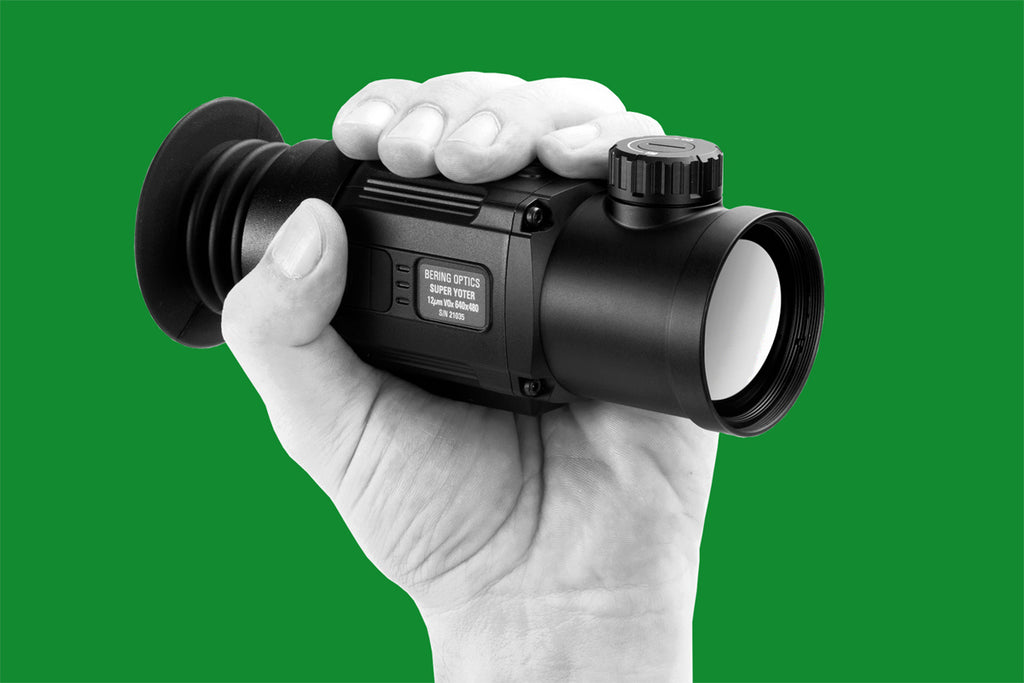

SUPER YOTER C™ is a versatile device that comes with two eyepieces, the second detachable eyepiece enables converting the clip-on into the 4.0x magnification hand-held device. The handheld uses a digital zoom of up to 16.0x, making it ideal for scouting and detection tasks.

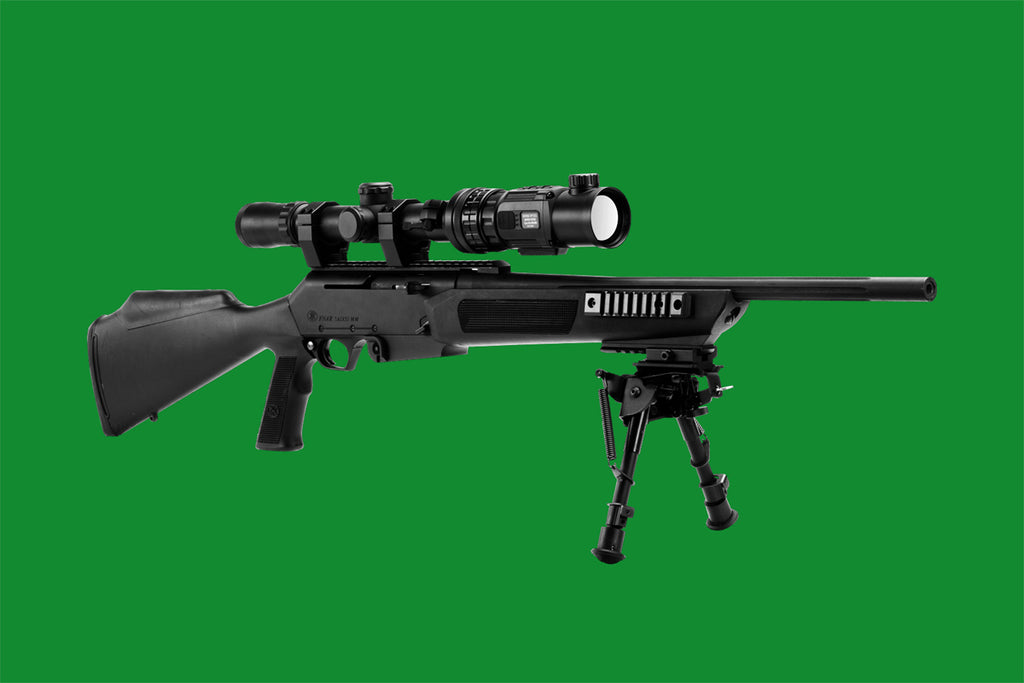

The SUPER YOTER C™ clip-on can be mounted in front of the daytime time optic using a custom-sized snap-on mounting adaptor. It can also be mounted in-line using a quick-detach mount (BE80990) and paired with tactical sights, where the round-shaped snap-on adaptor is not a workable option.

The device features only three buttons to operate and navigate functions. The device menu options are plentiful while were optimized to make the user experience efficient and frustration free.

The clip-on is nitrogen-purged, is water, dust and shock-rated for .338 Win Mag., 30-06 Spring Mag., .300 H&H and other high recoil calibers.

The SUPER YOTER C™ 640x480 Thermal Clip-on is action ready in virtually any light conditions and environments, including environmental conditions when dust, haze, fog, and high humidity are present.



Specifications
Optical Magnification in the Clip-on mode, X

1.0x
Digital Magnification, x

1X, 2X, 4X
Optical Magnification in the Thermal Scanner mode, x

4.0x, 8.0x, 16.0x

Objective Lens system

50mmF/1.0

Angular FOV at 1.0x (horizontal x vertical), degree

8.8° x 7.0°
Eye relief, mm (hand held mode / clip-on mode)

20 / 30

Exit Pupil, mm (hand held mode / clip-on mode)

6 / 25
Diopter Adjustment, D (handheld scanner mode only)

-5: +5

Core resolution, pxl

640x480

Pixel pitch, µm

12
Image refresh rate, Hz

50
Thermal Sensitivity (NETD), mK

≤ 50
Display type and resolution, pxl

OLED 1024x768
Start-up time, min., sec.

5

Object type and size, approx., ft² / m²

8 / 0.75

25.8 / 2.4

Detection, approx.*, yds / m

2500 / 2290

3300 / 3000

Recognition, approx.*, yds / m

450 / 400

800 / 730

Identification, approx.*, yds / m

250 / 300

550 / 500

Dimensions w/out adaptor, in / mm (hand held mode / clip-on mode)

6.61"x2.72"x2.95" / 168x69x75
7.10"x2.72"x2.95" / 180x69x75
Weight, approx., oz/g (hand held mode / clip-on mode)

15.6 / 442 /
18.4 / 522

Power supply standard

CR123 (two)
Estimated battery life, hour

up to 4
Operating temperature, °F/°С

-4° to +122° / -20° to +50°
Water intrusion

IP66
Humidity, %

Up to 98%


Optional accessories
Light Suppressor with Rubber Eye Guard BE80910
QR Weapon Mount with 2 screws BE80990
SUPER YOTER C is compatible with the throw level adaptors BE809XX*. The below table shows the most popular diameters, however, the custom-sized adaptor can be special ordered.
SKU- Diameter*, mm
BE80930- 30
BE80936- 36
BE80940- 40
BE80942- 42
BE80946- 46
BE80948- 48
BE80950- 50
BE80952- 52		 BE80957- 57
BE80958- 58
BE80960- 60
BE80962- 62
BE80964- 64
BE80968- 68
BE80972- 72
BE80980- 80



In Box
  • SUPER YOTER C™ VOx 640x480 Thermal Clip-on
  • QD Weapon Mount with 2 screws BE80990 or Throw Lever Adapter BE809XX
  • Front lens flip-up protective cap
  • 3.0x - 12.0x Detachable eye piece with a rubber eye guard
  • Detachable Clip-on mode connector piece
  • Soft Carrying Case
  • Lens Cleaning Cloth
  • Instruction manual
  • Video-out Type C USB cable
  • Two CR123 Batteries
