Description
Get a FREE Tactical ABS Plastic adjustable helmet with purchase of a StingIR 640 while supplies last. *Free helmet is the similar as in the picture. Hardware is metal. $480 value
The AGM StingIR 640 miniature handheld observational thermal monocular is equipped with a 640×480, 12 micron, sub-25mK thermal detector and high-resolution OLED display. The StingIR is a full-featured unit, weighing less than 7 ounces/200 grams. The monocular can be helmet mounted for hands-free operations, or used as a standalone handheld device. The SingIR with included weapon mounts can also be used as a stand-alone thermal scope, or thermal clip-on, making it one of our most versatile offerings.
Other features include a digital compass, inclinometer, up to 8x digital zoom and the ability to be powered by two types of replaceable CR123 or 18650 batteries. The high-sensitivity built-in thermal detector provides you with a clear view in any lighting condition. The monocular is suitable for security enforcement, outdoor hunting, wilderness exploration, search and rescue and other fields.
Warning: California's Proposition 65
- 12μm high-sensitivity detector

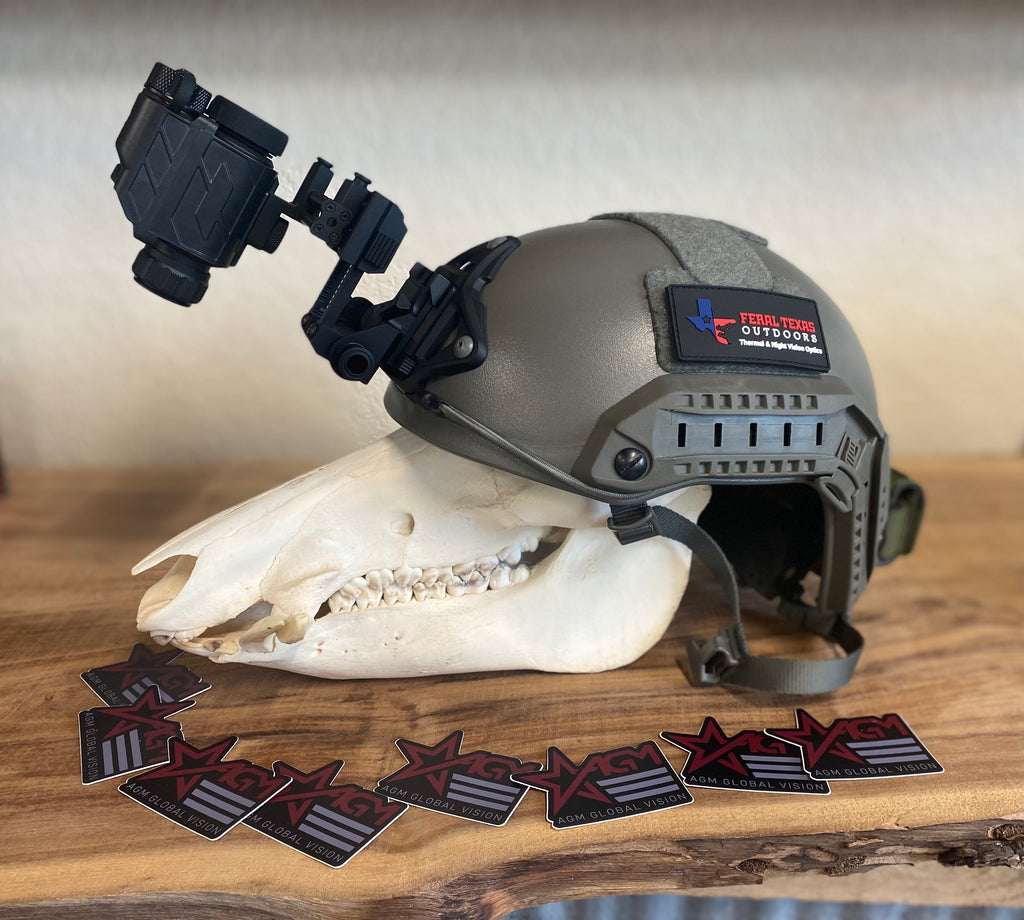

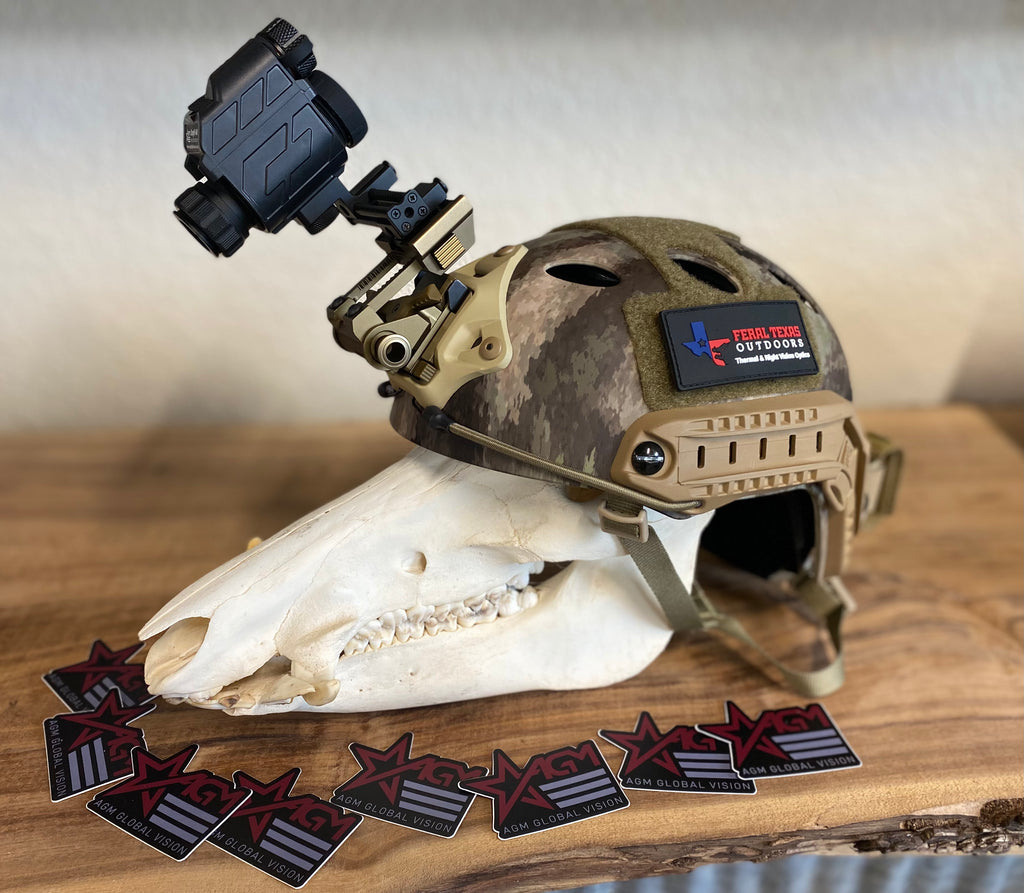

- Head- or helmet-mountable for hands-free usage
- Compact, sturdy design
- High-resolution OLED display
- Multiple thermal image palettes
- Device supports up to 8× digital zoom
- Powered by one CR123A/RCR123 or 18650 Lithium battery
- Up to 5 hours continuous running
- Digital compass and inclinometer
- Type-C interface
- 5-Year warranty
Refresh rate: 50 Hz
Resolution: 640×480
FOV: 16.3° × 12.3° (H × V)
- Monocular
- Helmet adapter bracket
- Picatinny mount
- Clip-on mount
- 18650 battery cap
- USB Type-C cable
- Operation manual
- Packing Case
SPECIFICATIONS
Digital Compass
Yes
Palettes
WhiteHot, BlackHot, OrangeHot, Rainbow
Exit Pupil Diameter
12 mm
Magnification
1x - 8x
Detector type
12 μm Uncooled VOx Microbolometer
FFC (Flat Field Correction)
Auto (1 to 10 min. interval) or Manual
Refresh rate
50 Hz
Resolution
640×480
Detection Range (6' object)
1200 m
Field of view (H × X)
16.3° × 12.3° (H × V)
Digital zoom
1×, 2×, 4×, 6×, 8×
Diopter adjustment range
-5 to +2 dpt
Monitor
1024×768 OLED
Video output
PAL video output via USB port
Battery Type
One CR123A(3V) or RCR123(3.7V) or 18650(4.2V)
Battery Operating Time
CR123A - up to 2.5 hours / RCR123 - up to 1.5 hours / 18650 - up to 4.5 hours
External power supply
5 VDC/2 A, 1.5 W
Operating Temperature Range
-20°C to 50°C (-4°F to 122°F)
Weight
220 g (7.8 oz)
Overall Dimensions
140 × 70 × 50 mm (5.5 × 2.7 × 2.0 in)
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
