AGM StingIR 640

Write a review
| Ask a question
  • Sale
  • $4,195.00
  • Regular price $4,405.00
Shipping calculated at checkout.


AGM StingIR 640 is a 4-IN-1 UNIT

HELMET MOUNT - WEAPON MOUNT - CLIPON- HANDHELD

*Next shipment coming by late June

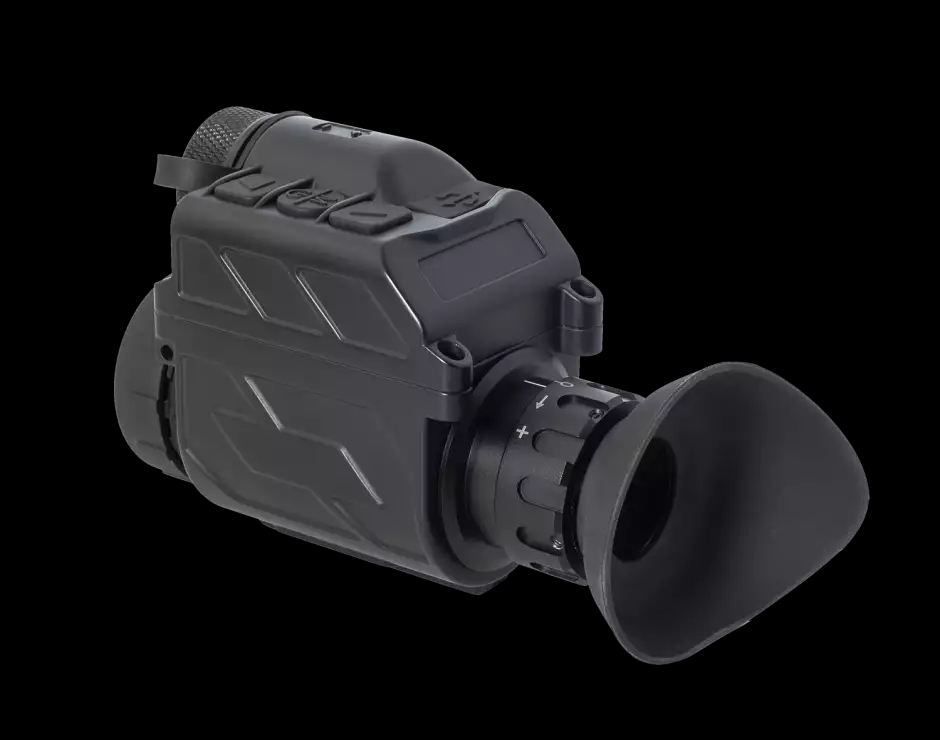

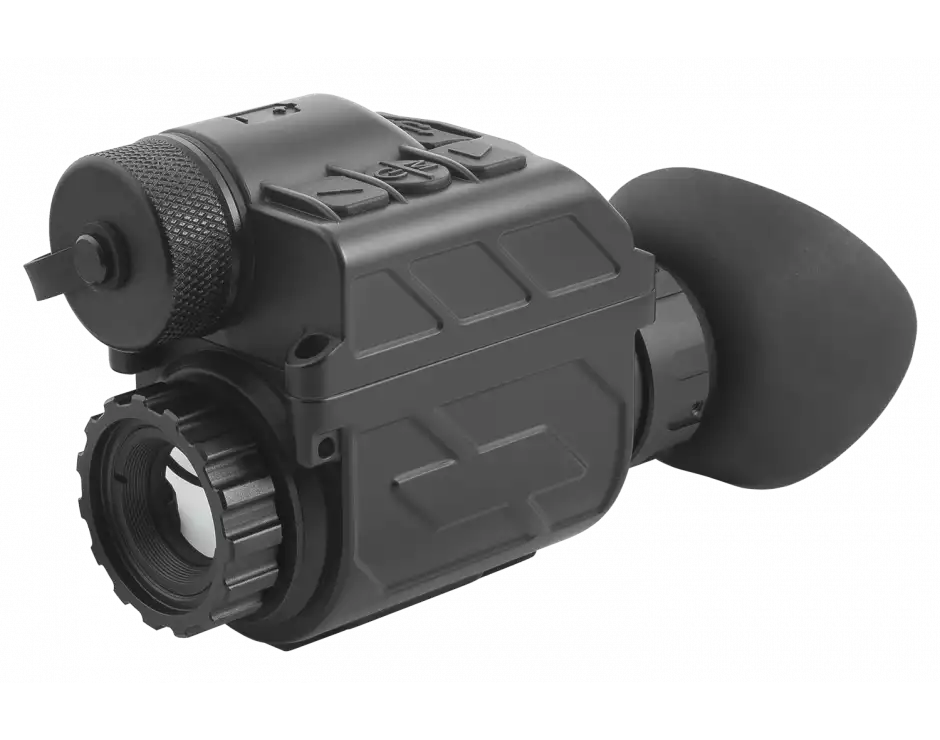

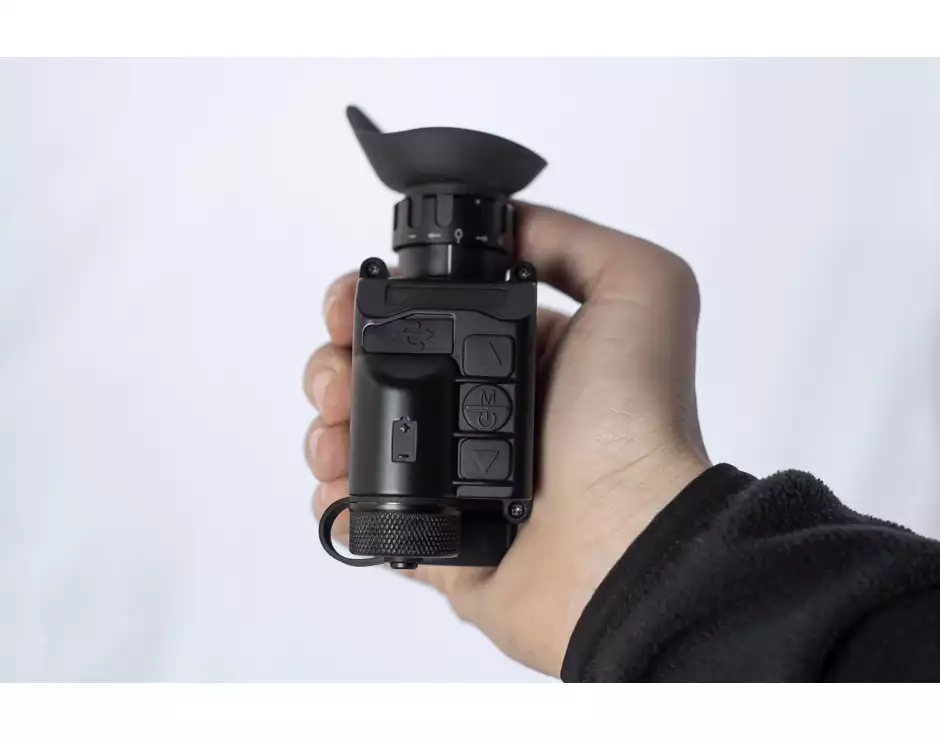

The AGM StingIR miniature handheld observational thermal monocular is equipped with 384×288 or 640×480 12μm high-sensitivity infrared detector and high-resolution OLED display. It supports functions of observation, digital compass, inclinometer, and so on. The highsensitivity built-in thermal detector provides you with clear view even in total darkness. The AGM StingIR is a full-featured unit, weighing less than 7 ounces/200 grams. The monocular can be used as a handheld device, or mounted on the head harness or helmets for hands-free operations. The monocular is suitable for security enforcement, outdoor hunting, wilderness exploration, search and rescue and other fields.

Warning: California's Proposition 65

  • 12μm high-sensitivity detector
  • 384×288 resolution

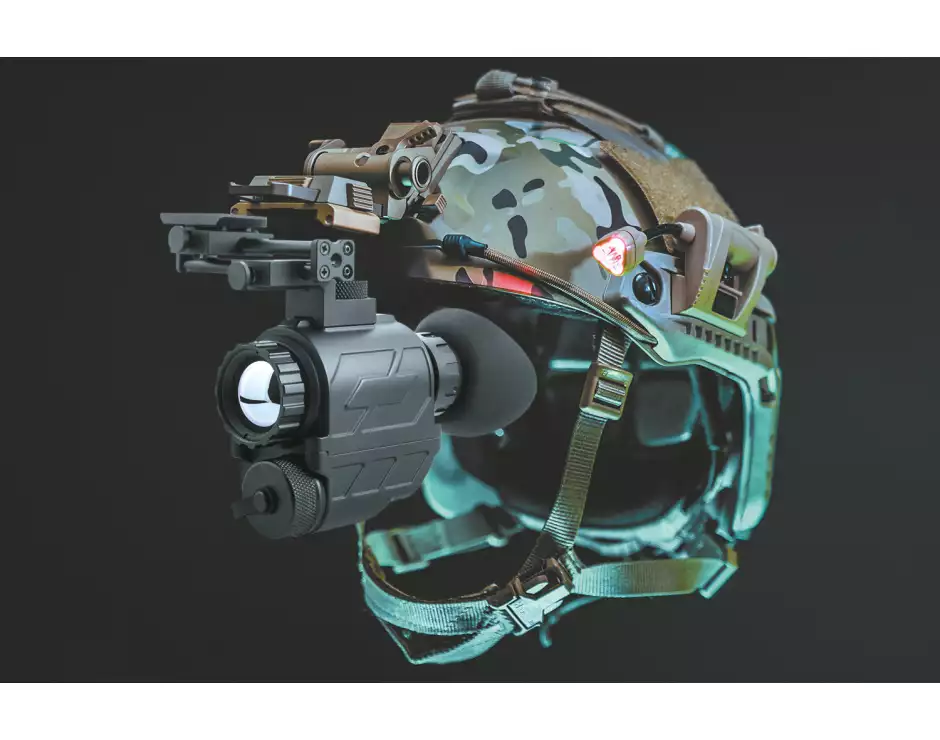

  • Head- or helmet-mountable for hands-free usage
  • Compact, sturdy design
  • High-resolution OLED display
  • Multiple thermal image palettes
  • Device supports up to 8× digital zoom
  • Powered by one CR123A/RCR123 or 18650 Lithium battery
  • Up to 5 hours continuous running
  • Digital compass and inclinometer
  • Type-C interface
  • Limited 3-year warranty
CHARACTERISTICS

Refresh rate: 50 Hz

Resolution: 384x288

FOV: 16.3° × 12.3° (H × V)

PACKAGE INCLUDES
  • Monocular
  • Helmet adapter bracket
  • 18650 battery cap
  • USB Type-C cable
  • Operation manual
  • Hard case

SPECIFICATIONS

Digital Compass

Yes

Palettes

WhiteHot, BlackHot, OrangeHot, Rainbow

Exit Pupil Diameter

12 mm

Detector type

12 μm Uncooled VOx Microbolometer

FFC (Flat Field Correction)

Refresh rate

50 Hz

Resolution

640×480

Detection Range

1200 m

Field of view (H × X)

16.3° × 12.3° (H × V)

Digital zoom

1×, 2×, 4×, 6×, 8×

Diopter adjustment range

-5 to +2 dpt

Monitor

1024×768 OLED

Video output

PAL video output via USB port

Battery Type

One CR123A(3V) or RCR123(3.7V) or 18650(4.2V)

Battery Operating Time

CR123A - up to 2.5 hours / RCR123 - up to 1.5 hours / 18650 - up to 4.5 hours

External power supply

5 VDC/2 A, 1.5 W

Operating Temperature Range

-20°C to 50°C (-4°F to 122°F)

Weight

220 g (7.8 oz)

Overall Dimensions

140 × 70 × 50 mm (5.5 × 2.7 × 2.0 in)


User Manual
