AGM Rattler TS35

  • Sale
  • Regular price $2,495.00


AGM Rattler TS35

Immediately available and in stock

CHARACTERISTICS

Detector type: Vanadium Oxide Uncooled Focal Plane Arrays

Refresh rate: 50 Hz

Resolution: 384x288

FOV: 14.9° x 11.2°



DESCRIPTION AND FEATURES


The AGM Rattler TS25-384 and Rattler TS35-384 are the compact thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for your needs where 25 mm lens designed for short range shooting, while the 35 mm lens model will be great for medium range missions.

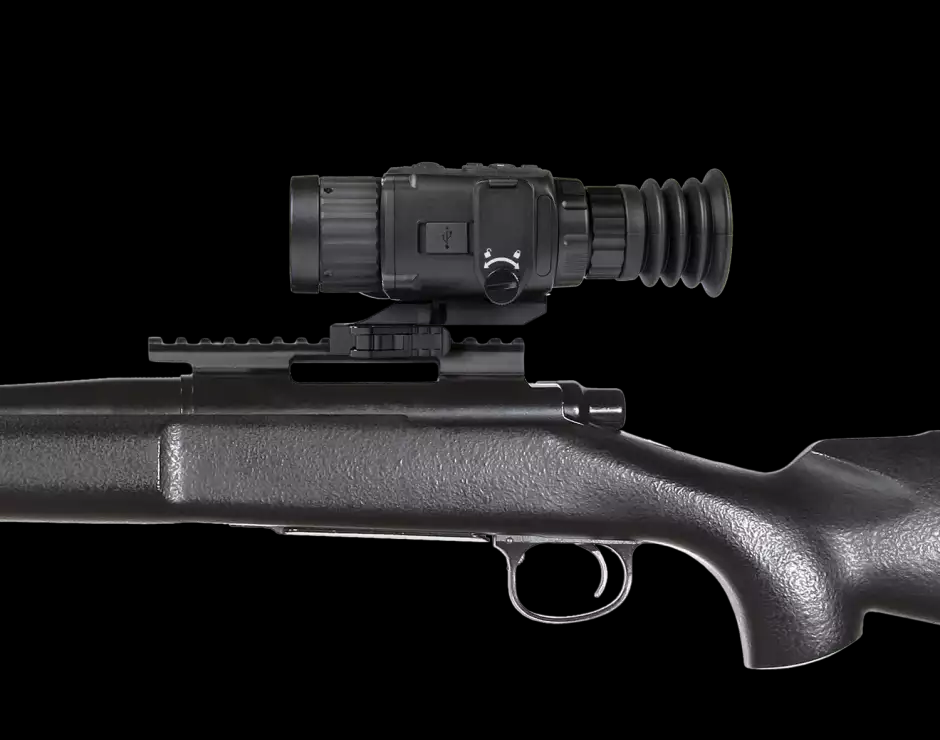

Thermal image riflescope has 384×288 thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.
Powered with two CR123 batteries the AGM Rattler TS-384 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.

  • 384 × 288 thermal resolution, high sensitivity detector
  • Image processing technology: Adaptive AGC, DDE, 3D DNR
  • 1024 × 768 resolution 0.39-inch OLED display
  • 8x digital zoom
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Supports distance measurement
  • Adjustable color palettes
  • Wi-Fi data transmission
  • Waterproof, shockproof
  • Up to 4.5 hours continuous working
  • External power supply capability
  • Limited 3-year warranty

SPECIFICATIONS


Shock and vibration

750 g/ms

Detector type

17μm, Uncooled, 50Hz

Standby Mode

Yes

Resolution

384x288

Detection Range

Max. 1235 m

Snapshot

Yes

Lens system

35 mm; F/1.0

Optical magnification

2.14x

Field of view (H × X)

10.0° x 8.0°

Digital zoom

2x, 4x, 8x, PIP

Eye relief

45 mm

Imaging palettes

Jungle, Recognition

Display

0.39-inch, OLED, 1024 × 768

Storage

Built-in EMMC (16 GB)

Record Video

Yes

Battery Type

Two CR123

Wi-Fi

Yes

Battery Life (Operating)

Up to 4.5 hr

External power supply

5V USB

Operating Temperature Range

-20°C to +55°C (-4°F to +131°F)

Degree of Protection

IP67

Weight

0.41 kg ( 0.91 lb)

Overall Dimensions

187.2 × 62.5 × 59.2 mm (7.37 × 2.46 × 2.33 in)
