Please contact us for availability
Image Intensifier Tube: Gen 2+ "Level 2"
Lens System: 27 mm, F/1.3
DESCRIPTION AND FEATURES
The AGM NVG-40 is a dual-channel night vision system. With a 40° field of view, it provides a large visual field without needing to move the binoculars. The NVG-40 uses advanced multi-coated optics and is built to last with a compact composite housing. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

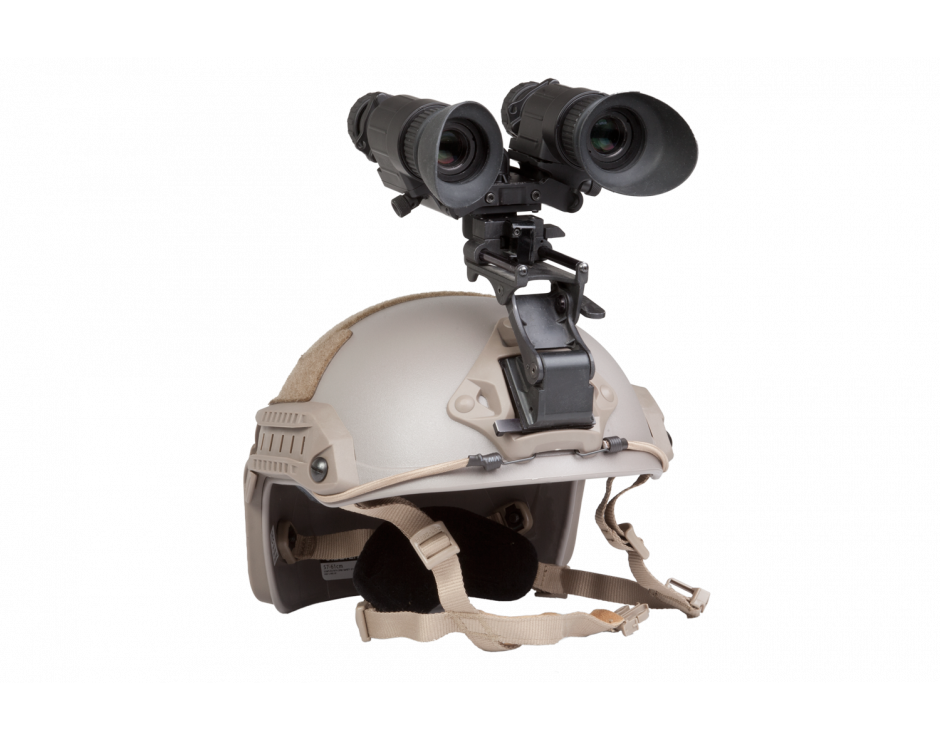

For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.
NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
- Redundant dual-tube design
- True stereoscopic vision
- Lightweight & compact
- Head or helmet mountable for hands-free operation
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Utilizes single CR123A lithium or AA battery
- Limited 3-year warranty
Image Intensifier Tube
Gen 2+ "Level 2"
Field of view cleanness by zone
Gen 2 IIT NL2 is the second-best quality offered by AGM, very limited number of spots in Zone 1.
27 mm, F/1.3
0.25 m to Infinity
-6 to +2 dpt
Low Battery IR On Excessive Light Conditions
Yes; Two power levels
Manual Gain Control
Bright Light Cut-Off
Automatic Shut-Off System
One CR123A (3V) or AA (1.5 V)
Battery Life (Operating)
Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
645 g (1.42 lbs)
115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)
Night Vision Goggles, Goggle Kit, Soft Carrying Case, Lens Cloth, Battery Adapter, User Manual
